Vehicle Speed Sensor: Construction

The speed sensor mainly consists of a Hall IC, magnet ring, driven shaft and spring.

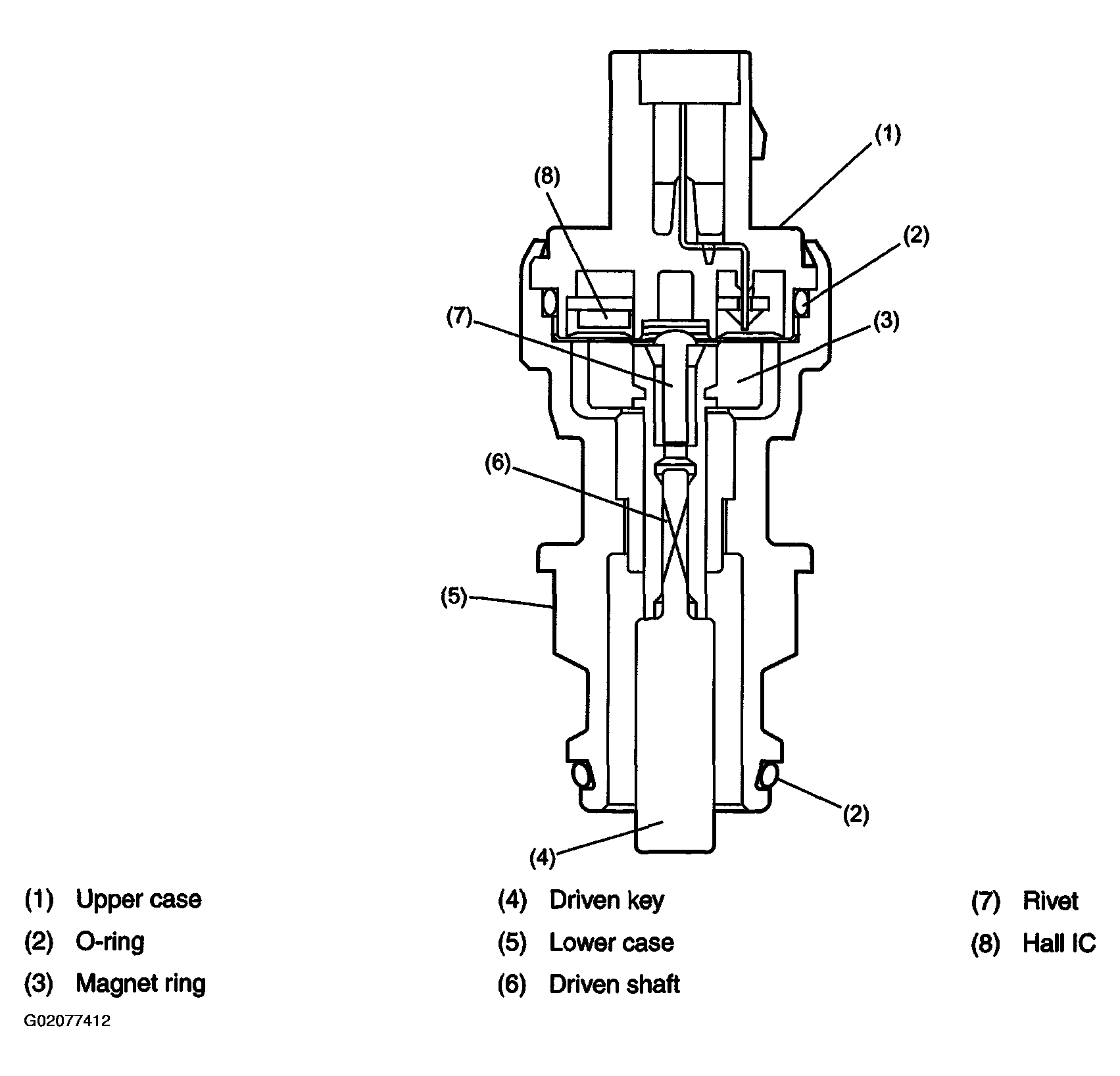

Fig 1: Identifying Construction Of Vehicle Speed Sensor
G02077412Courtesy of SUBARU OF AMERICA, INC.
