Home >> Subaru >> 2003 >> Outback Base, 4D Wagon, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted System (Power Steering) >> General Diagnostic Table >> Inspection >> Notes

General Diagnostic Table: Inspection: Notes

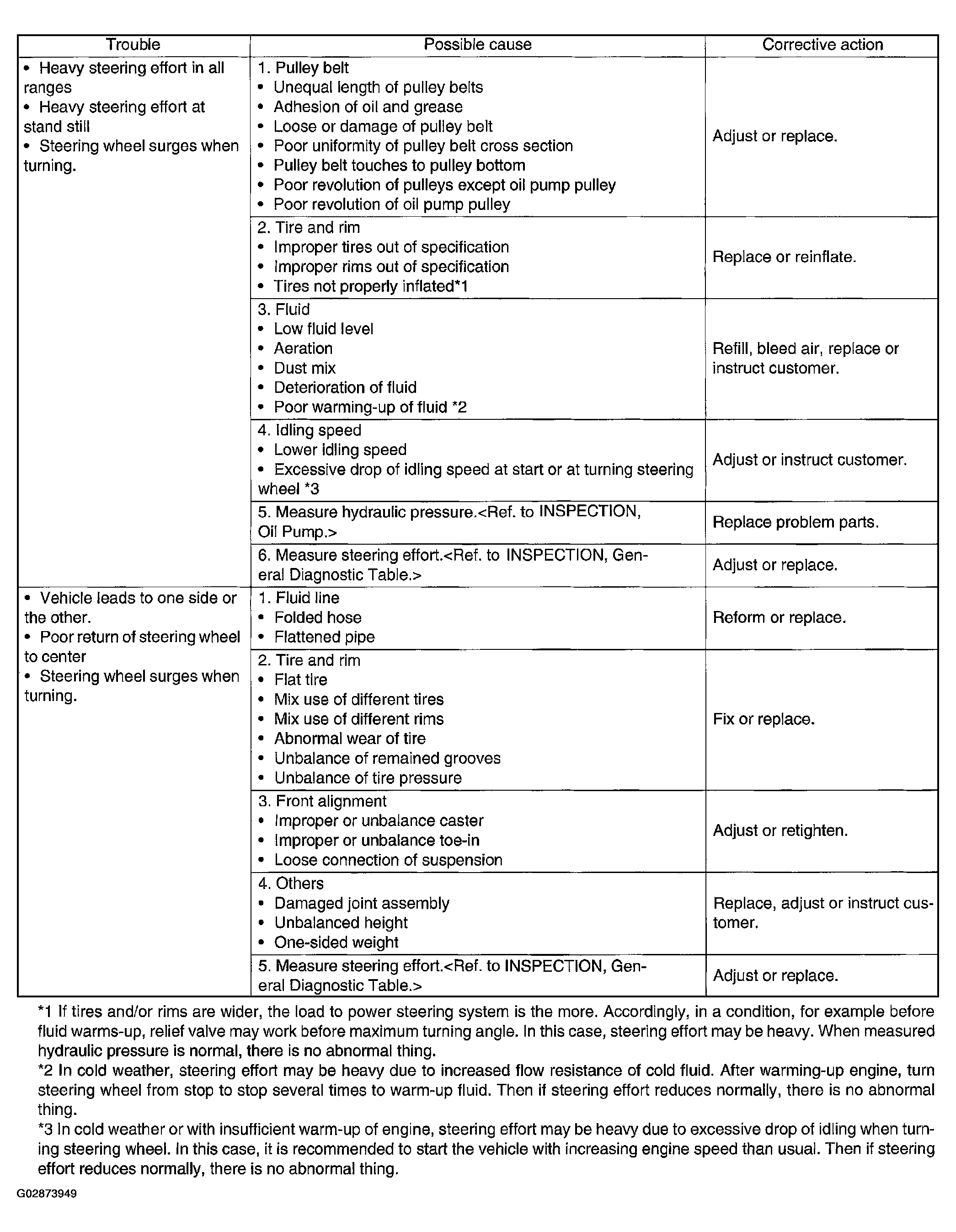

Fig 1: General Diagnostic Inspection Chart

G02873949

Courtesy of SUBARU OF AMERICA, INC.
