Power Assisted System (Power Steering): General Description: Specifications

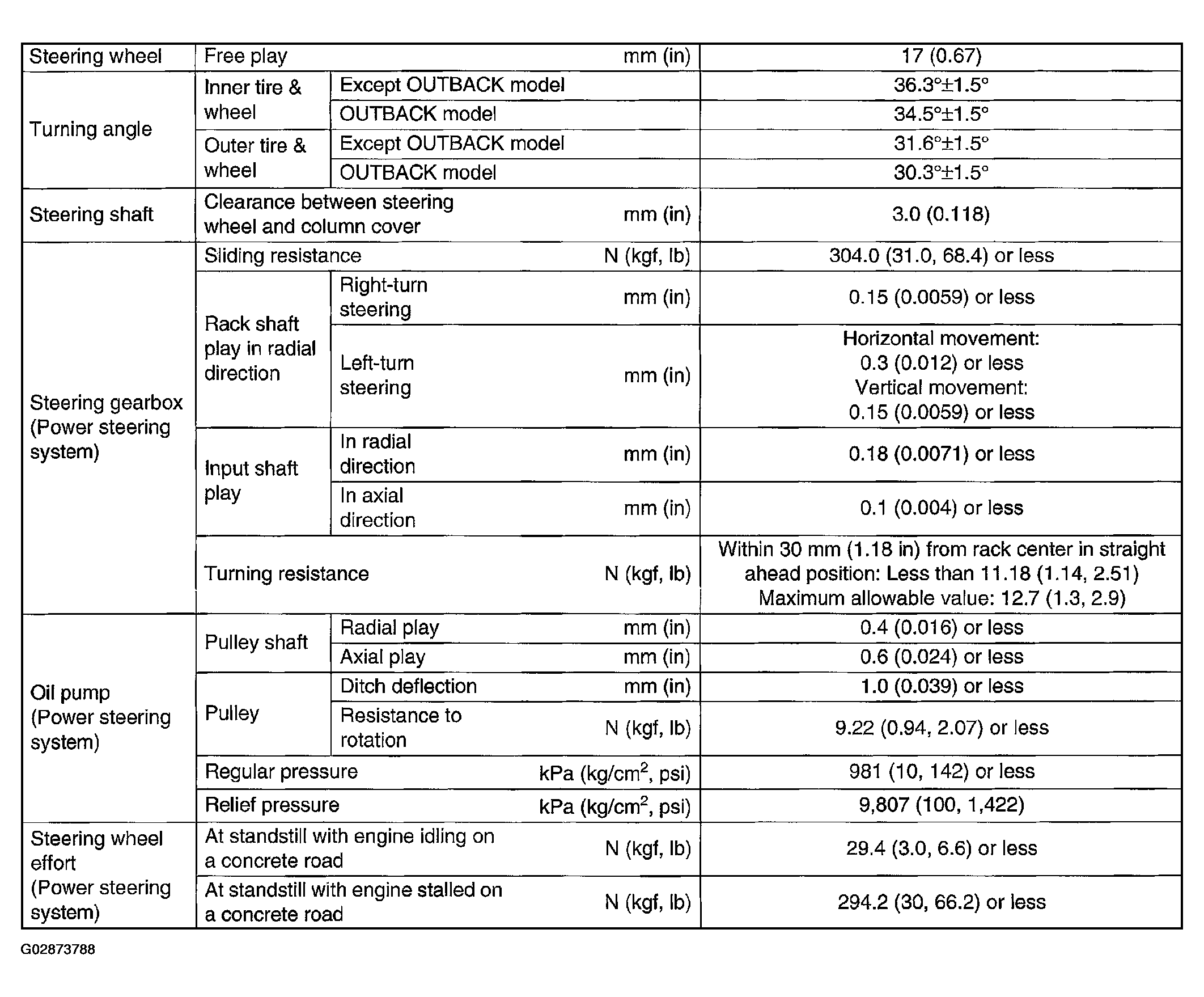

Fig 1: Power Assisted System (Power Steering) Specifications Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

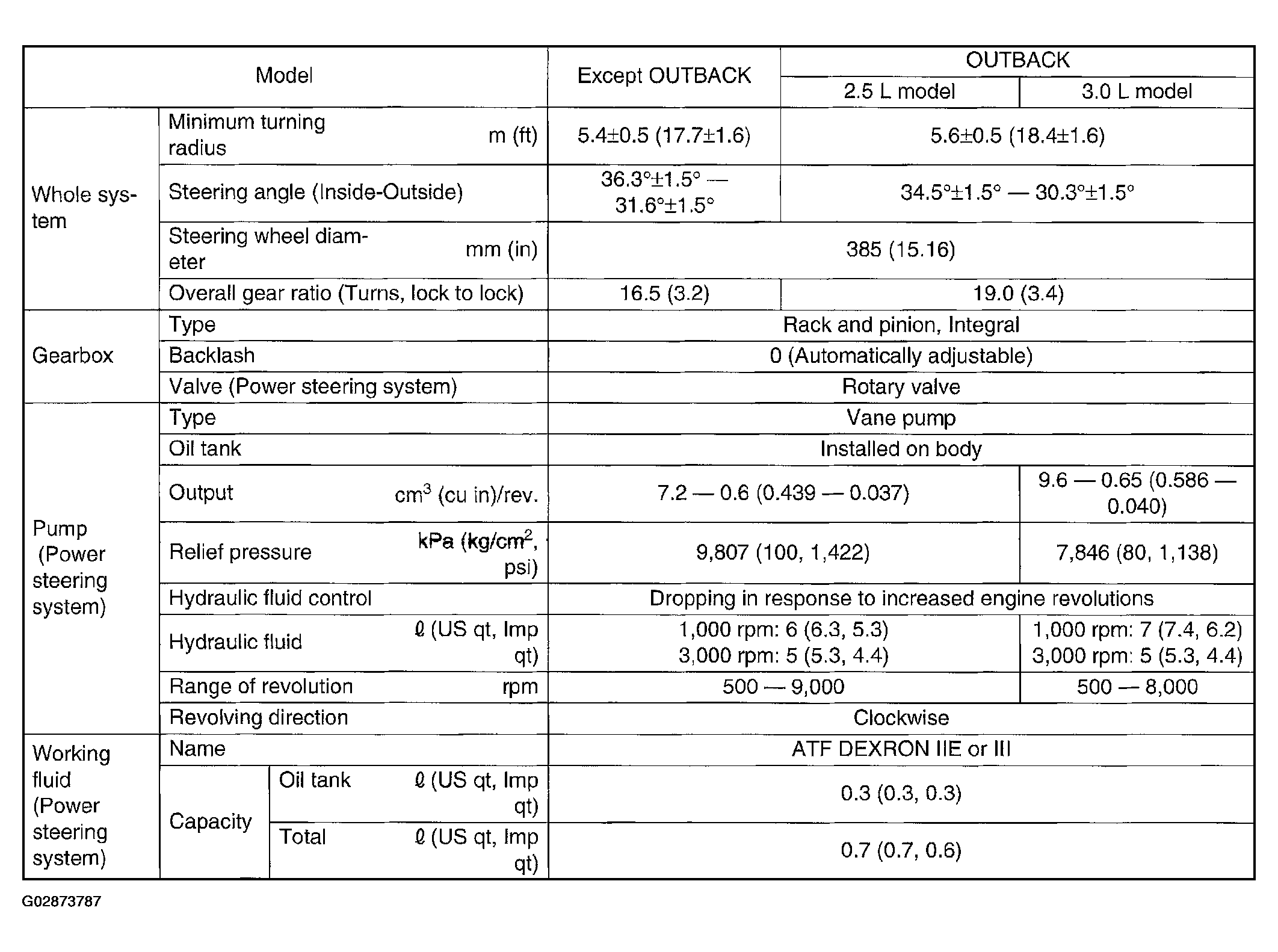

Fig 2: Power Assisted System (Power Steering) Specifications Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Recommended Power Steering Fluid Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.

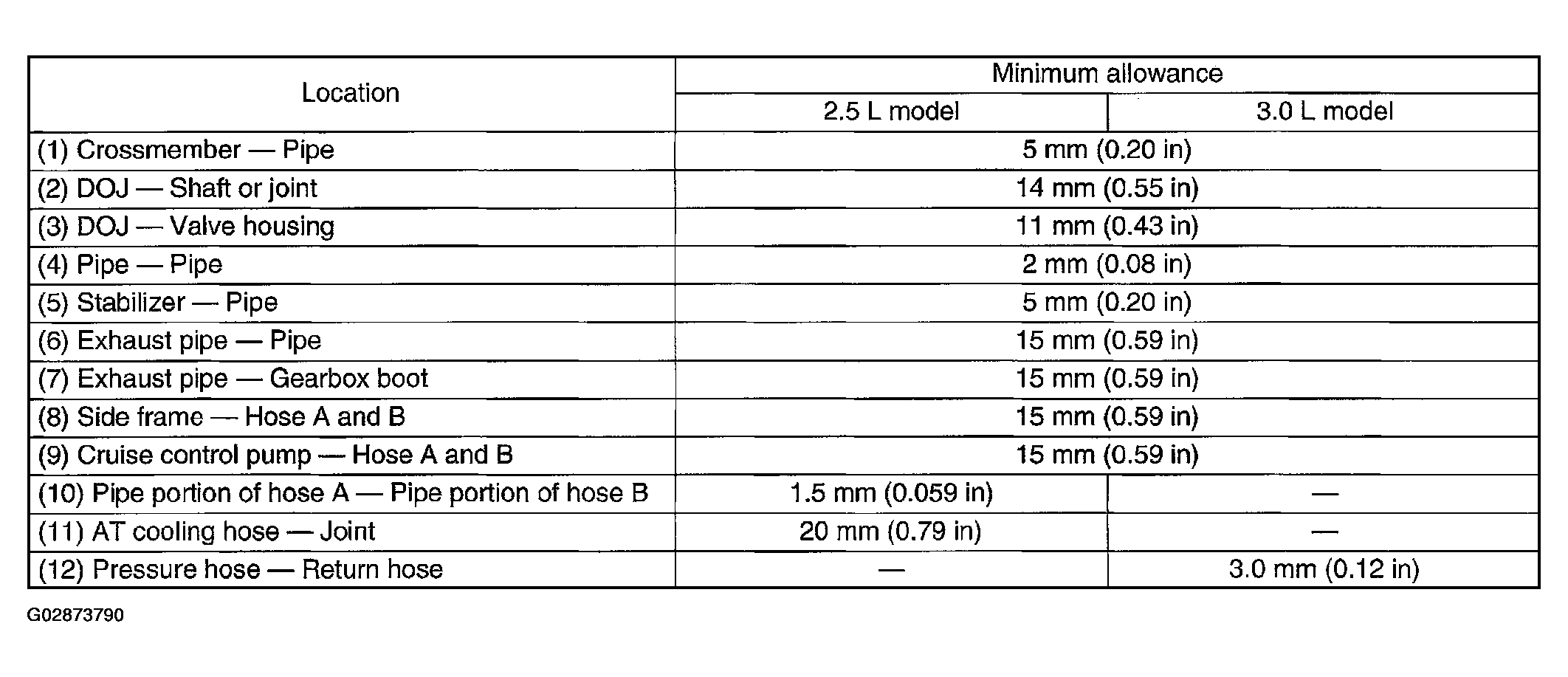

Fig 4: Clearances Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

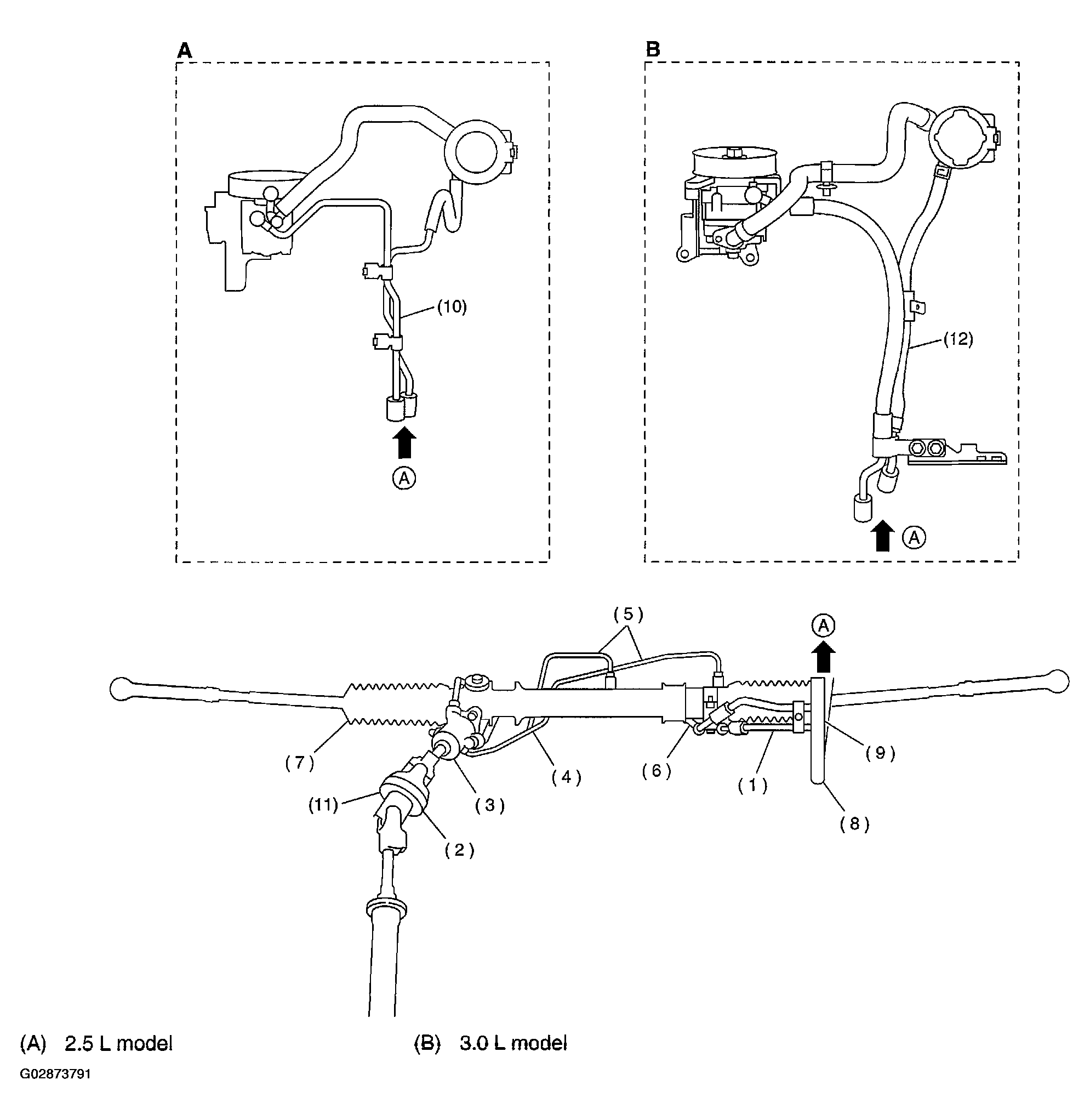

Fig 5: Identifying Clearances

Courtesy of SUBARU OF AMERICA, INC.
