Power Assisted System (Power Steering)
>>
General Description
>>
Component
>>
Power Assisted System
Power Assisted System

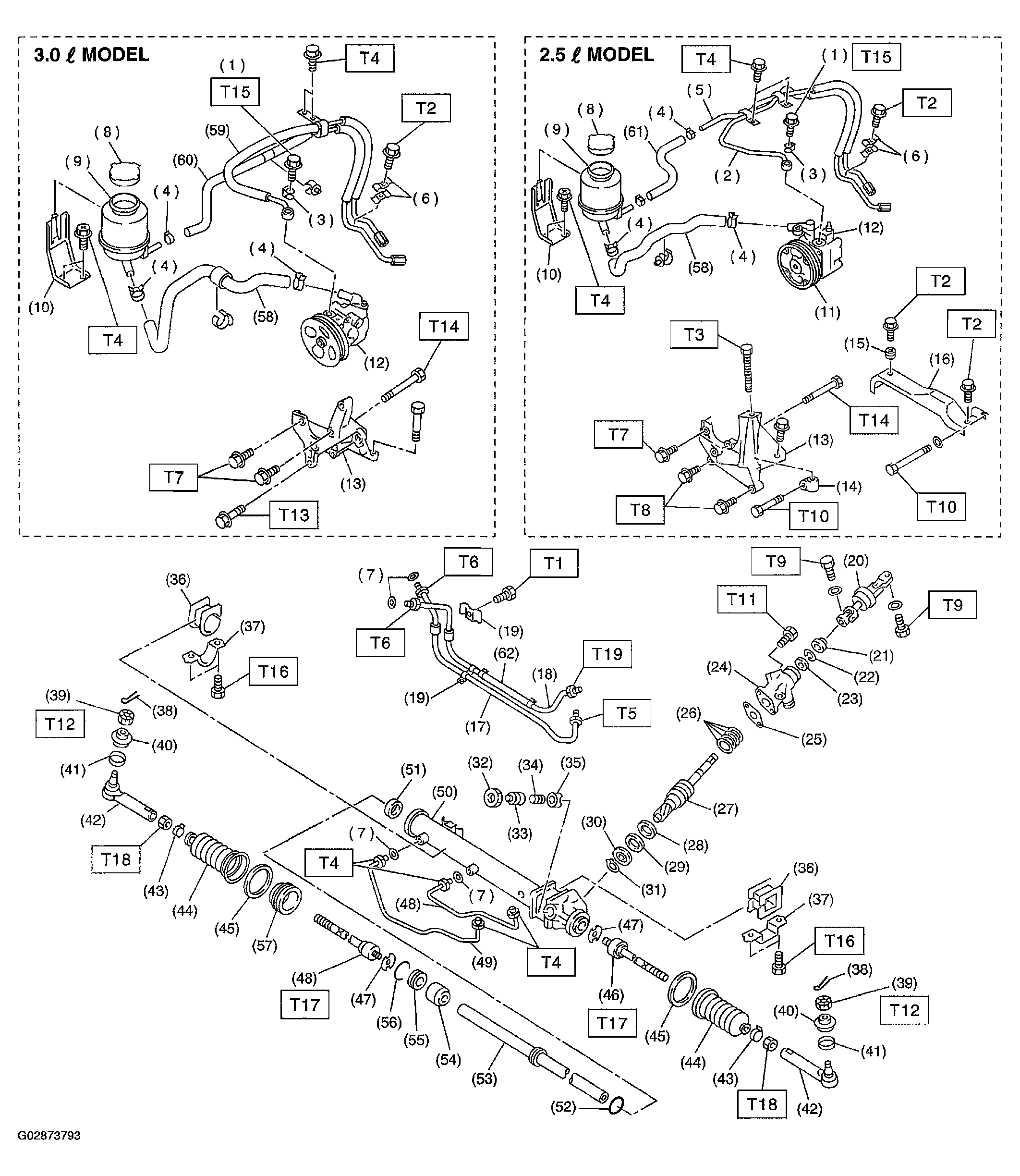

Fig 1: Exploded View Of Power Assisted System (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

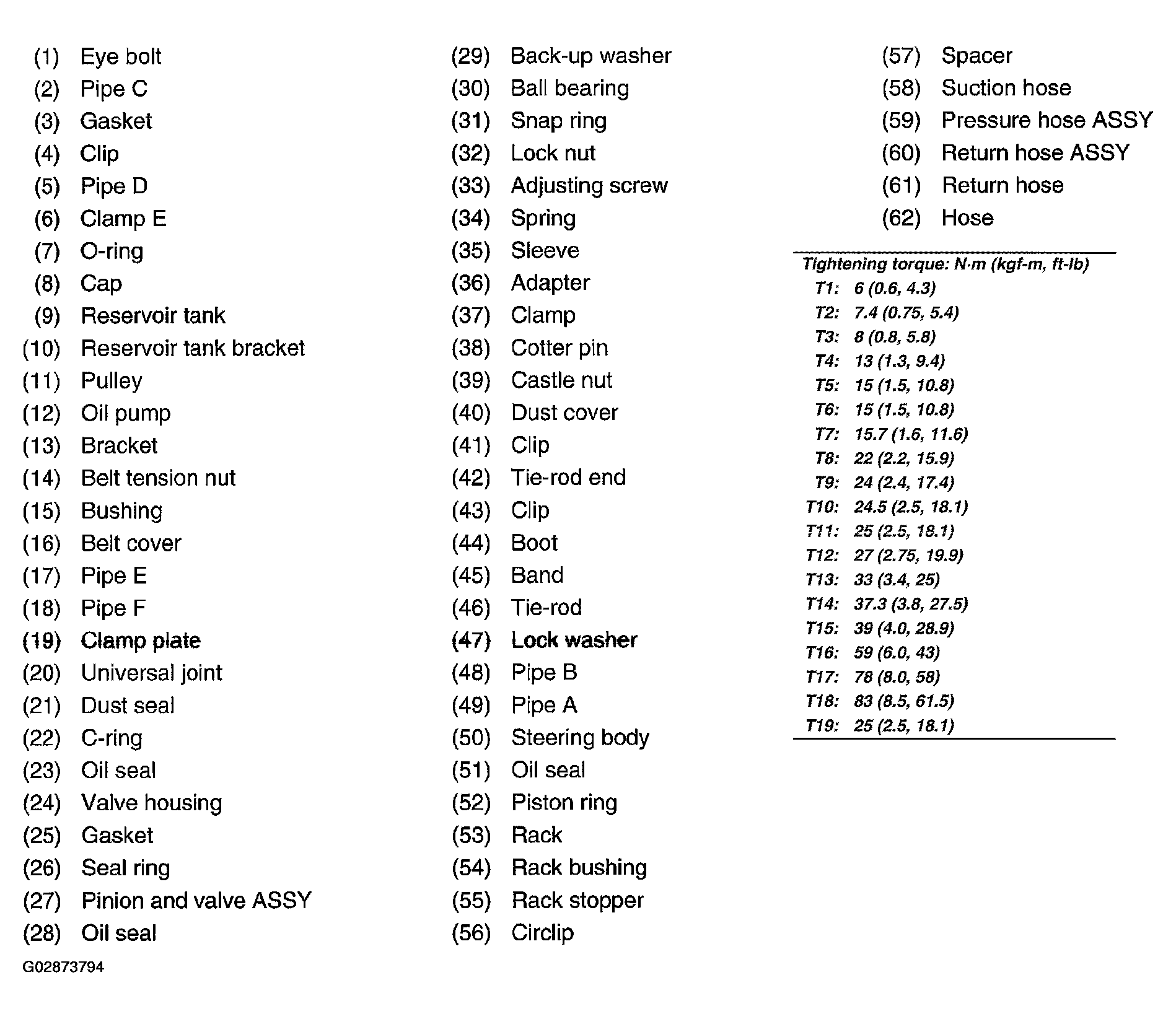

Fig 2: Exploded View Of Power Assisted System (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
