OEM General Information: Specifications: Pickup: Electrical

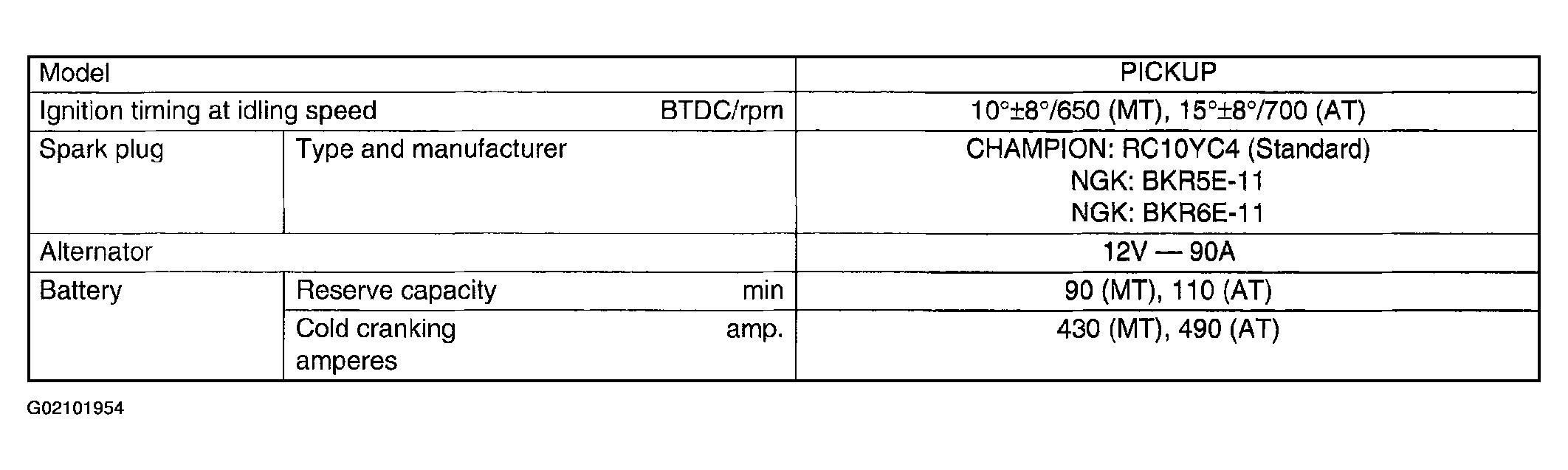

Fig 1: Electrical Specification Chart

G02101954

Courtesy of SUBARU OF AMERICA, INC.
