Warning And Indicator Lights

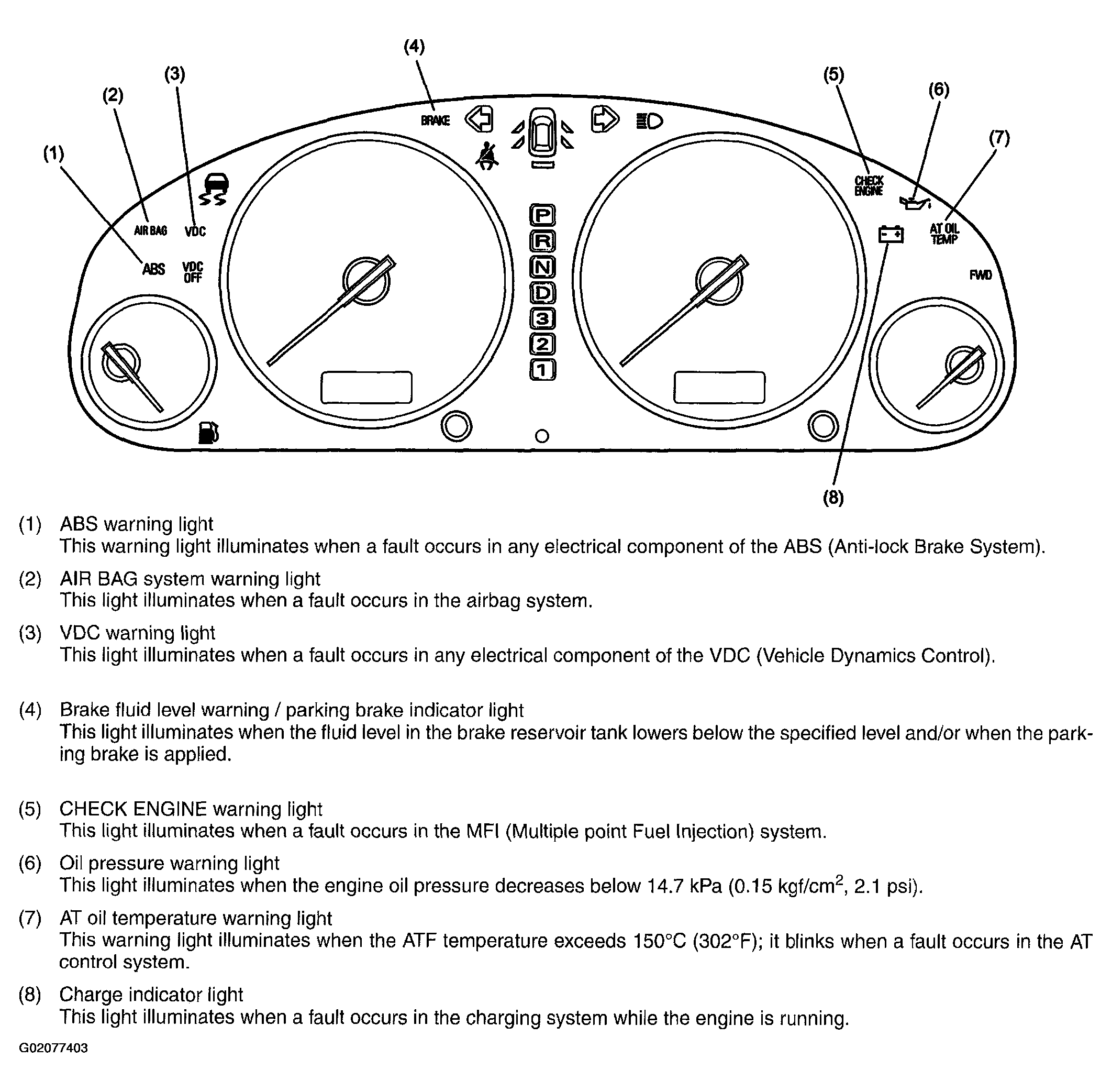

Fig 1: Identifying Combination Meter Warning And Indicator Lights

Courtesy of SUBARU OF AMERICA, INC.

If everything is normal, the warning and indicator lights should be ON or OFF as shown below according to ignition switch positions.

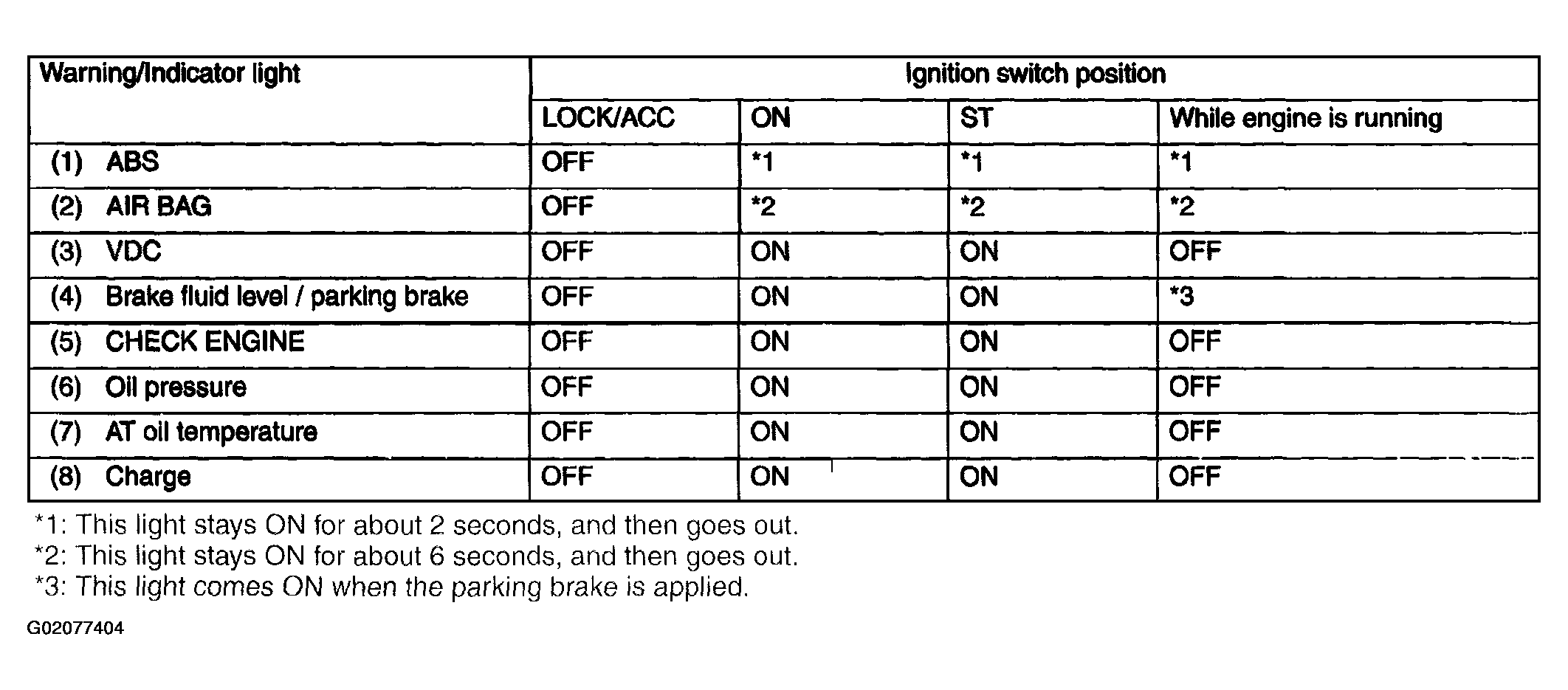

Fig 2: Ignition Switch Positions Table

Courtesy of SUBARU OF AMERICA, INC.
