Telltale (Graphic Monitor)

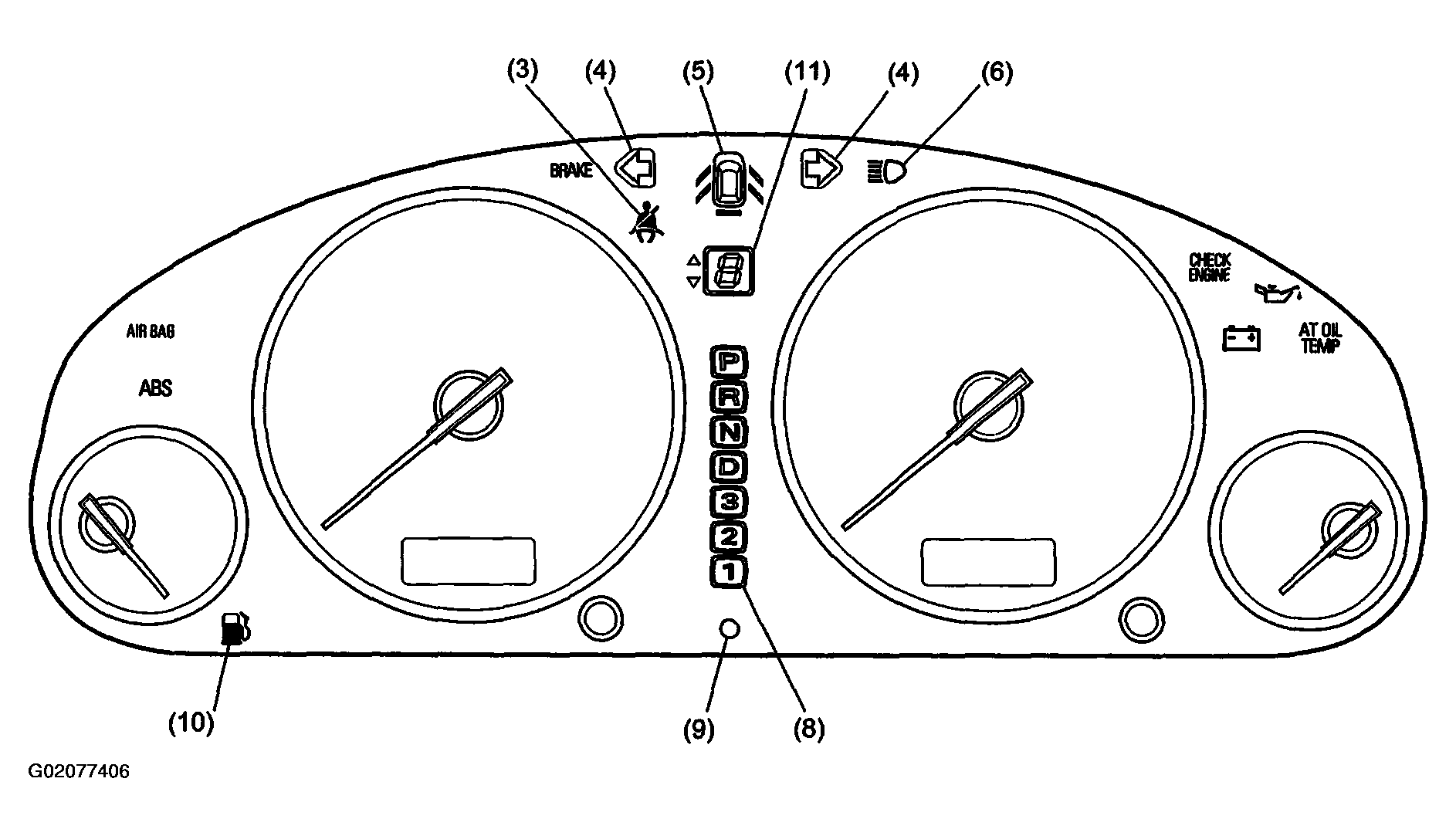

Fig 1: Identifying Telltale Vehicles (Graphic Monitor - Without Sports Shift)

Courtesy of SUBARU OF AMERICA, INC.

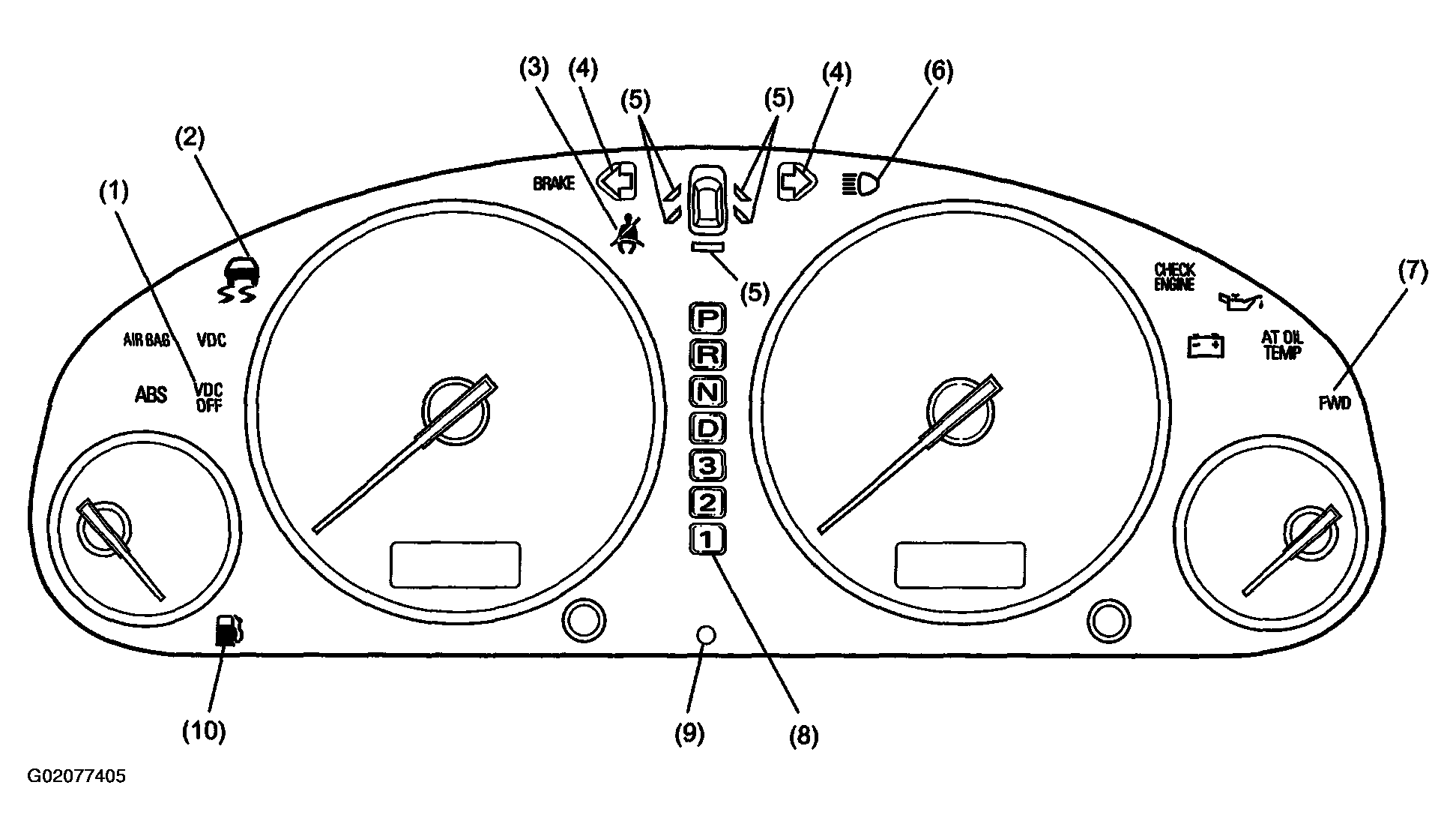

Fig 2: Identifying Telltale Vehicles (Graphic Monitor - With Sports Shift)

Courtesy of SUBARU OF AMERICA, INC.

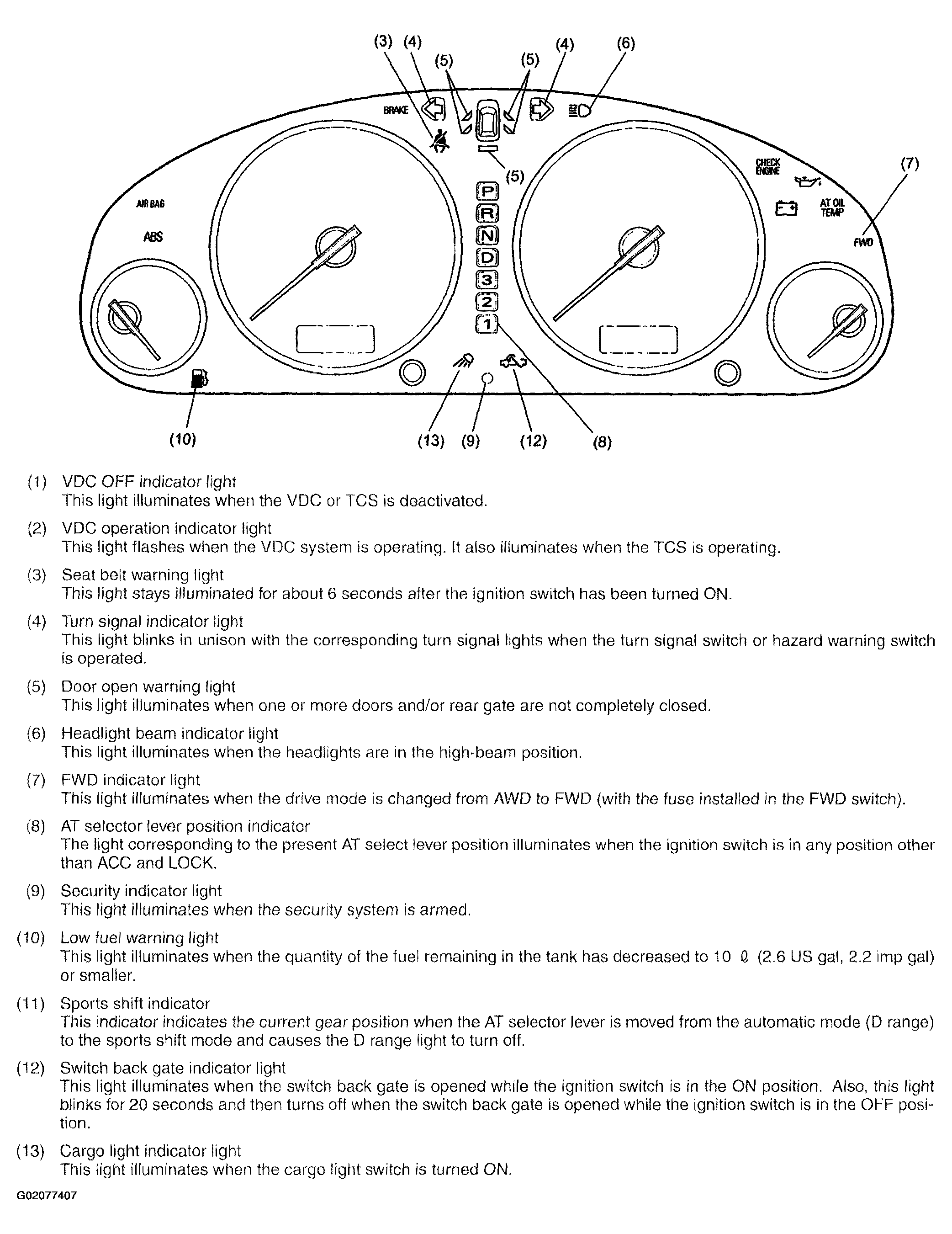

Fig 3: Identifying Telltale Pickup Vehicles (Graphic Monitor)

Courtesy of SUBARU OF AMERICA, INC.

If everything is normal, the telltales should be ON, OFF or in other states as shown below according to ignition switch positions.

Fig 4: Identifying Ignition Switch Positions Chart

Courtesy of SUBARU OF AMERICA, INC.
