Home >> Subaru >> 2003 >> Outback Base, 4D Wagon, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Instrumentation/Driver Info >> Combination Meter System >> Inspection >> Symptom Chart

Symptom Chart

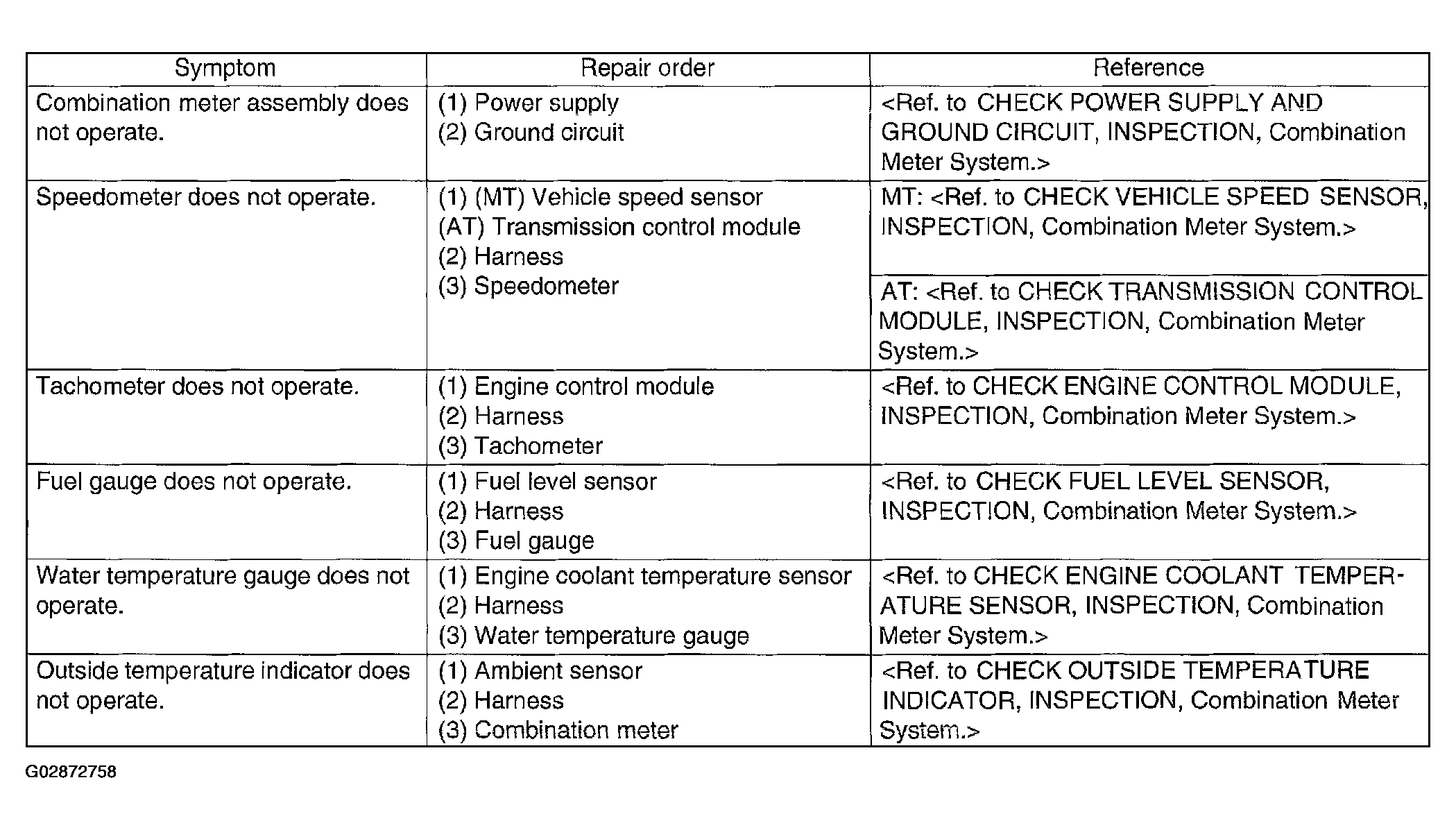

Fig 1: Combination Meter Symptom Chart

G02872758

Courtesy of SUBARU OF AMERICA, INC.
