Check Transmission Control Module

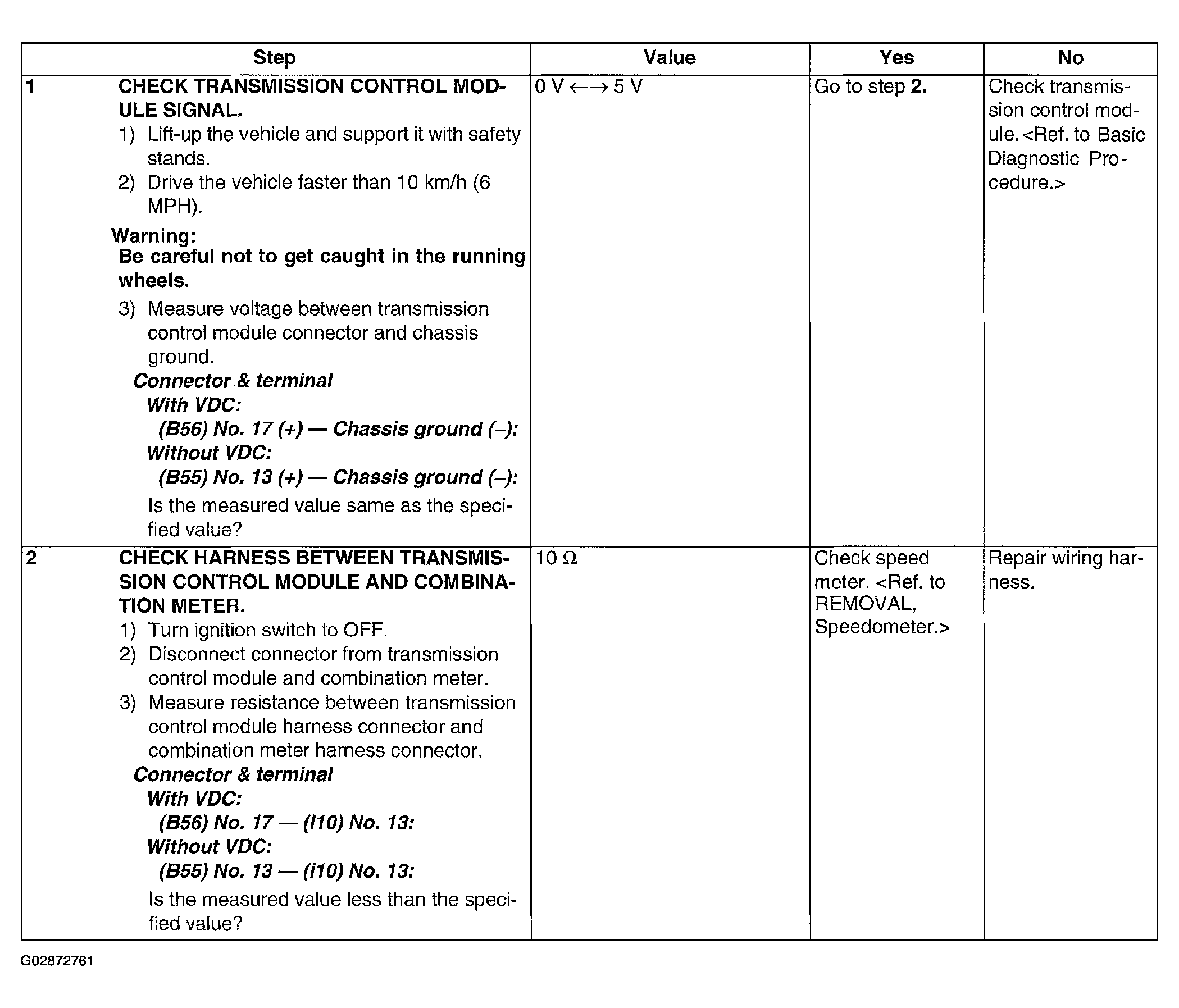

Fig 1: Checking Transmission Control Module Chart
G02872761Courtesy of SUBARU OF AMERICA, INC.
