Check Power Supply And Ground Circuit

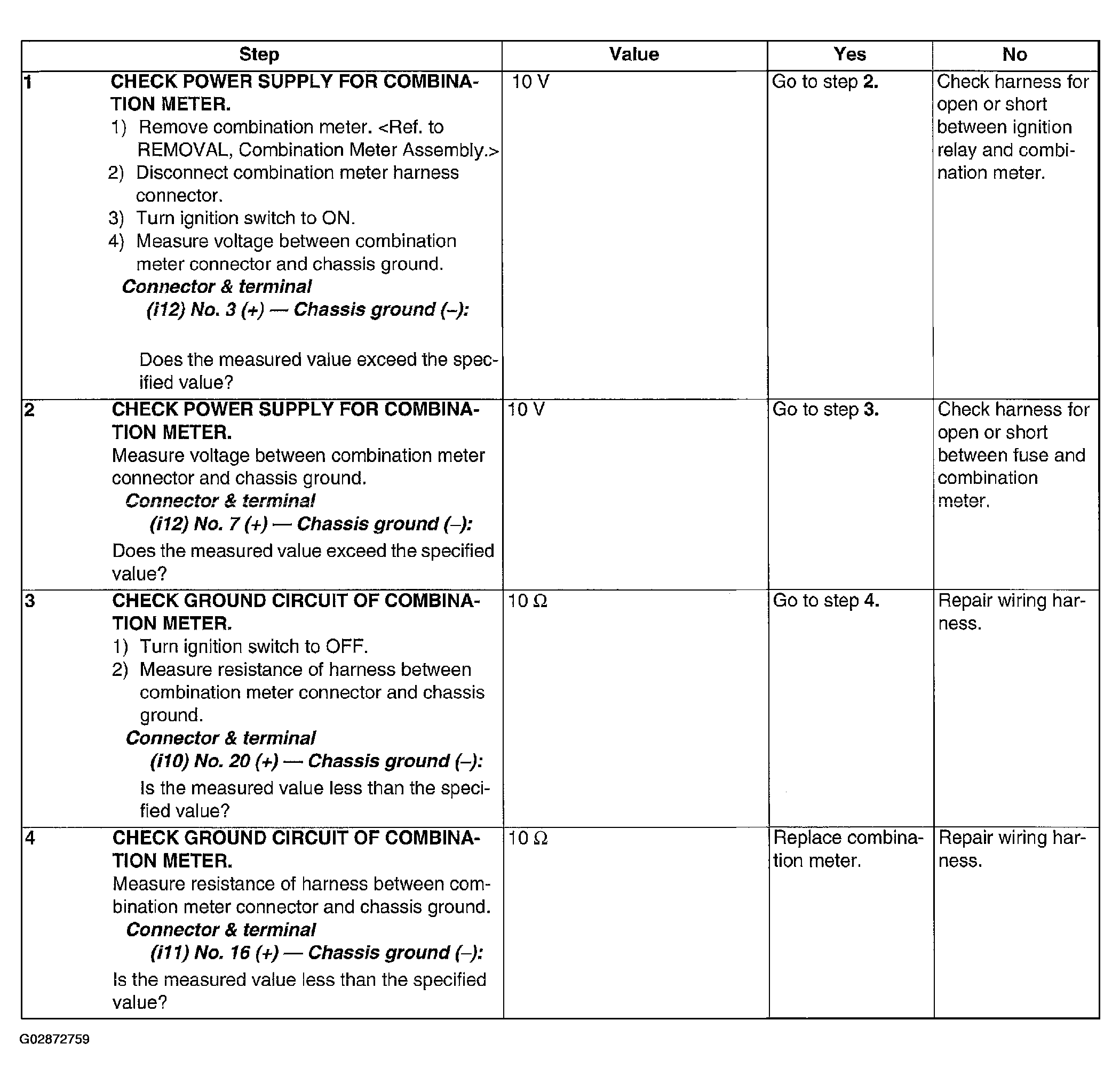

Fig 1: Checking Power Supply & Ground Circuit Chart
G02872759Courtesy of SUBARU OF AMERICA, INC.
