Check Engine Control Module

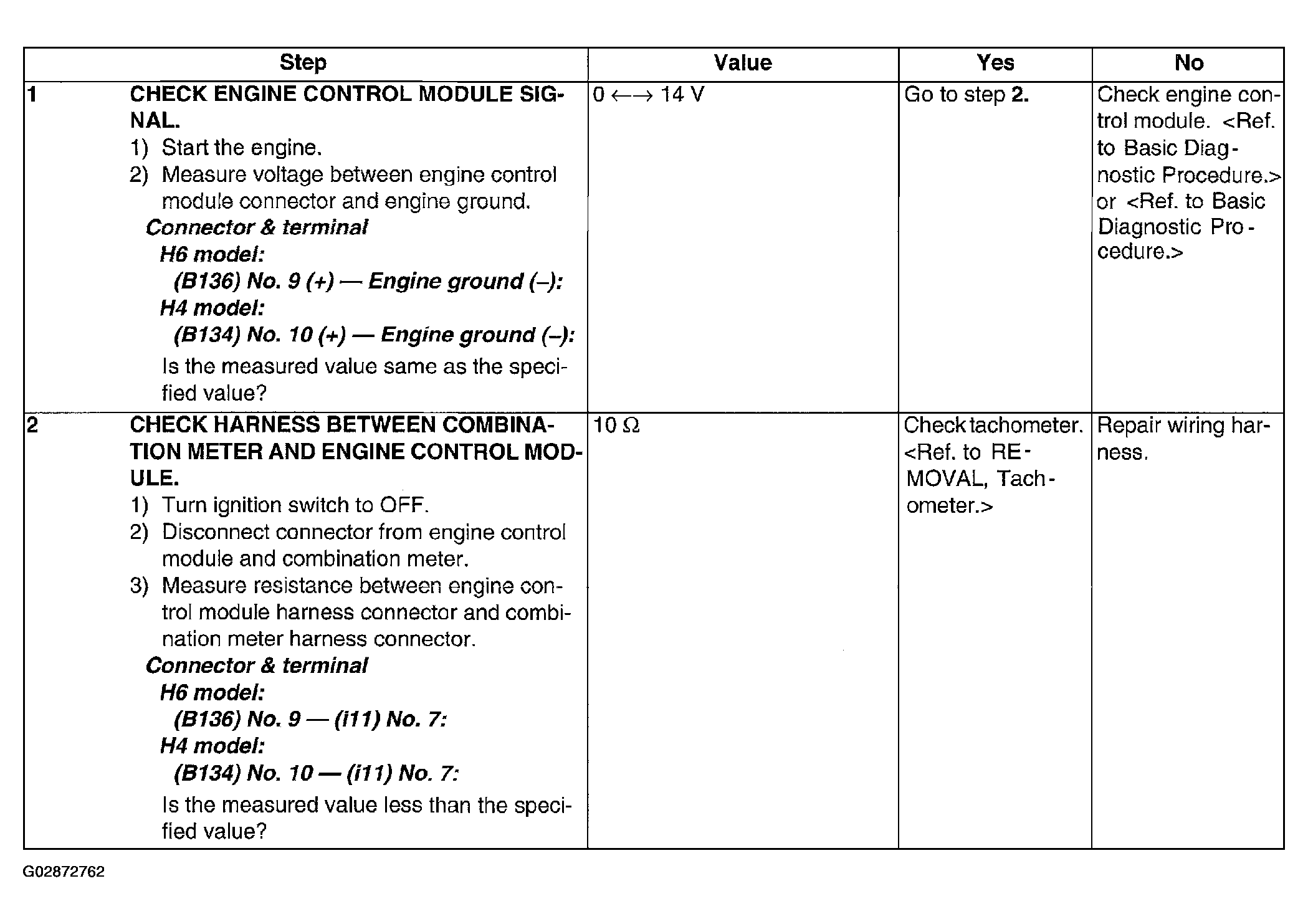

Fig 1: Checking Engine Control Module Chart
G02872762Courtesy of SUBARU OF AMERICA, INC.
