VDC Control Module I/O Signal Connector End Views

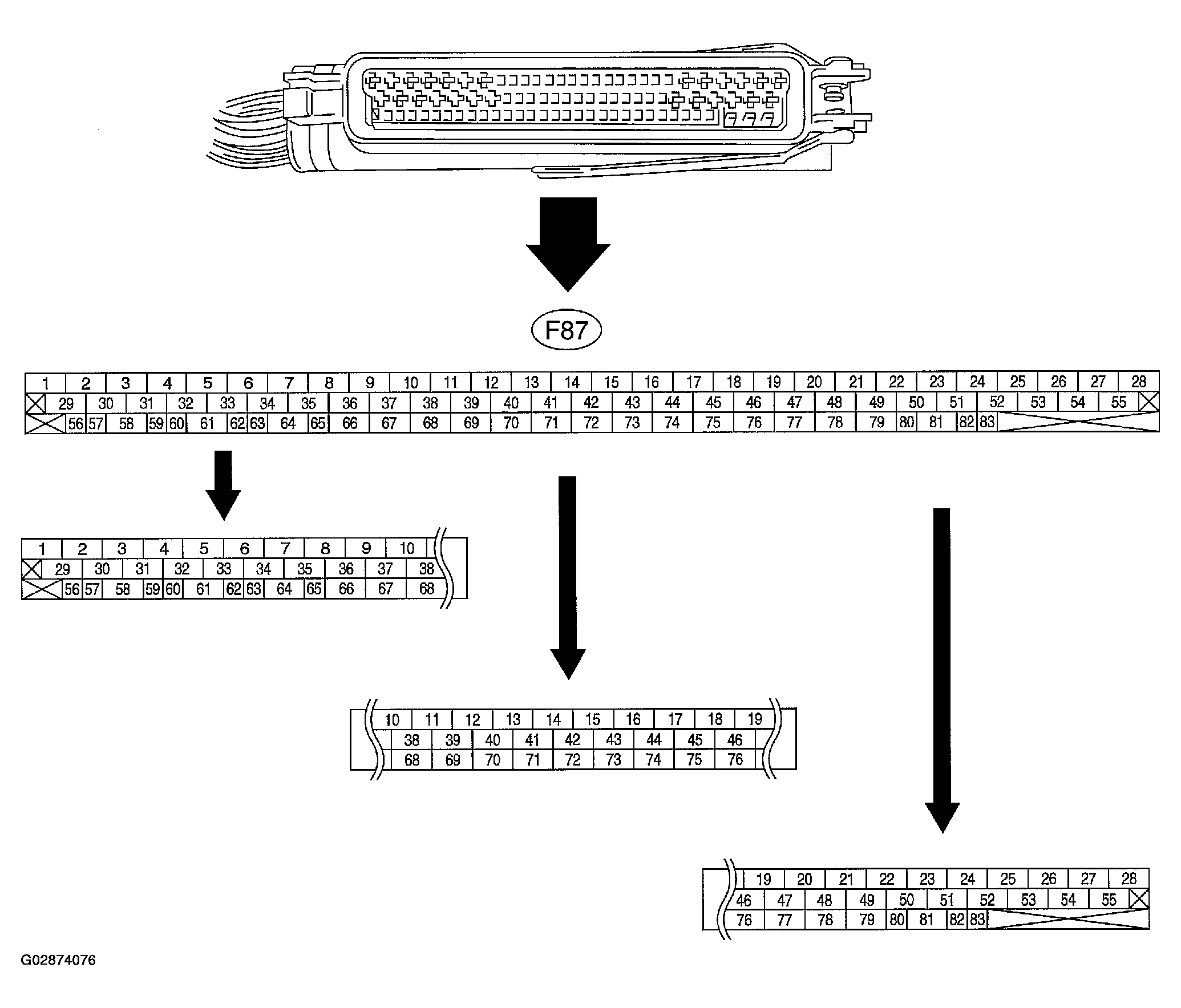

Fig 1: VDC Control Module I/O Signal Connector End Views

G02874076

Courtesy of SUBARU OF AMERICA, INC.
