A/C Control Module I/O Signal Connector End Views (Auto A/C)

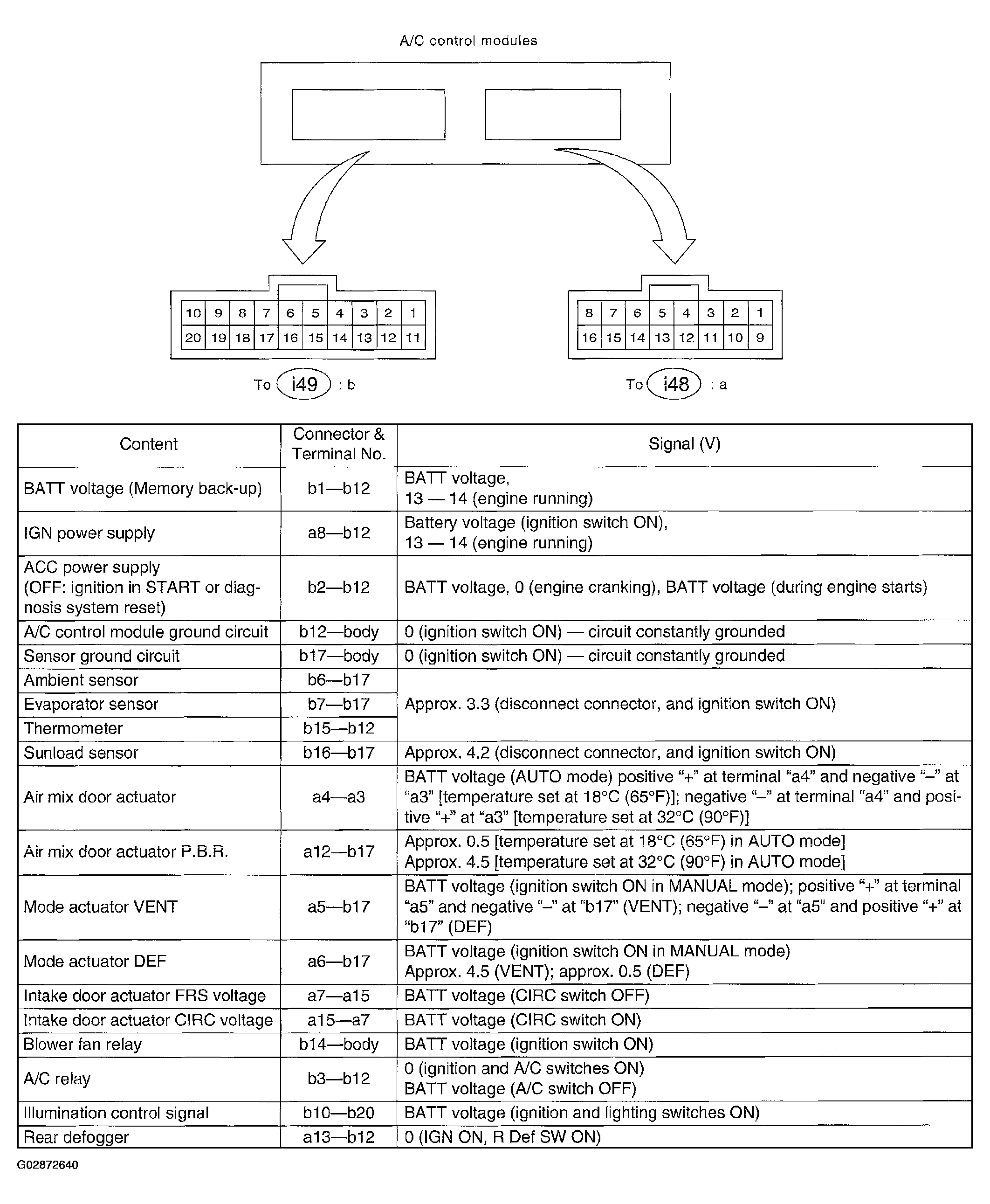

Fig 1: A/C Control Module I/O Signal Connector End Views (Auto A/C)

G02872640

Courtesy of SUBARU OF AMERICA, INC.
