VDC Control Module (VDC-CM): Removal

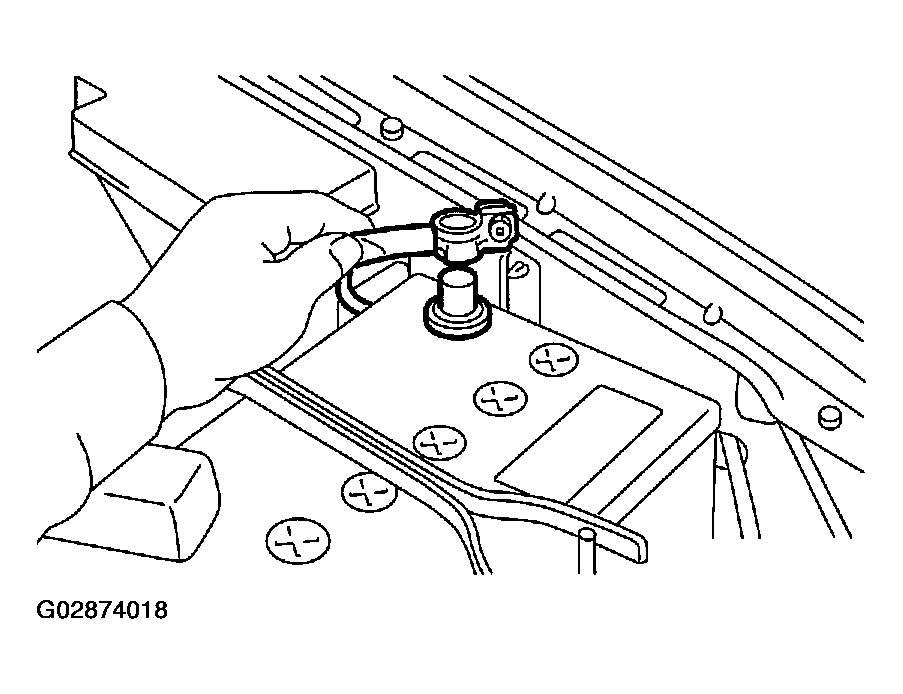

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.

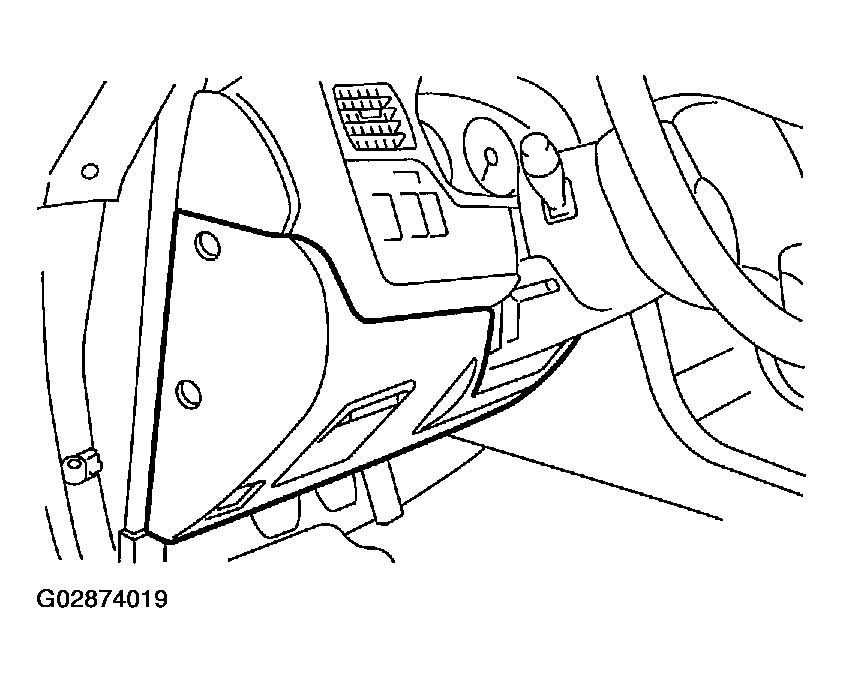

Remove lower cover of instrument panel and disconnect connectors on the back side of the cover.

Fig 2: Removing Lower Cover Of Instrument Panel
Courtesy of SUBARU OF AMERICA, INC.

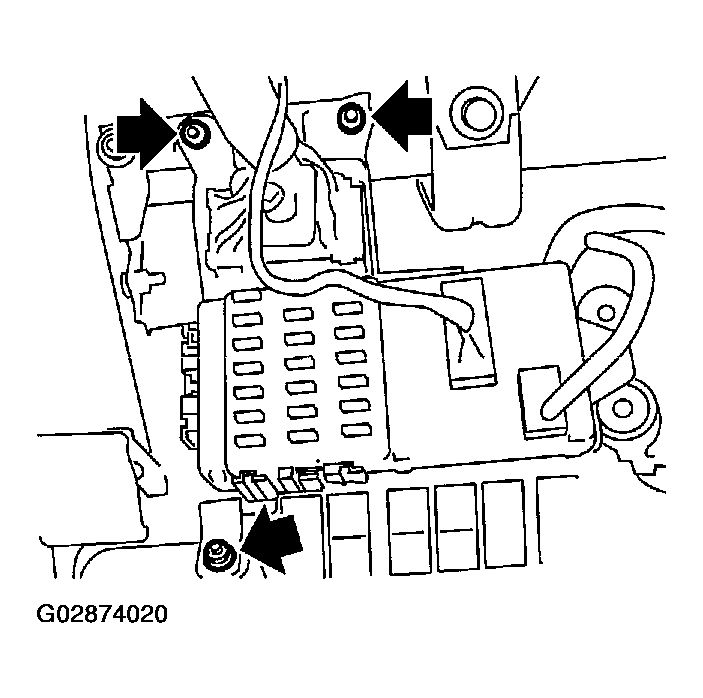

Remove three bolts which secure the fuse box onto body side, then move the fuse box aside.

Fig 3: Removing Three Bolts Securing Fuse Box
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install VDCCM onto body side bracket.

Fig 4: Removing VDCCM Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from VDCCM by pulling up the securing holder.

Fig 5: Disconnecting Connector From VDCCM
Courtesy of SUBARU OF AMERICA, INC.
Remove VDCCM.
