Home >> Subaru >> 2003 >> Outback Base, 4D Wagon, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Diagnostics) >> Diagnostics Chart with Subaru Select Monitor >> DTC 41: Abs Control Module Malfunction >> Diagnostic Procedures:

Diagnostic Procedures:

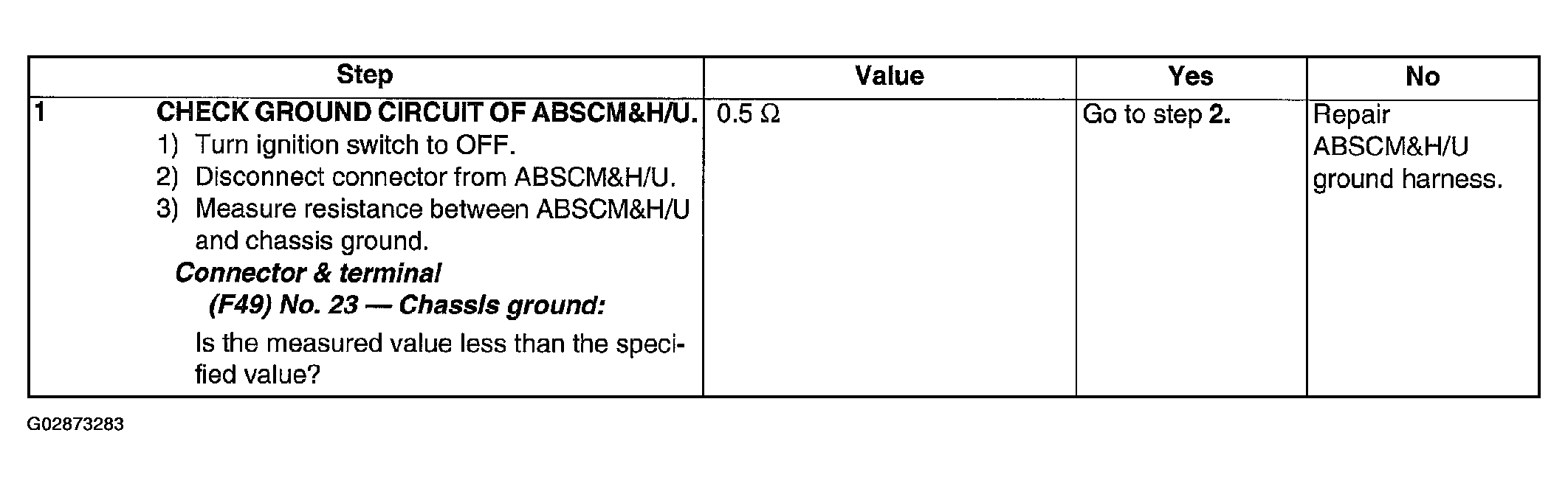

Fig 1: DTC 41: ABS Control Module Malfunction Diagnostic Chart (Step 1)
G02873283Courtesy of SUBARU OF AMERICA, INC.

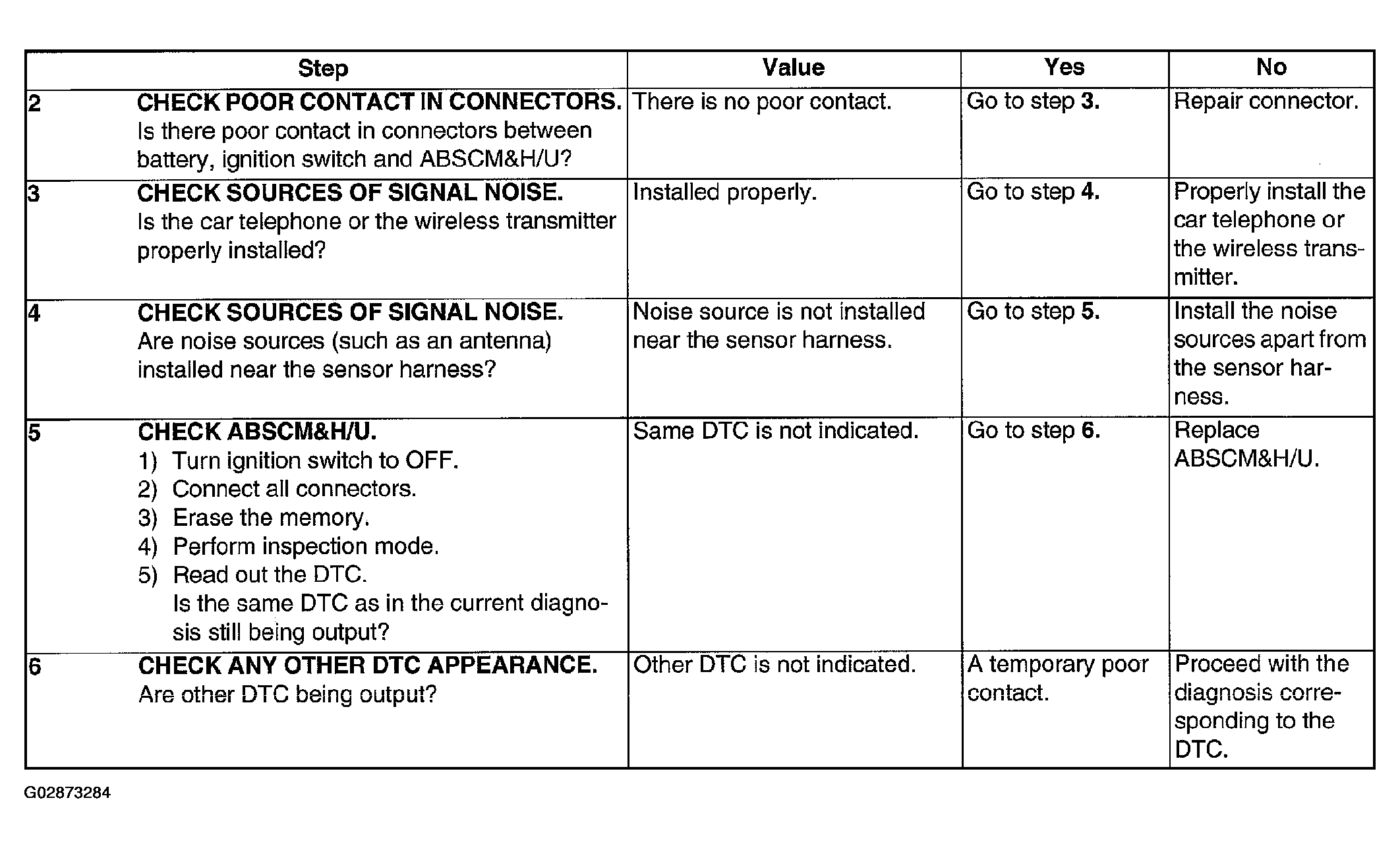

Fig 2: DTC 41: ABS Control Module Malfunction Diagnostic Chart (Steps 2 - 6)
G02873284Courtesy of SUBARU OF AMERICA, INC.
