Control Module I/O Signal: Schematic

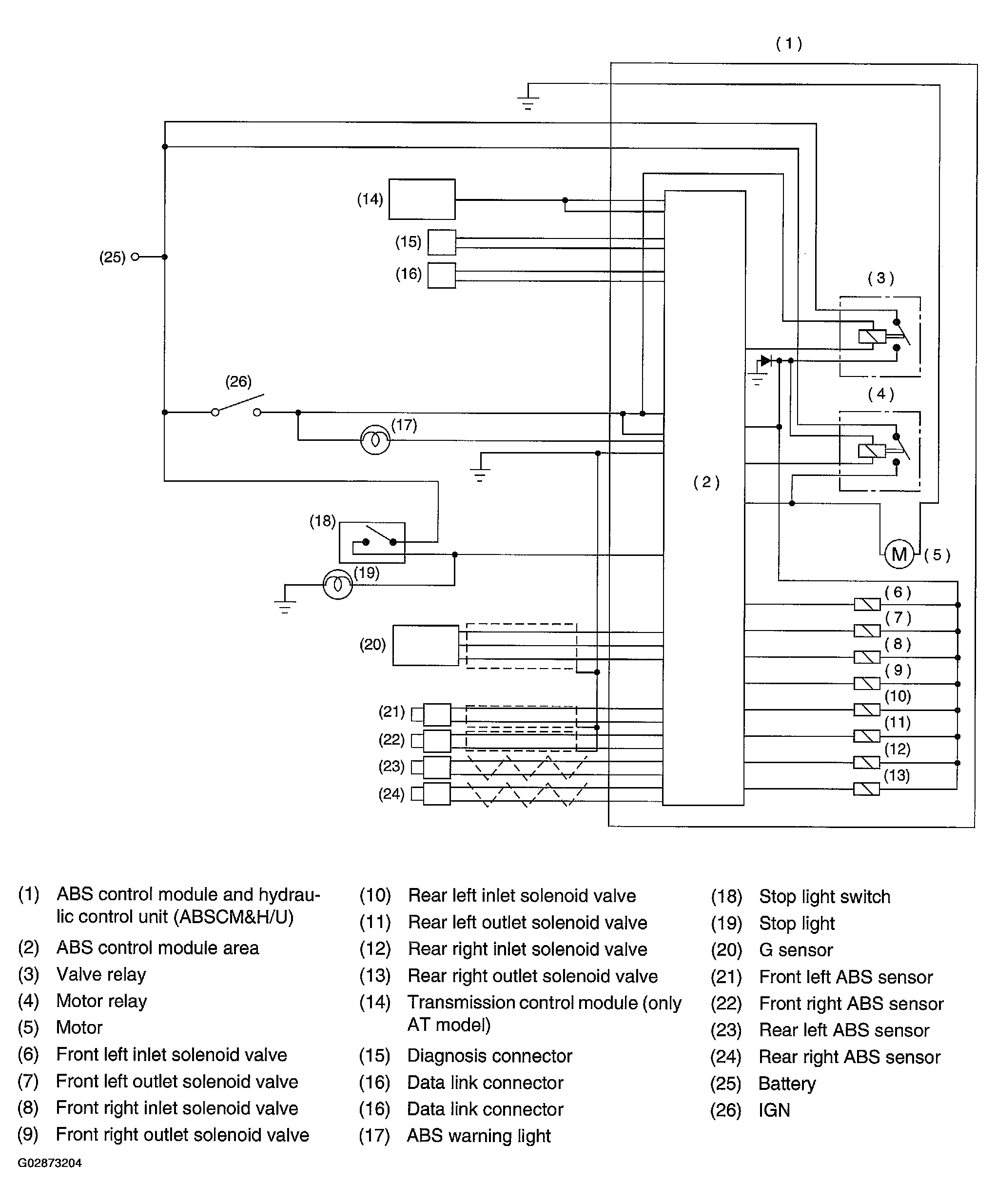

Fig 1: Control Module I/O Signal Schematic

G02873204

Courtesy of SUBARU OF AMERICA, INC.
