Using Windshield Knife

  1. Remove cowl panel. < Ref. to REMOVAL , Cowl Panel.>
  2. Remove front side molding and upper front molding.
  3. Tape body side of the circumference of windshield glass for protection.
  4. Apply sufficient amount of soapy water to adhesive layer.
  5. Insert windshield knife into the adhesive layer.
  6. While holding the knife edge and windshield glass edge at a right angle, move windshield knife in parallel to windshield glass edge along face and edge of windshield glass to cut the adhesive layer.
CAUTION:
  • Do not twist windshield knife.
  • Cutting of adhesive layer shall be started with wider gap between windshield glass and body.

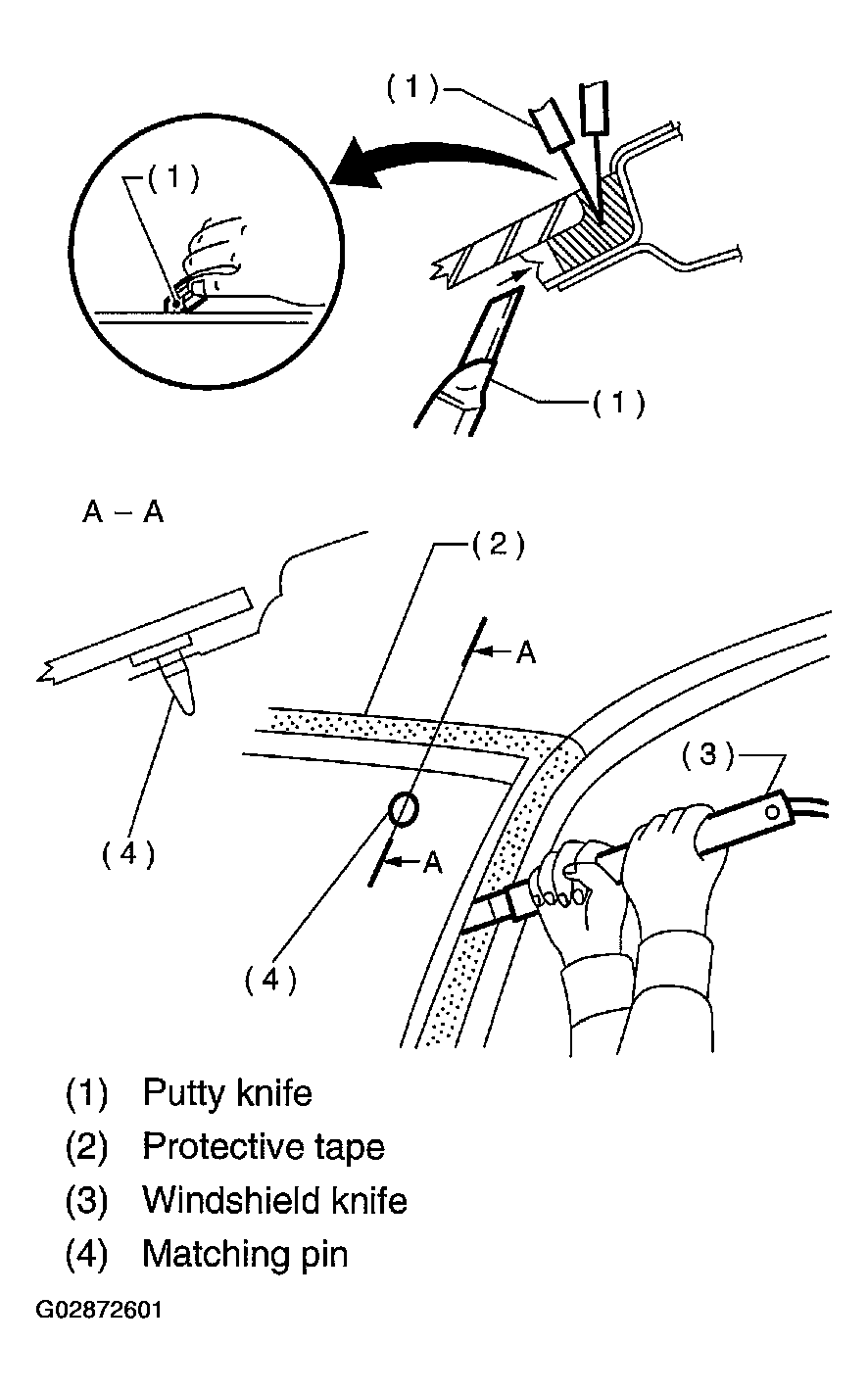

Fig 1: Cutting Adhesive Layer
G02872601Courtesy of SUBARU OF AMERICA, INC.
NOTE: Because matching pins are bonded to the corners of glass, use piano wire to cut the pin.
Fig 2: Using Piano Wire To Cut Pin
G02872602Courtesy of SUBARU OF AMERICA, INC.
