Cruise Control Command Switch: Inspection

Measure cruise control command switch resistance.

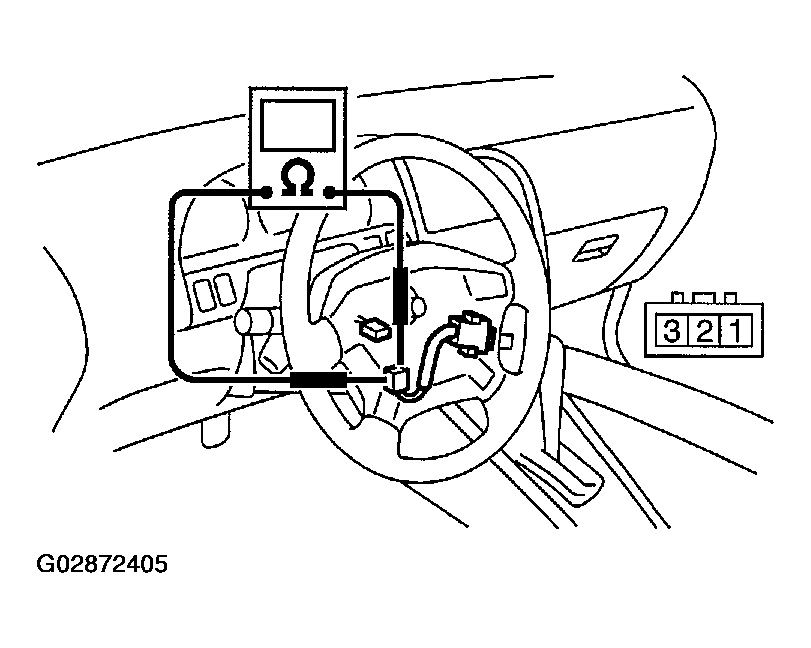

Fig 1: Measuring Cruise Control Command Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

Check continuity between cruise control command switch terminals.

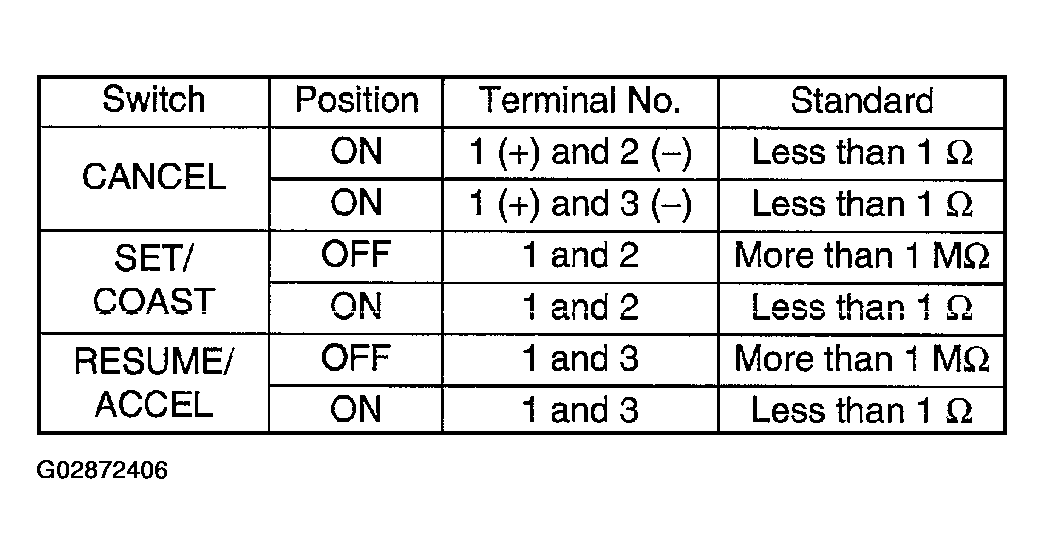

Fig 2: Checking Continuity Between Cruise Control Command Switch Terminals

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace cruise control command switch.
