MT Gear Shift Lever: Removal

Set the vehicle on a lift.
Remove the gear shift knob.
Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box.>

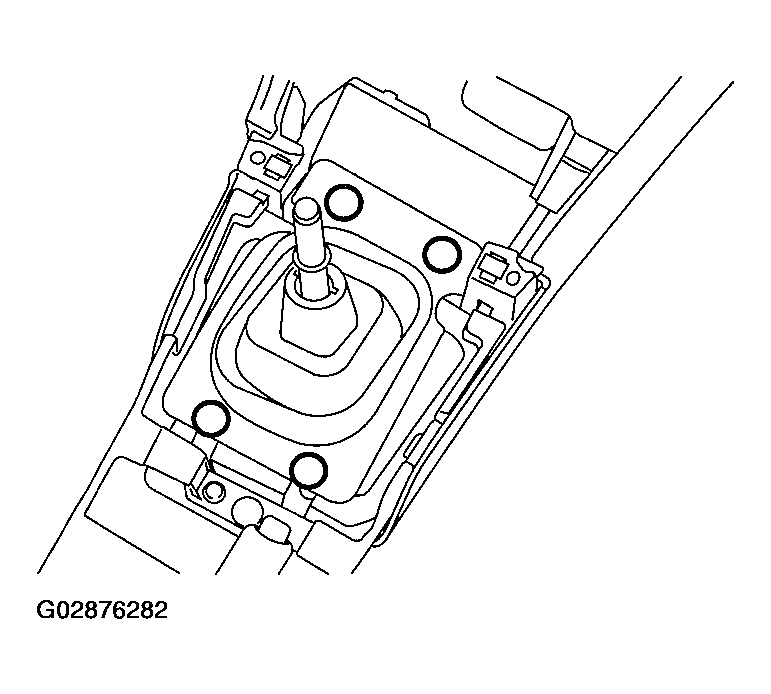

Remove the clamp.

Fig 1: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.

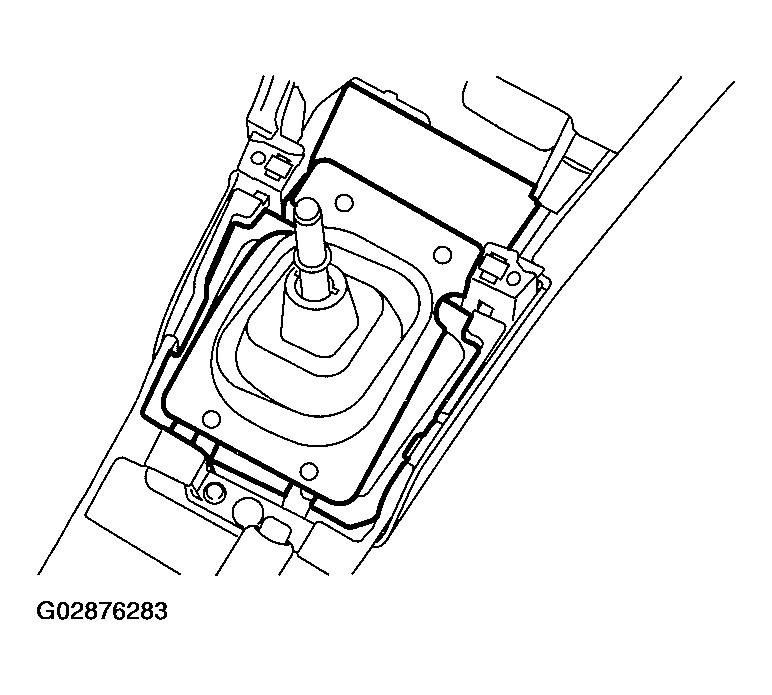

Remove the boot and insulator assembly.

Fig 2: Removing Boot & Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.

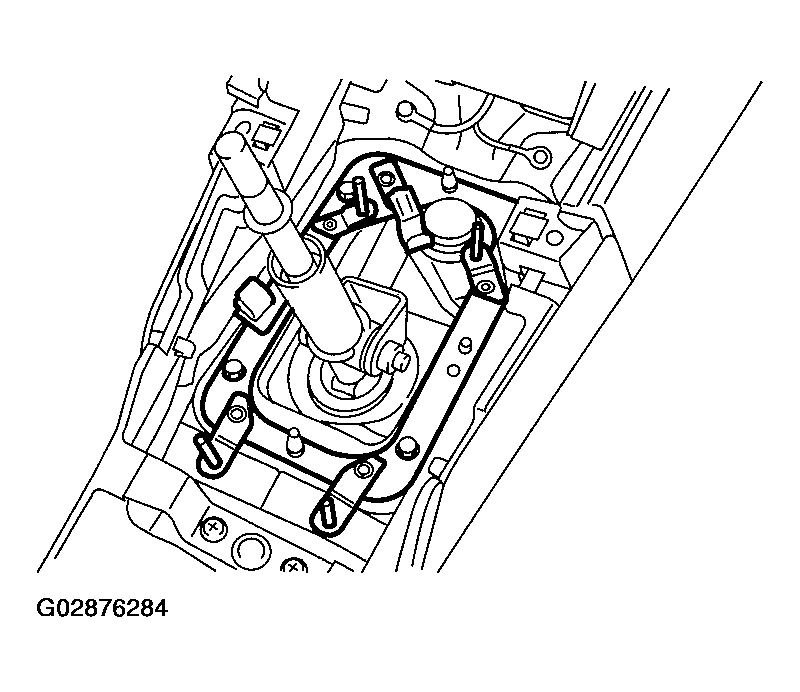

Remove the plate COMPL from body.

Fig 3: Removing Plate COMPL From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
2.5 L model
1. < Ref. to REMOVAL , Rear Exhaust Pipe> and < Ref. to REMOVAL , Muffler.>
3.0 L model
1. < Ref. to REMOVAL , Rear Exhaust Pipe. > and < Ref. to REMOVAL , Muffler.>
Remove the heat shield cover.

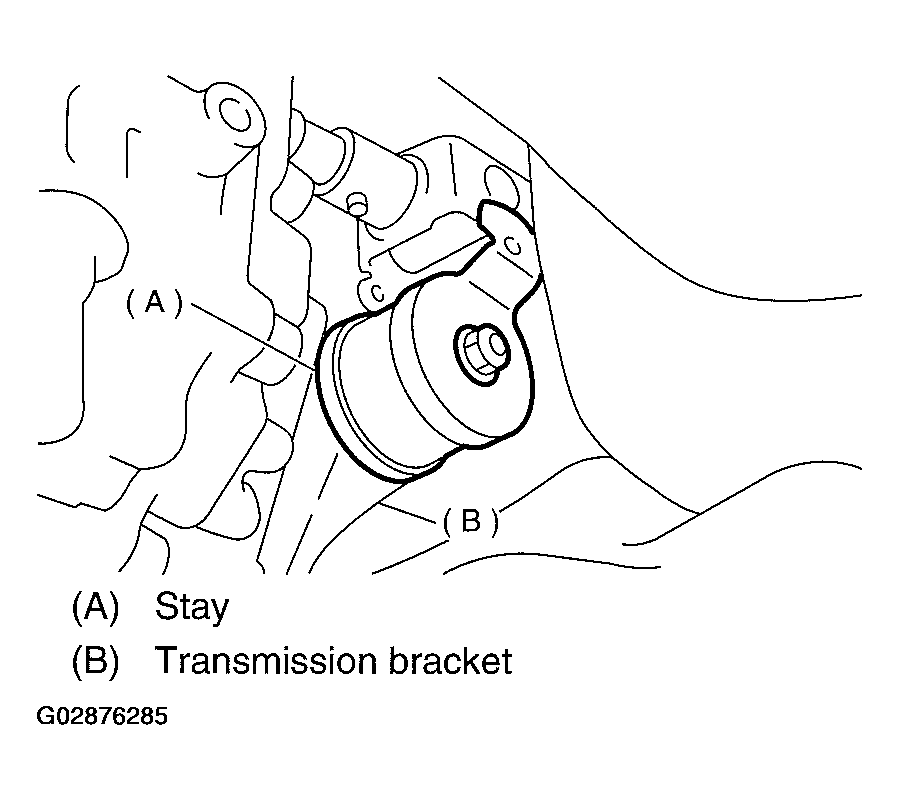

Remove the stay from transmission bracket.

Fig 4: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

Fig 5: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from body.

Fig 6: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then extract the joint.

Fig 7: Removing Spring Pin & Extracting Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

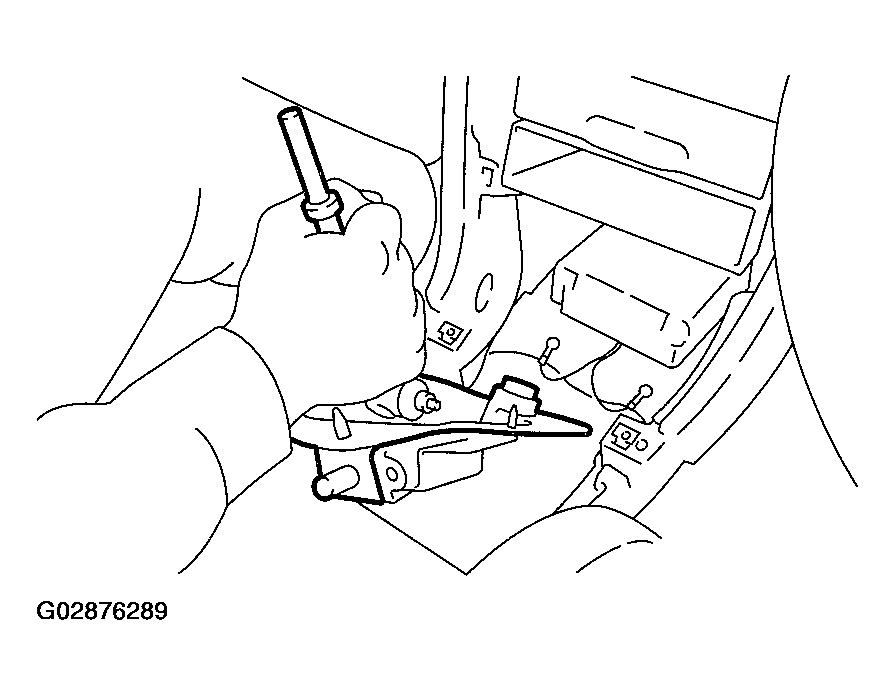

Remove the gear shift lever.

Fig 8: Removing Gear Shift Lever

Courtesy of SUBARU OF AMERICA, INC.
