Subaru
>>
2003
>>
Outback Base, 4D Sedan
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
A/T & M/T Control Systems
>>
General Description
>>
Component
>>
Mt Gear Shift Lever
Mt Gear Shift Lever

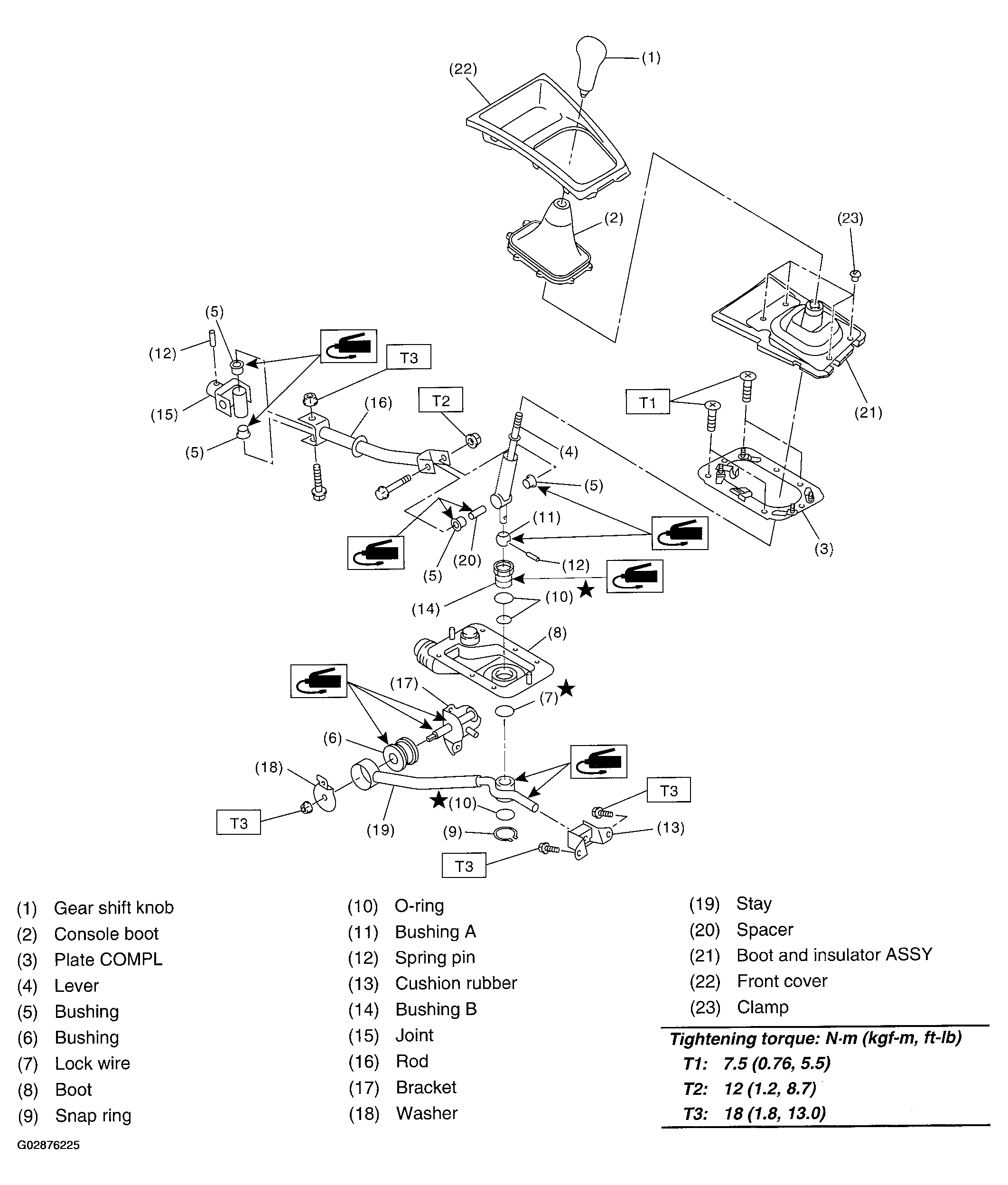

Fig 1: Exploded View Of MT Gear Shift Lever Component
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
