Select Lever Cannot Be Shift Locked Wiring Diagram:

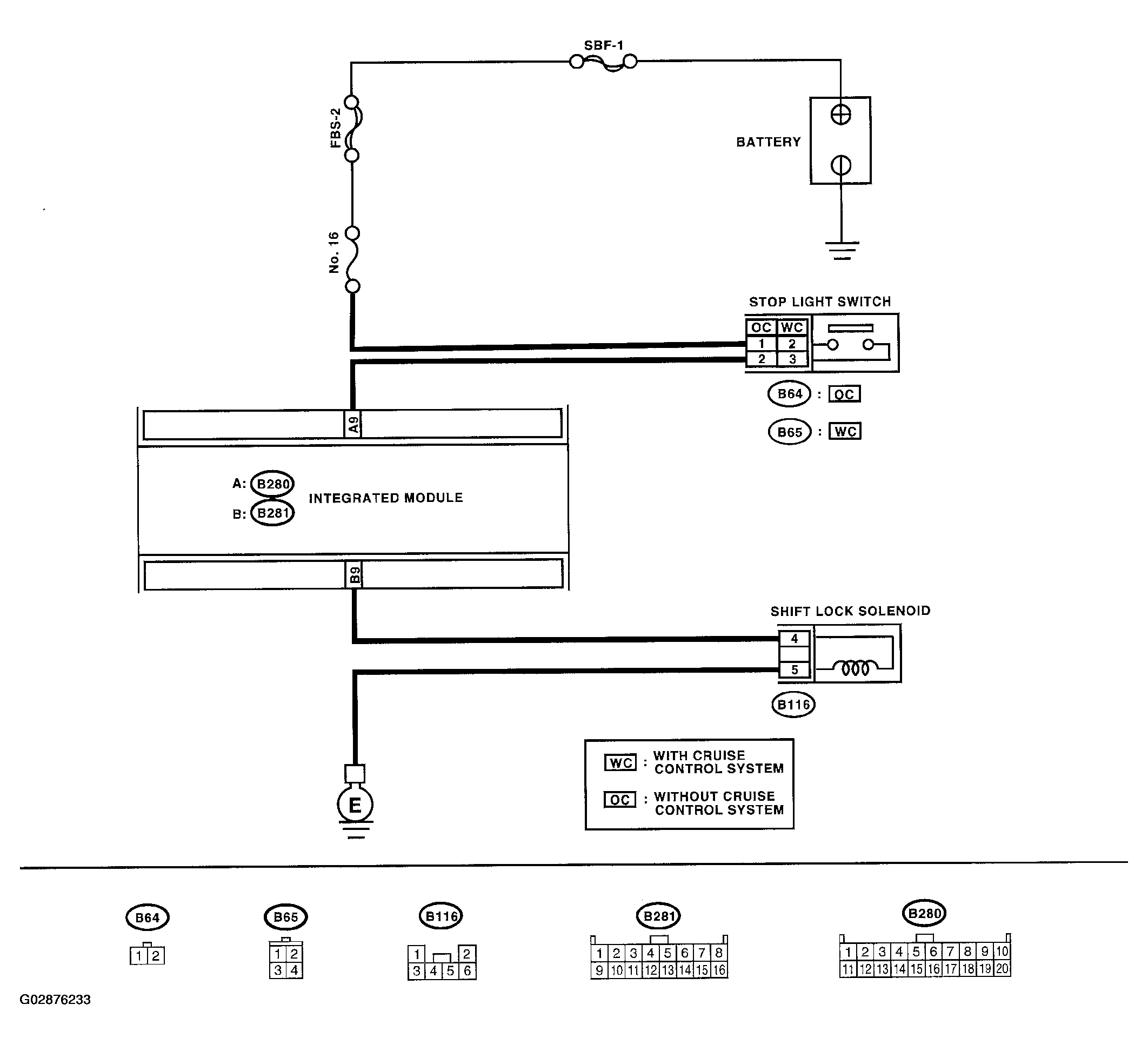

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

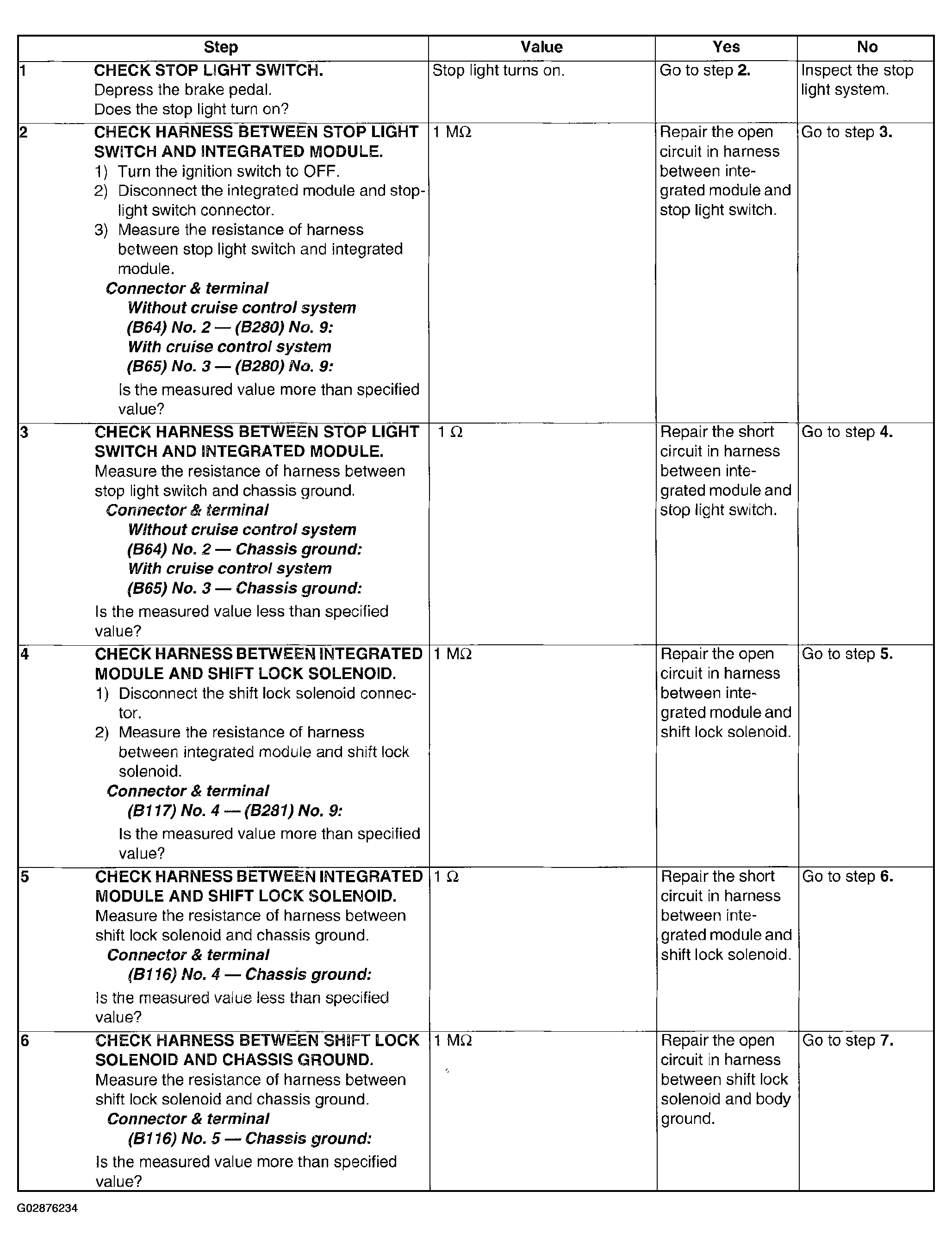

Fig 2: Select Lever Cannot Be Shift Locked Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

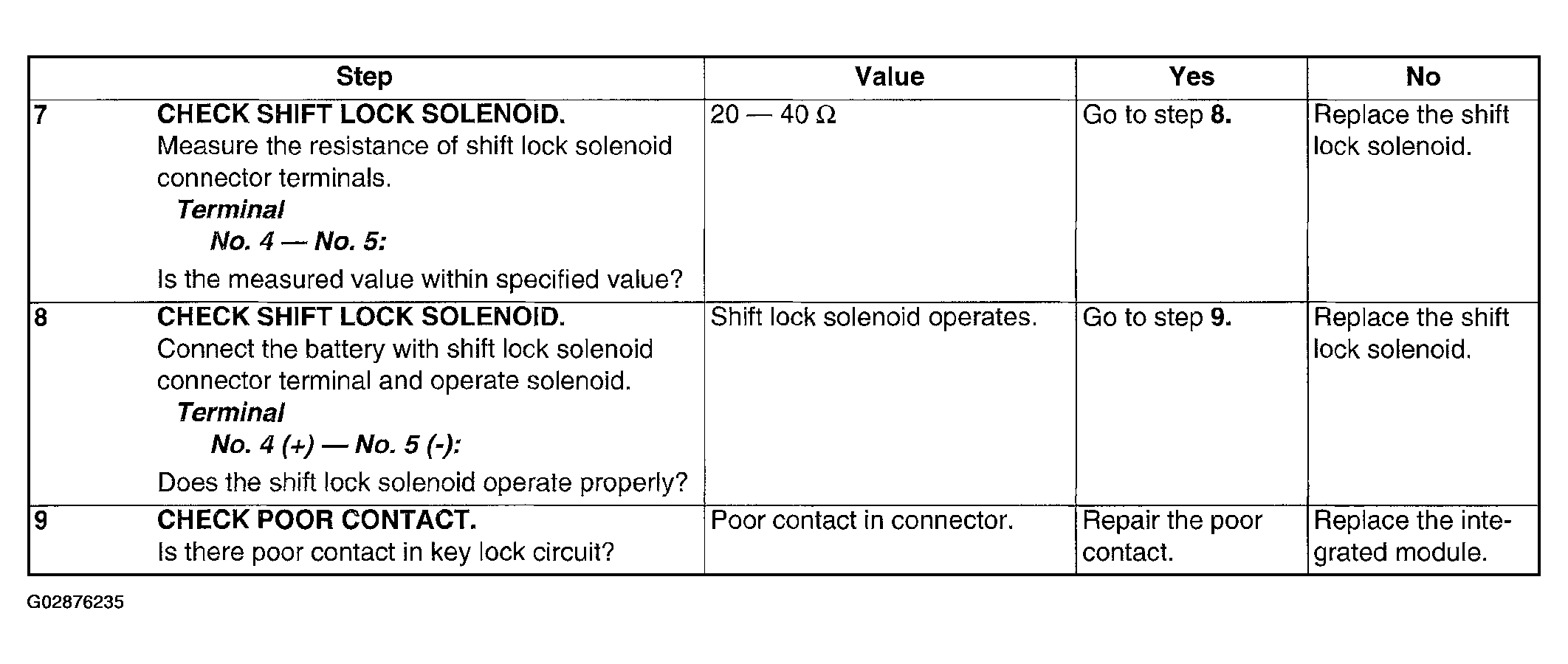

Fig 3: Select Lever Cannot Be Shift Locked Inspection Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
