One-way Clutch: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Extract the torque converter clutch assembly. < Ref. to REMOVAL , Torque Converter Clutch Assembly.>
  3. Remove the input shaft.

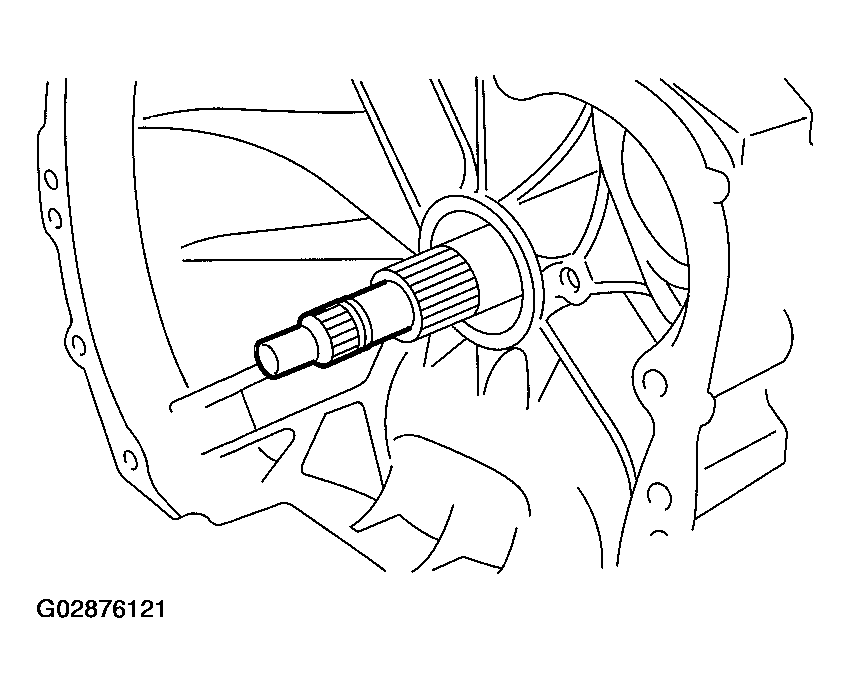

    Fig 1: Removing Input Shaft
    G02876121Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the air breather hose. < Ref. to REMOVAL , Air Breather Hose.>
  5. Lift-up lever behind the transmission harness connector and disconnect it from stay.
  6. Disconnect inhibitor switch connector from stay.
  7. Remove the oil charger pipe. < Ref. to REMOVAL , Oil Charger Pipe.>
  8. Remove the oil cooler inlet and outlet pipes.

    < Ref. to REMOVAL , ATF Cooler Pipe and Hose.>

  9. Separation of torque converter clutch case and transmission case. < Ref. to REMOVAL , Torque Converter Clutch Case.>
  10. Separate transmission case and extension case sections. < Ref. to REMOVAL , Extension Case.>
  11. Remove the reduction driven gear.

    < Ref. to REMOVAL , Reduction Driven Gear.>

  12. Remove the reduction drive gear. (MPT model)

    < Ref. to REMOVAL , Reduction Driven Gear.>

  13. Remove the center differential carrier. (VTD model) < Ref. to REMOVAL , Center Differential Carrier.>
  14. Remove control valve assembly. < Ref. to REMOVAL , Control Valve Body.>
  15. Remove the oil pump housing. < Ref. to REMOVAL , Oil Pump.>
  16. Take out the high clutch and reverse clutch assembly. < Ref. to REMOVAL , High Clutch and Reverse Clutch.>
  17. Take out the thrust needle bearing, planetary gear assembly. < Ref. to REMOVAL , Planetary Gear and Low Clutch.>
  18. Take out 2-4 brake return spring, piston and piston retainer. < Ref. to REMOVAL , 2-4 Brake.>
  19. Pull out the leaf spring without folding.

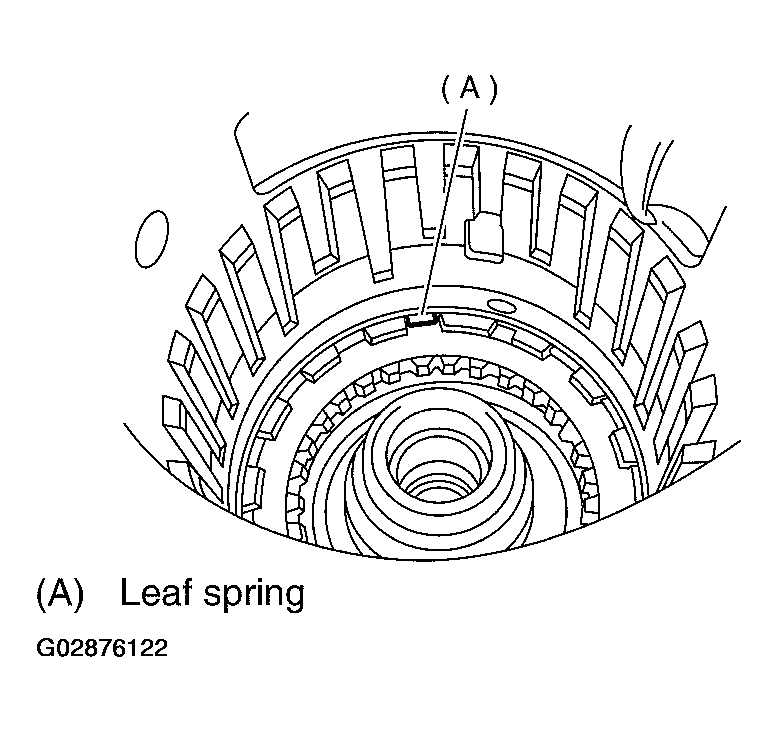

    Fig 2: Removing Leaf Spring Without Folding
    G02876122Courtesy of SUBARU OF AMERICA, INC.
  20. Remove snap ring.

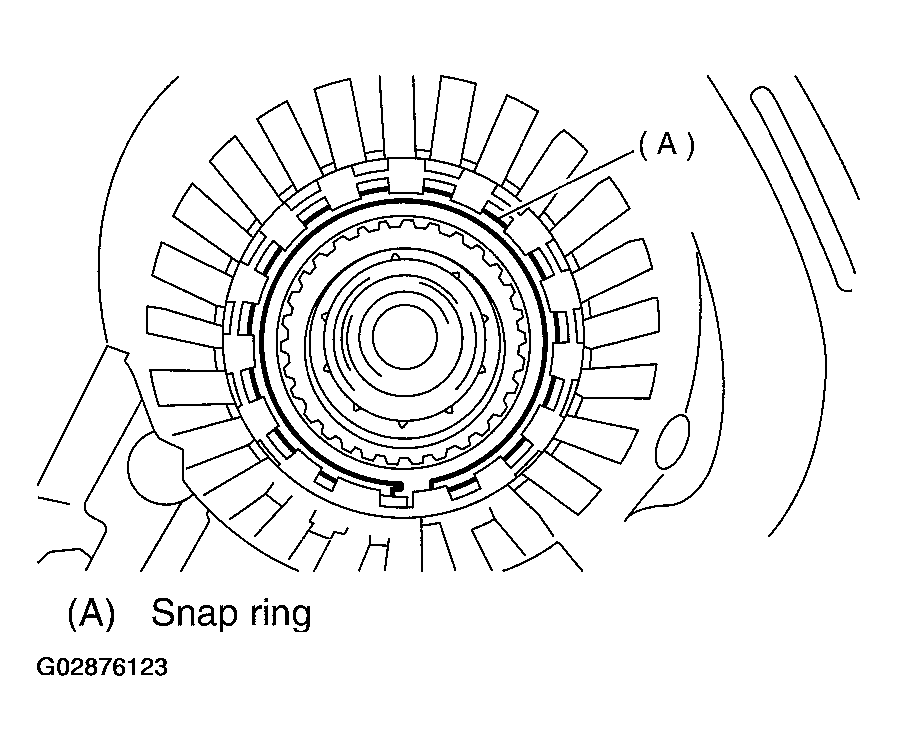

    Fig 3: Removing Snap Ring
    G02876123Courtesy of SUBARU OF AMERICA, INC.
  21. Take out retaining plate, drive plate, driven plate and dish plate.

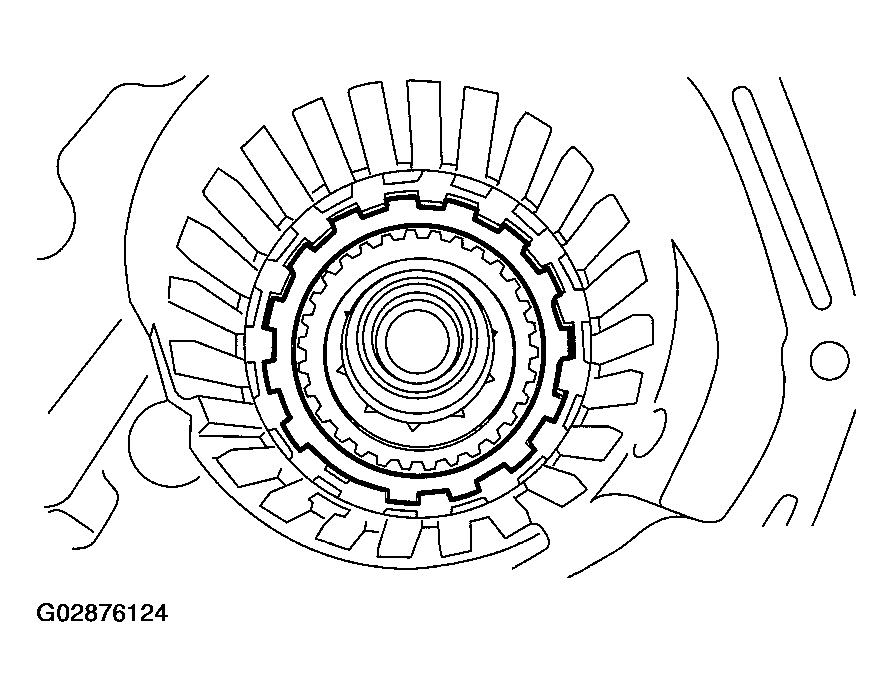

    Fig 4: Removing Retaining Plate
    G02876124Courtesy of SUBARU OF AMERICA, INC.
  22. Turn the transmission case upside down, and then take out the socket bolts while holding the one-way clutch inner race with hand.

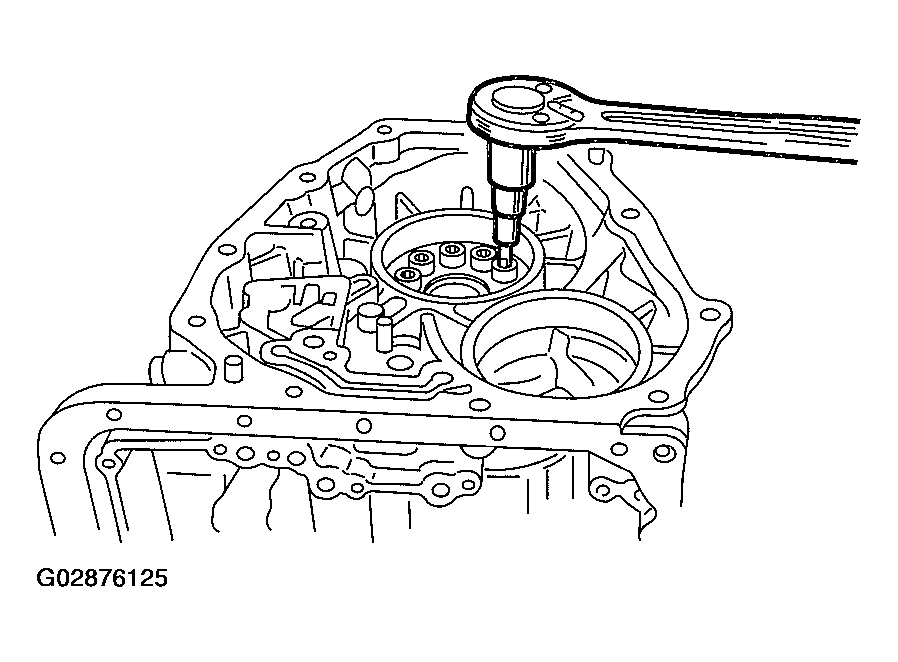

    Fig 5: Removing Socket Bolts
    G02876125Courtesy of SUBARU OF AMERICA, INC.
