Transmission Ground

Make sure that the ground terminal bolt is tightened securely.

• Chassis side

1. Tightening torque:  13 N.m (1.3 kgf-m, 9.4 ft-lb)

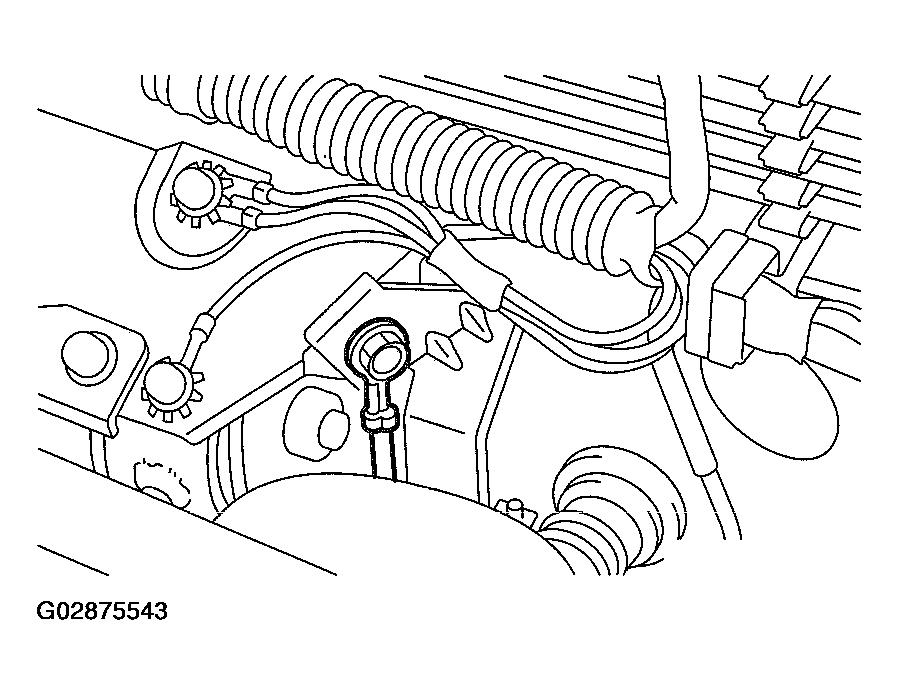

Fig 1: Identifying Transmission Ground

Courtesy of SUBARU OF AMERICA, INC.
