Universal Joint: Removal

  1. Set the vehicle on a lift.
  2. Remove the steering wheel. < Ref. to REMOVAL  , Steering Wheel.>
  3. Lift-up the vehicle.
  4. Remove universal joint bolts and then remove universal joint.
CAUTION: Scribe alignment marks on universal joint so that it can be reassembled at the original serration.

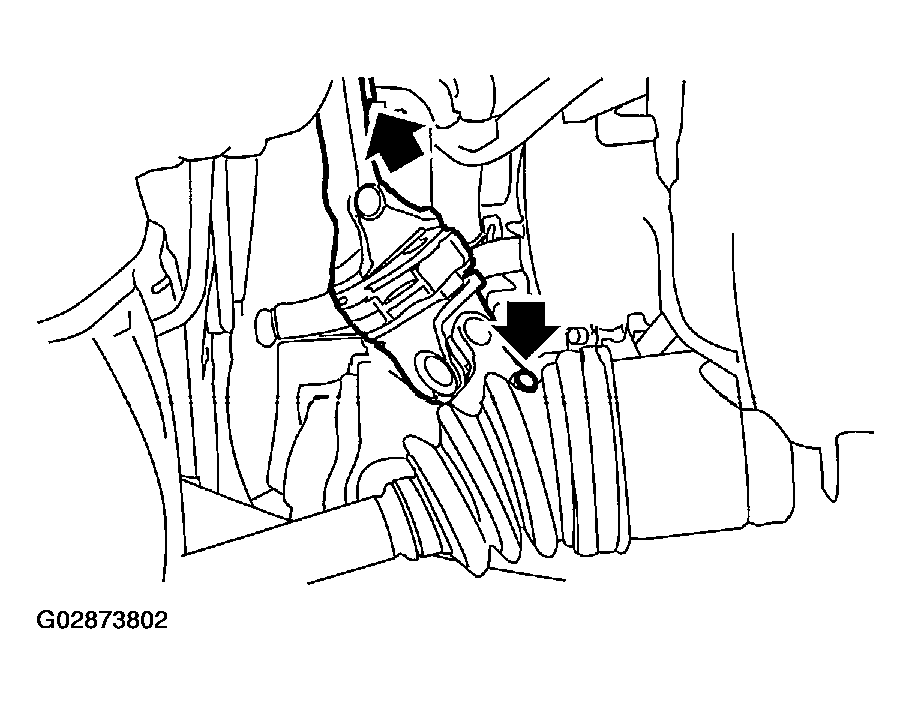

Fig 1: Removing Universal Joint Bolts
G02873802Courtesy of SUBARU OF AMERICA, INC.
