Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

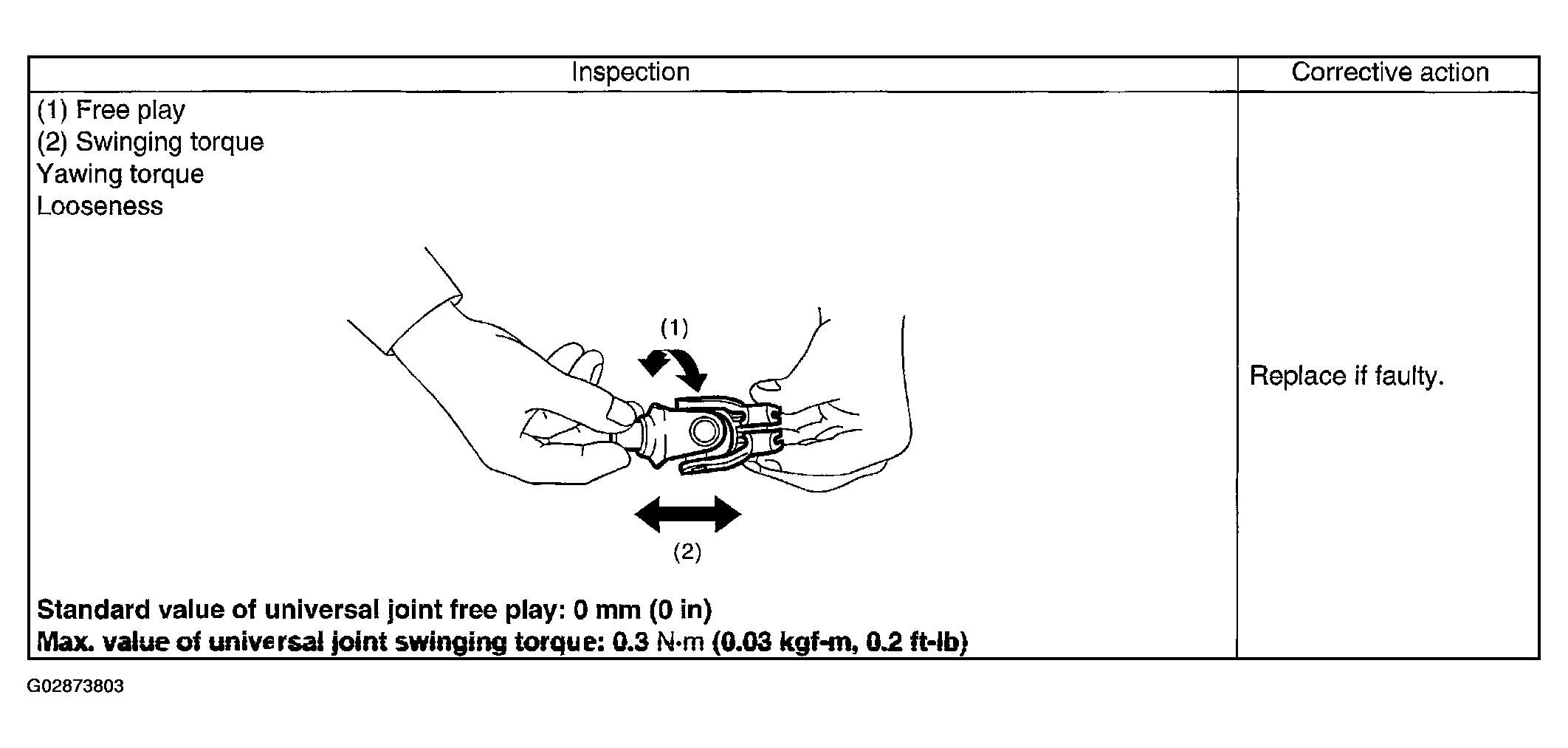

Fig 1: Inspecting Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Measurement of folding torque of universal joint is as shown in the figures.

Service limit:

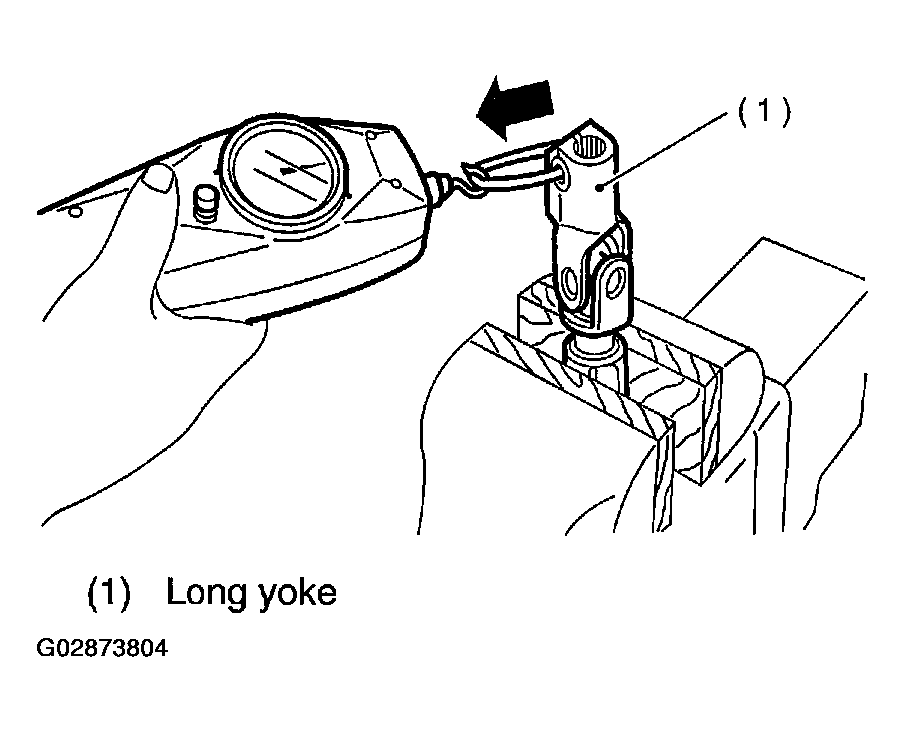

Fig 2: Measuring Of Folding Torque Of Universal Joint Long Yoke (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Fig 3: Measuring Of Folding Torque Of Universal Joint Long Yoke (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Fig 4: Measuring Of Folding Torque Of Universal Joint Short Yoke (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Fig 5: Measuring Of Folding Torque Of Universal Joint Short Yoke (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
