3.0 L Model

1. Place oil pump bracket in a vise. Tighten bushing using a 12.7 mm (1/2") type 14 and 21- mm box wrench until it is in contact with oil pump mounting surface.
   CAUTION: Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

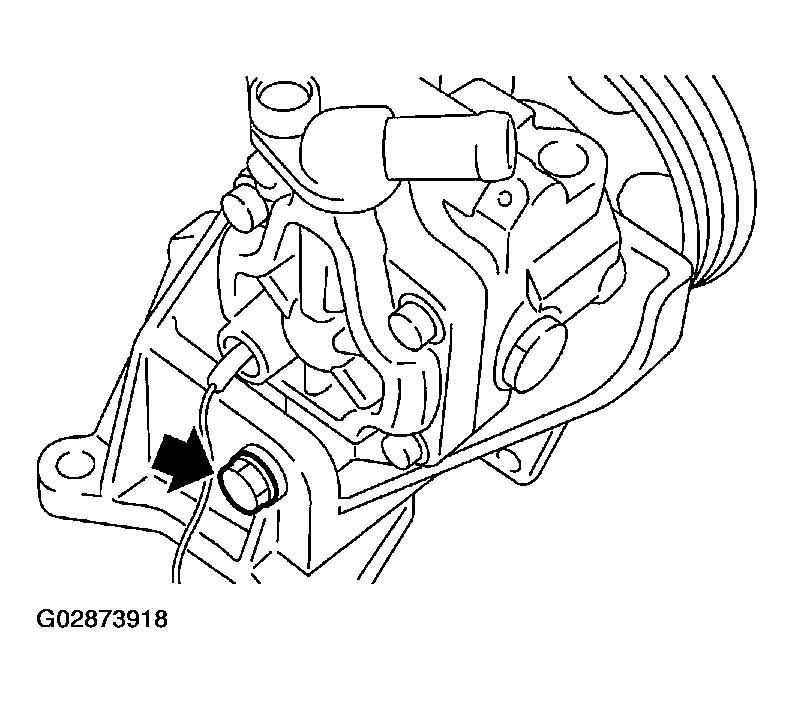

   Fig 1: Tightening Bushing

   Courtesy of SUBARU OF AMERICA, INC.
2. Tighten bolt which installs oil Pump to bracket.
   1. Tightening torque:  15.7 N.m (1.6 kgf-m, 11.6 ft-lb)
   Fig 2: Tightening Oil Pump To Bracket Bolts

   Courtesy of SUBARU OF AMERICA, INC.
   1. Tightening torque:  37.3 N.m (3.8 kgf-m, 27.5 ft-lb)
   Fig 3: Tightening Bolt

   Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  33.3 N.m (3.4 kgf-m, 24.5 ft-lb)

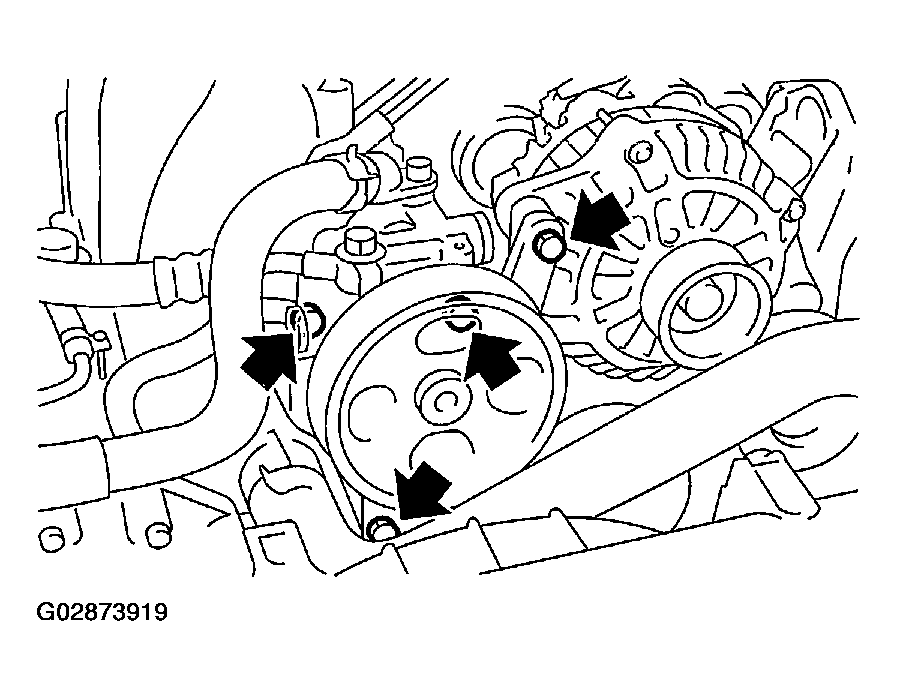

Fig 4: Tightening Power Steering Pump Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1. Eye bolt:  39.2 N.m (4 kgf-m, 28.9 ft-lb)

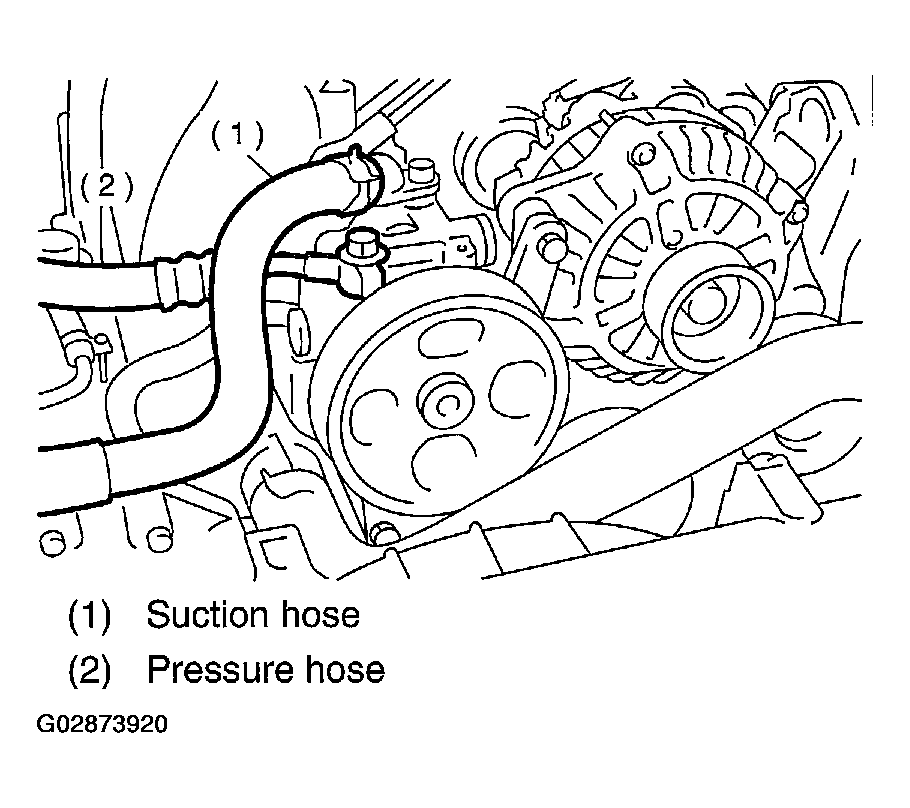

Fig 5: Interconnecting Pressure Hose & Suction Hose

Courtesy of SUBARU OF AMERICA, INC.
