Basic Inspection

Perform the following inspection procedures and repair or replace defective parts.

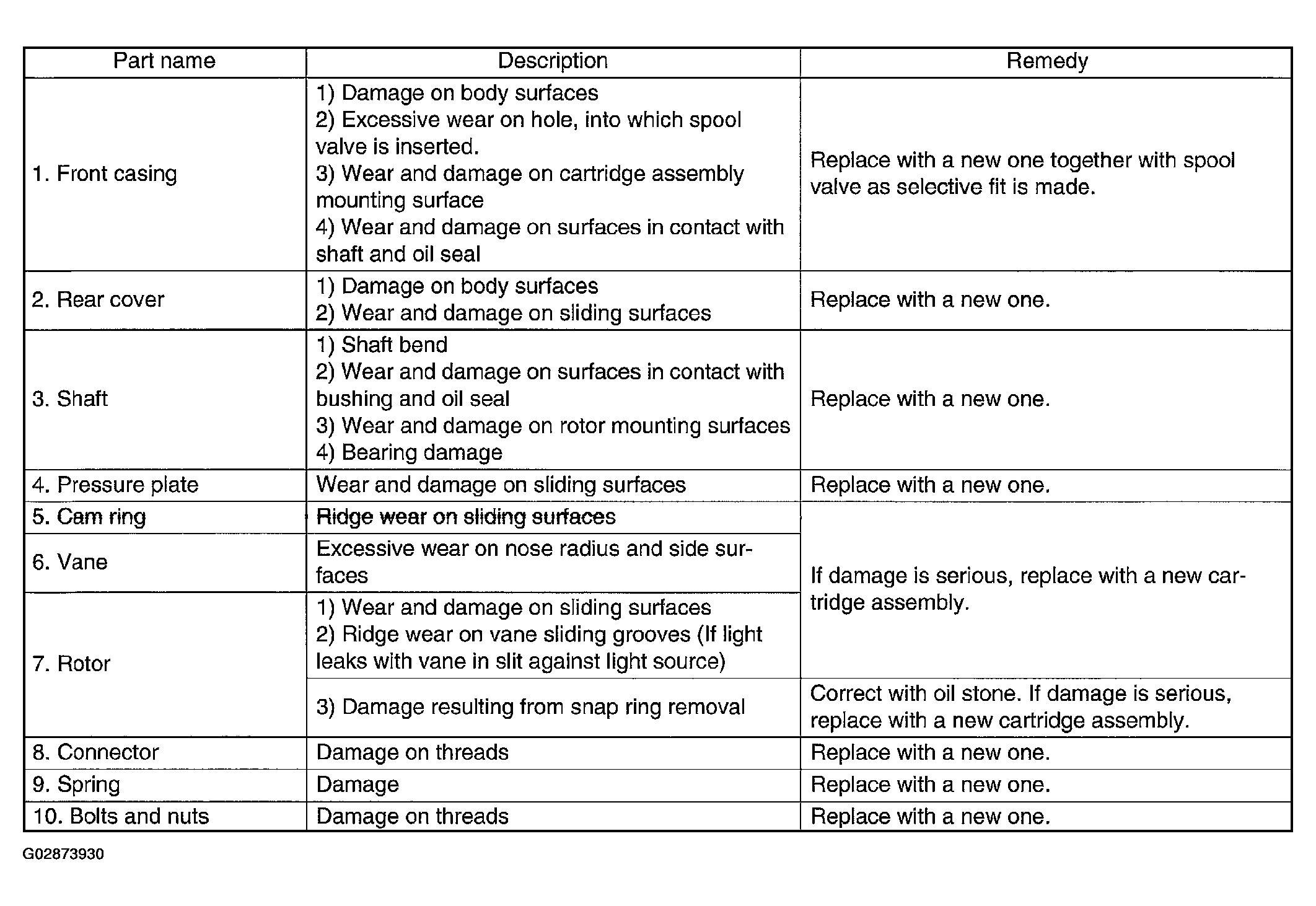

Fig 1: Basic Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

• In accordance with the following table, check all removed parts for wear and damage, and make repair or replacement if necessary.

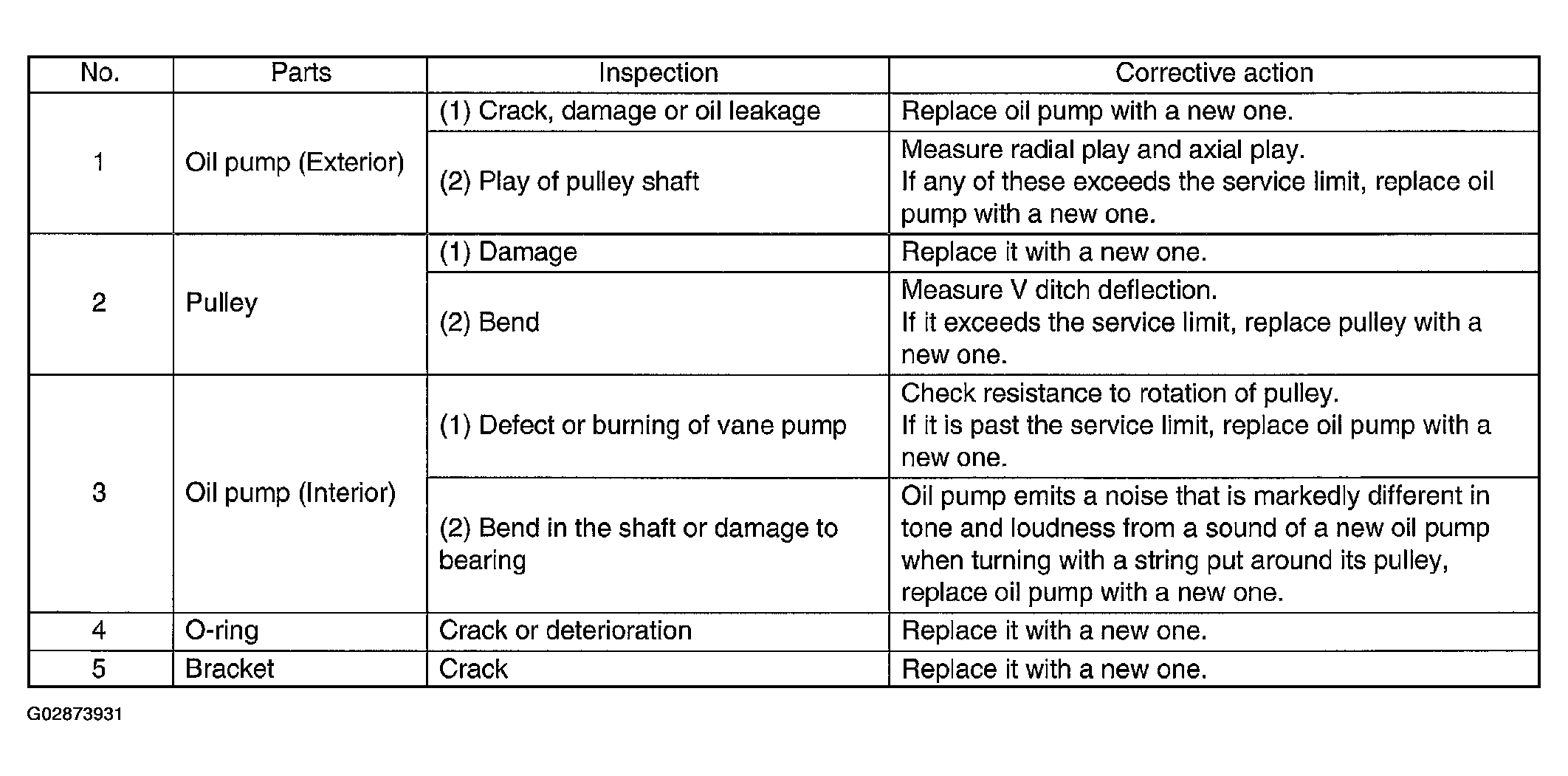

  Fig 2: Oil Pump Basic Inspection Specification Chart

  Courtesy of SUBARU OF AMERICA, INC.
