Oil Pump
Oil Pump
NOTE:
The illustration for 2.5 L model is shown below. (Not shown for 3.0 L model because it cannot be disassembled.)

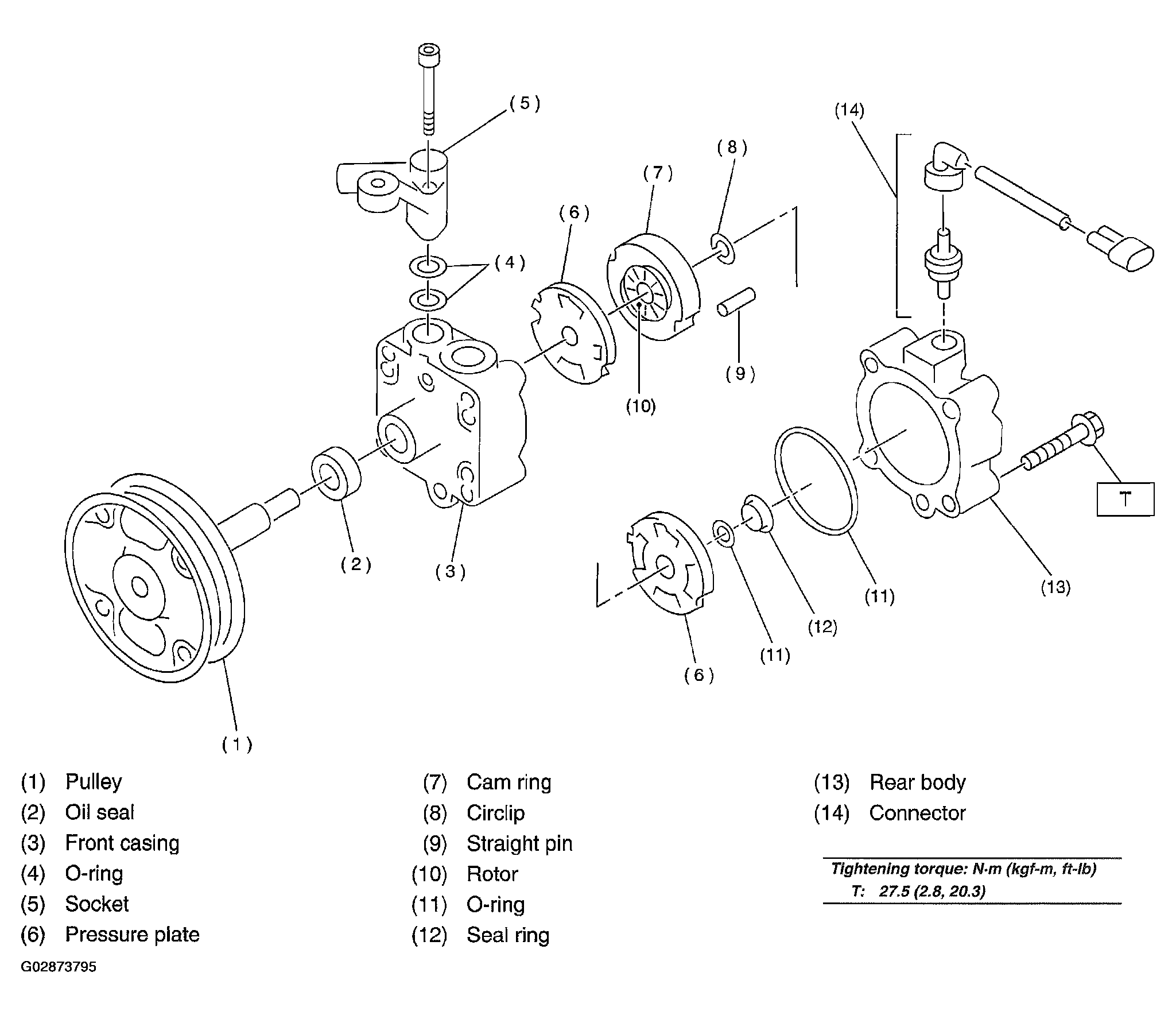

Fig 1: Exploded View Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
