Section 9 (Clutch System)
>>
General Description
>>
Component
>>
Clutch Assembly
Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.

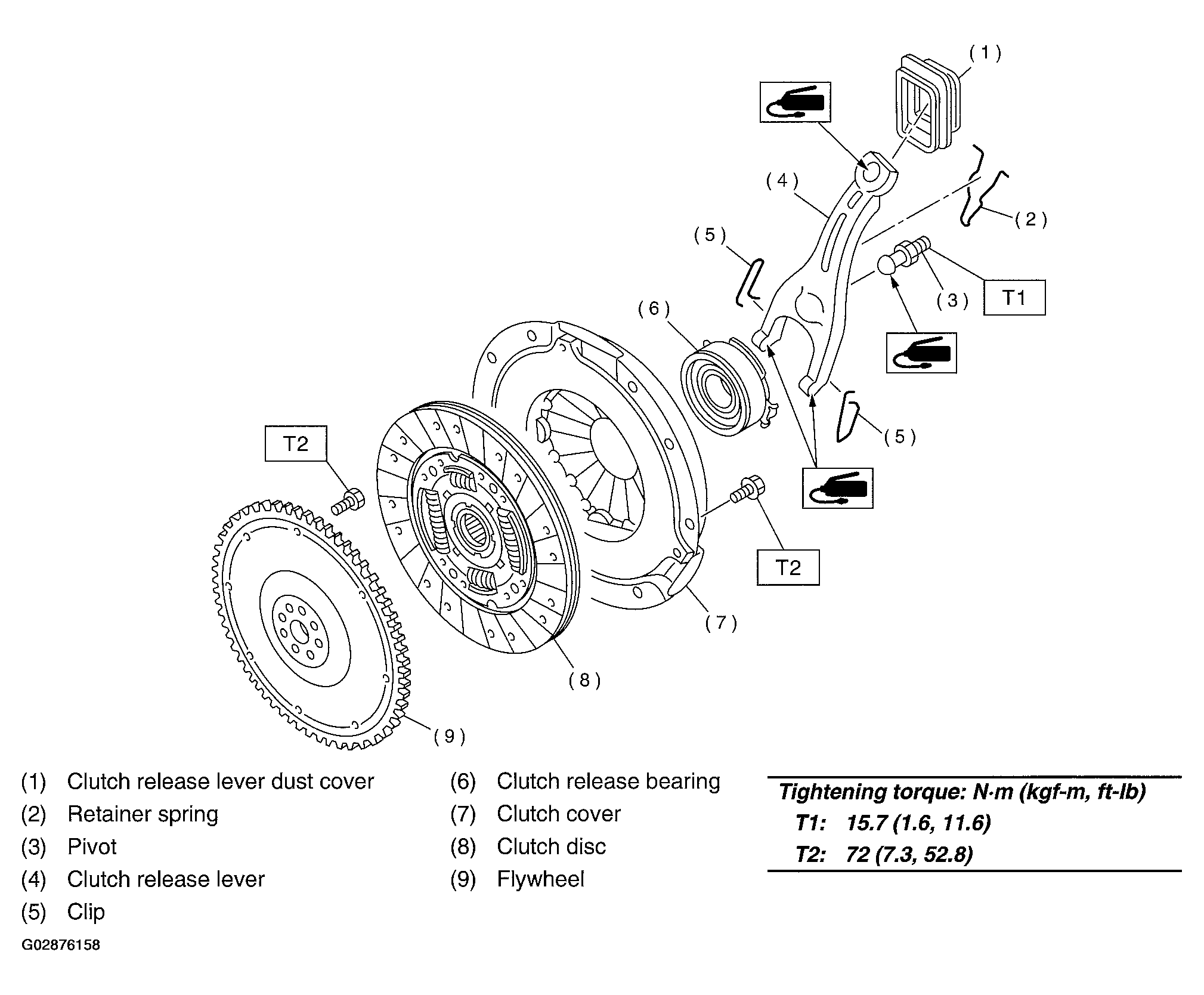

Fig 1: Clutch Assembly Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
