Front Strut Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza and 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel.
  2. Remove the bolt securing brake hose from strut. See Fig 1.
  3. Scribe an alignment mark on the camber adjusting bolt which secures strut to housing.
  4. Remove the bolt securing the ABS sensor harness. See Fig 2.
    CAUTION: While holding the head of adjusting bolt, loosen self-locking nut.
  5. Remove the 2 bolts securing housing to strut.
  6. Remove the 3 nuts securing strut mount to body. See Fig 3.

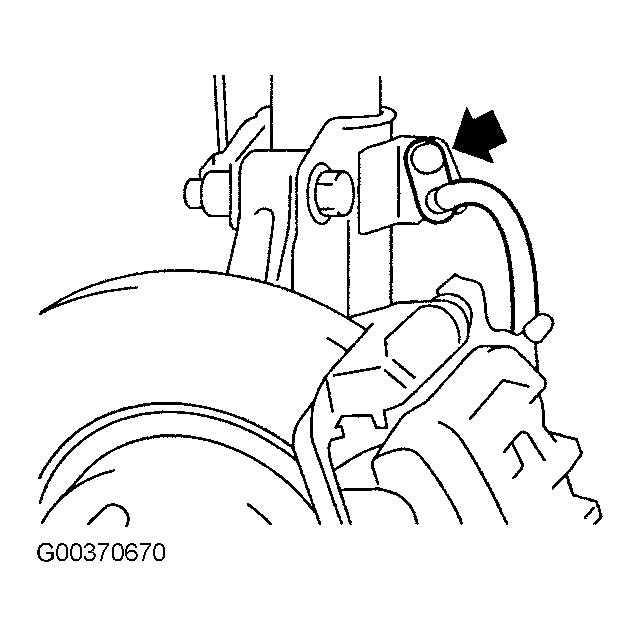

Fig 1: Removing Bolt Securing Brake Hose From Strut
G00370670Courtesy of SUBARU OF AMERICA, INC.

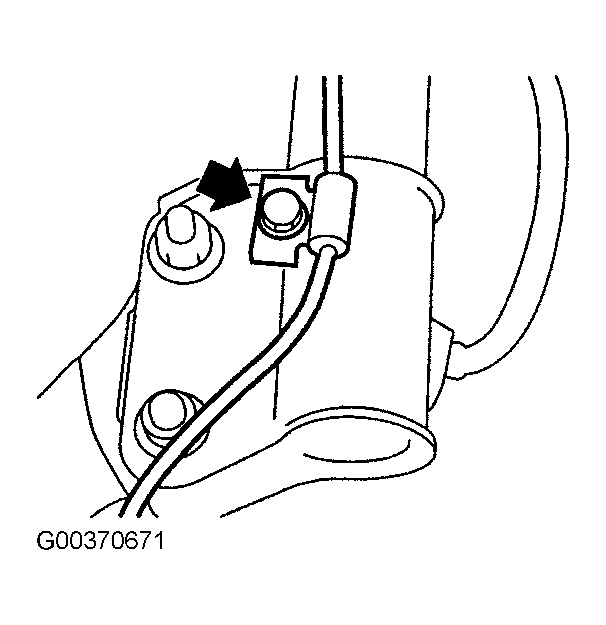

Fig 2: Removing Bolt Securing ABS Sensor Harness
G00370671Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Removing Nuts Securing Strut Mount To Body
G00370650Courtesy of SUBARU OF AMERICA, INC.
