Diagnosis & Repair

For diagnosis, see Fig 1 and Fig 2 .

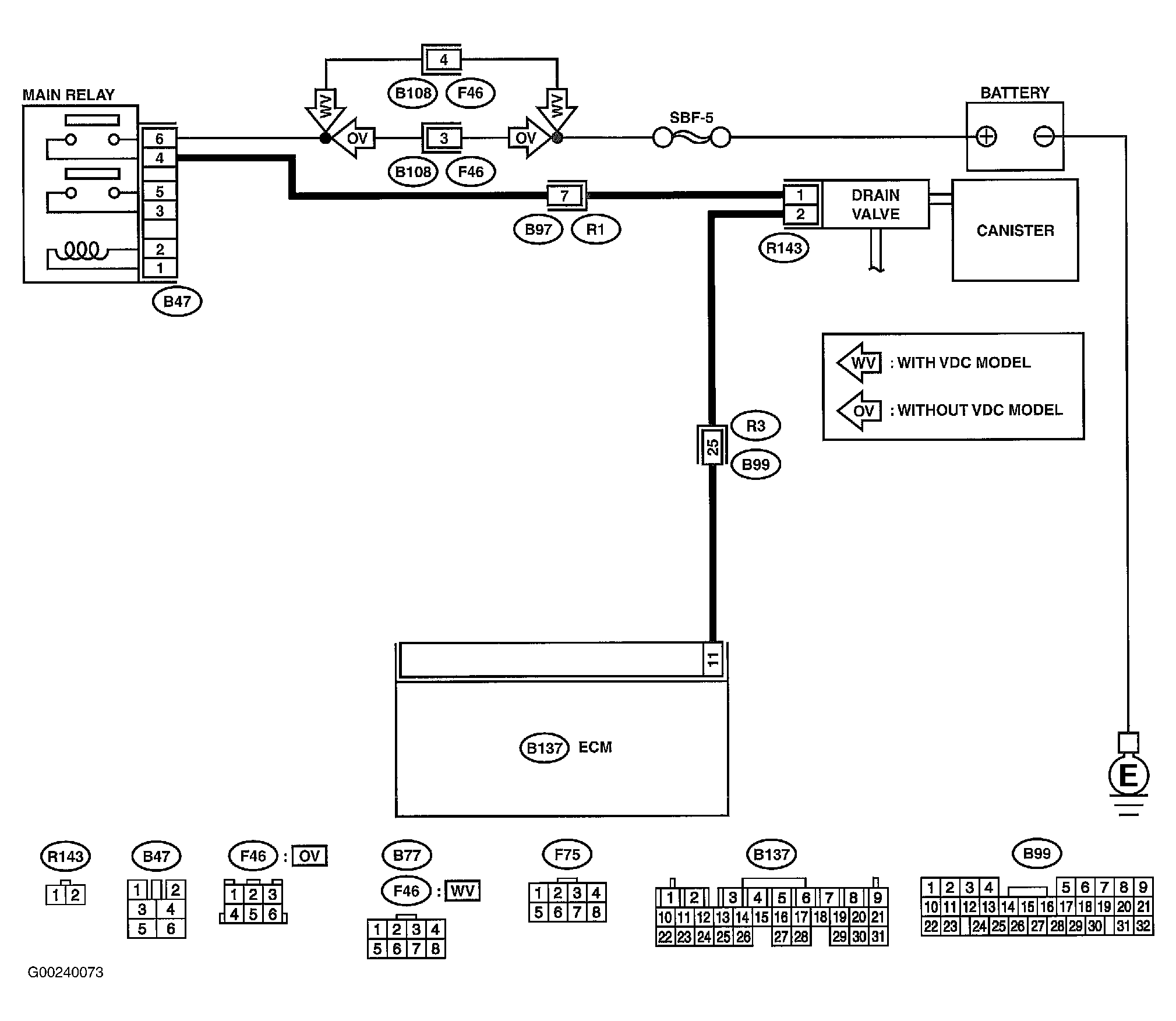

Fig 1: DTC P1443 Diagnostic Procedure (1 Of 2)
G00240073Courtesy of SUBARU OF AMERICA, INC.

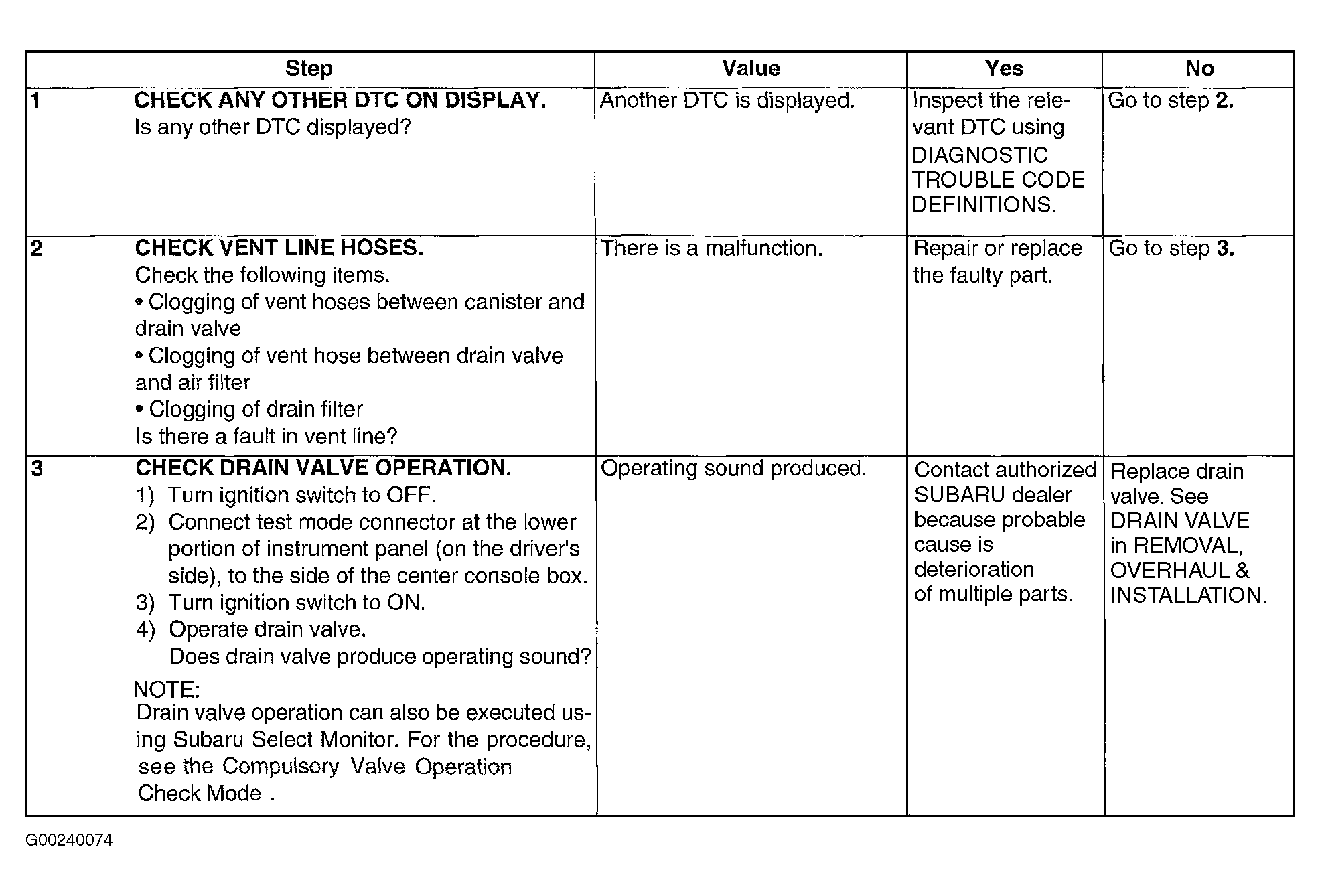

Fig 2: DTC P1443 Diagnostic Procedure (2 Of 2)
G00240074Courtesy of SUBARU OF AMERICA, INC.
