Combination Meter: Odometer/TRIPMETER: Specification

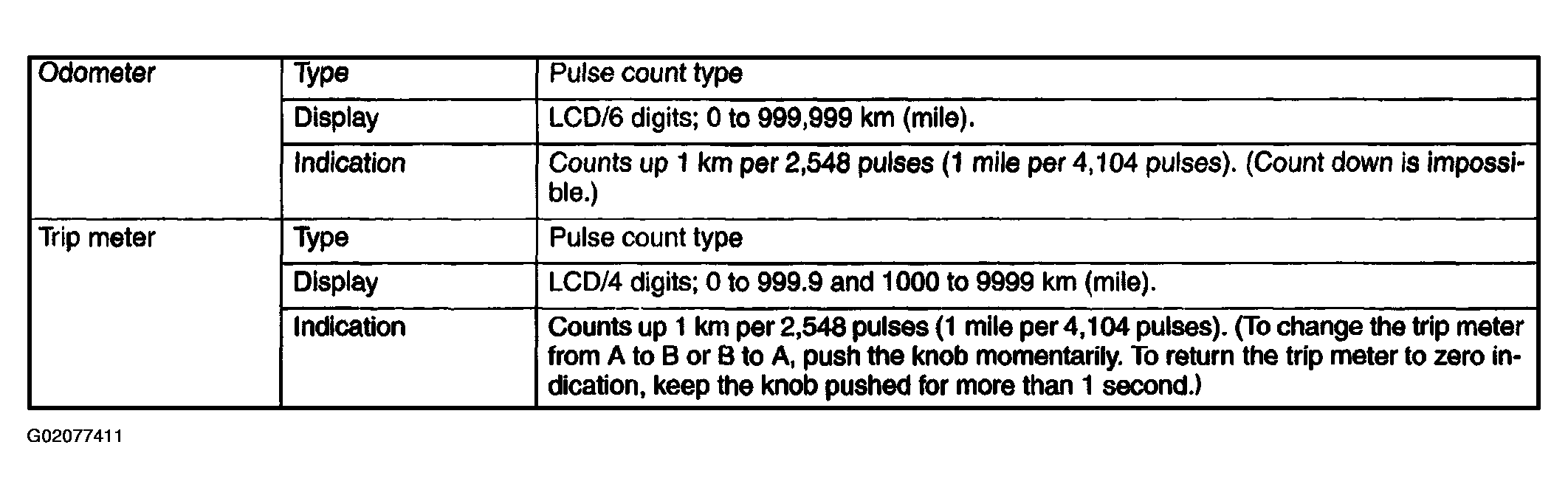

Fig 1: Identifying Odometer/Tripmeter Specification Chart

G02077411

Courtesy of SUBARU OF AMERICA, INC.
