Inner Rearview Minor: Removal

  1. Turn mirror base 90 degrees clockwise or counterclockwise to remove it.
    Fig 1: Turning Mirror Base 90 Degrees
    G02872614Courtesy of SUBARU OF AMERICA, INC.
  2. Remove spring from mirror base.

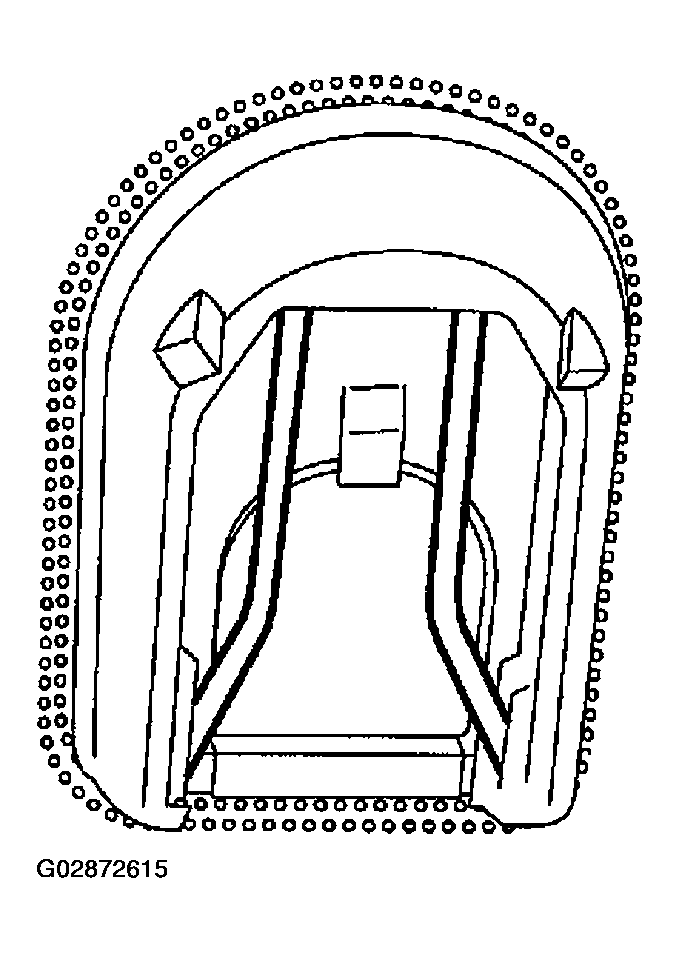

    Fig 2: Removing Spring From Mirror Base
    G02872615Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Be careful not to damage the mirror surface.
