Fender Panel: Removal

  1. Disconnect ground cable from battery.
  2. Remove side sill spoilers. < Ref. to REMOVAL , Side Sill Spoiler.> (If fitted)
  3. Remove side protectors and fender protectors. (OUTBACK)
  4. Remove front bumper face. < Ref. to REMOVAL , Front Bumper.>
  5. Remove headlights. < Ref. to REMOVAL , Headlight Assembly.>
  6. Remove mud guard. < Ref. to REMOVAL , Mud Guard.>
  7. Remove bolts and clips to remove front fender.

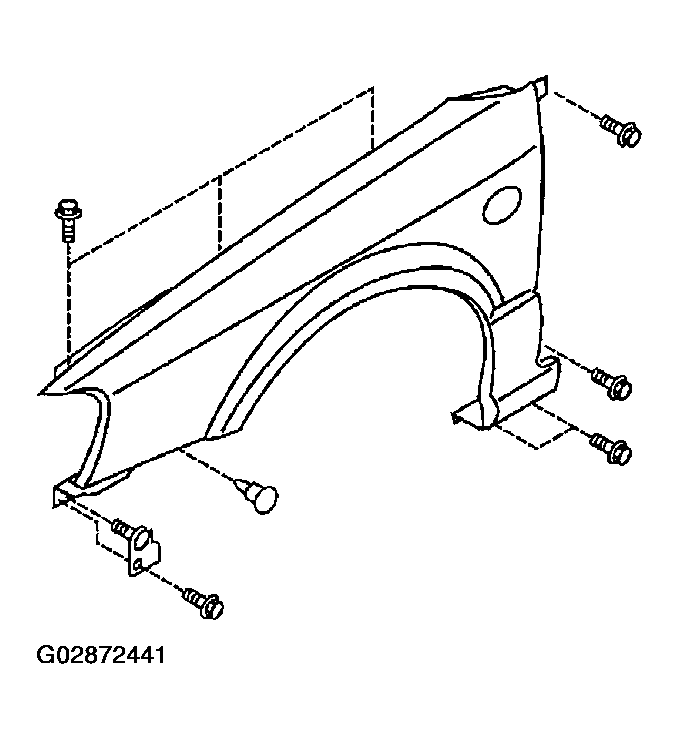

    Fig 1: Removing Front Fender
    G02872441Courtesy of SUBARU OF AMERICA, INC.
