Trunk Lid Lock Assembly: Removal

  1. Remove the trunk lid key cylinder rod.
  2. Remove the lock assembly cover (A).
  3. Remove the nut while holding the lock assembly. Remove the lock assembly (B).

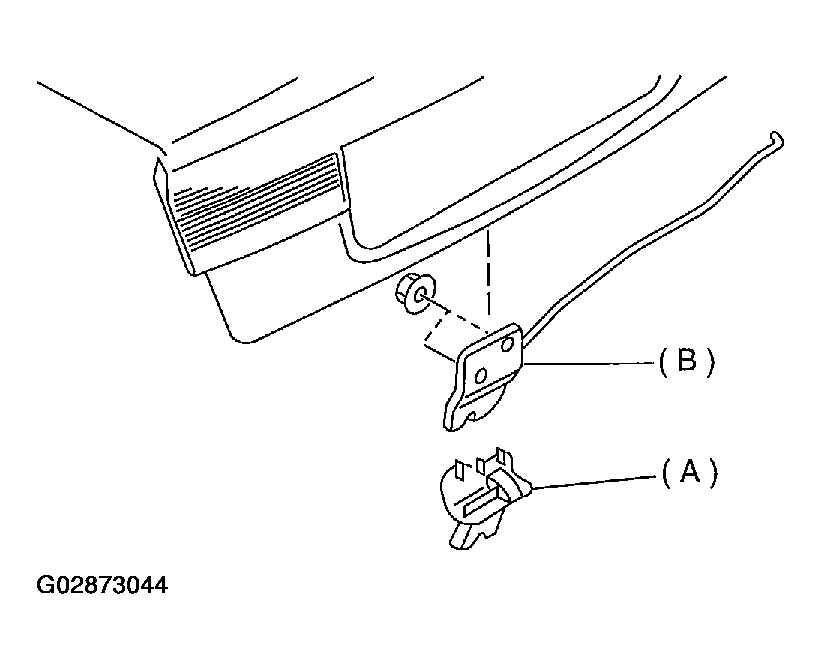

Fig 1: Removing Lock Assembly
G02873044Courtesy of SUBARU OF AMERICA, INC.
