Check Interrupt Relay Circuit

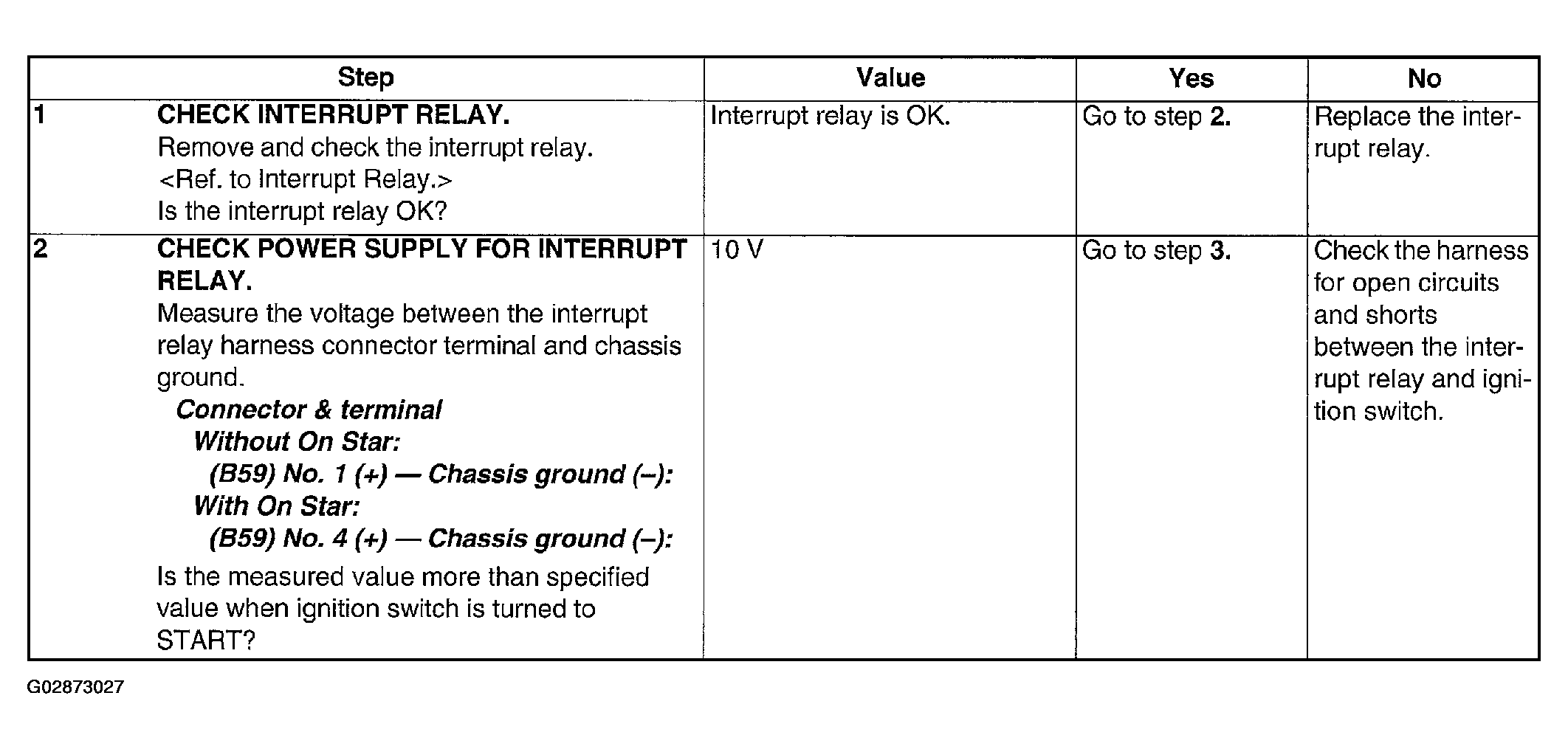

Fig 1: Checking Interrupt Relay Circuit Chart (1 Of 2)
G02873027Courtesy of SUBARU OF AMERICA, INC.

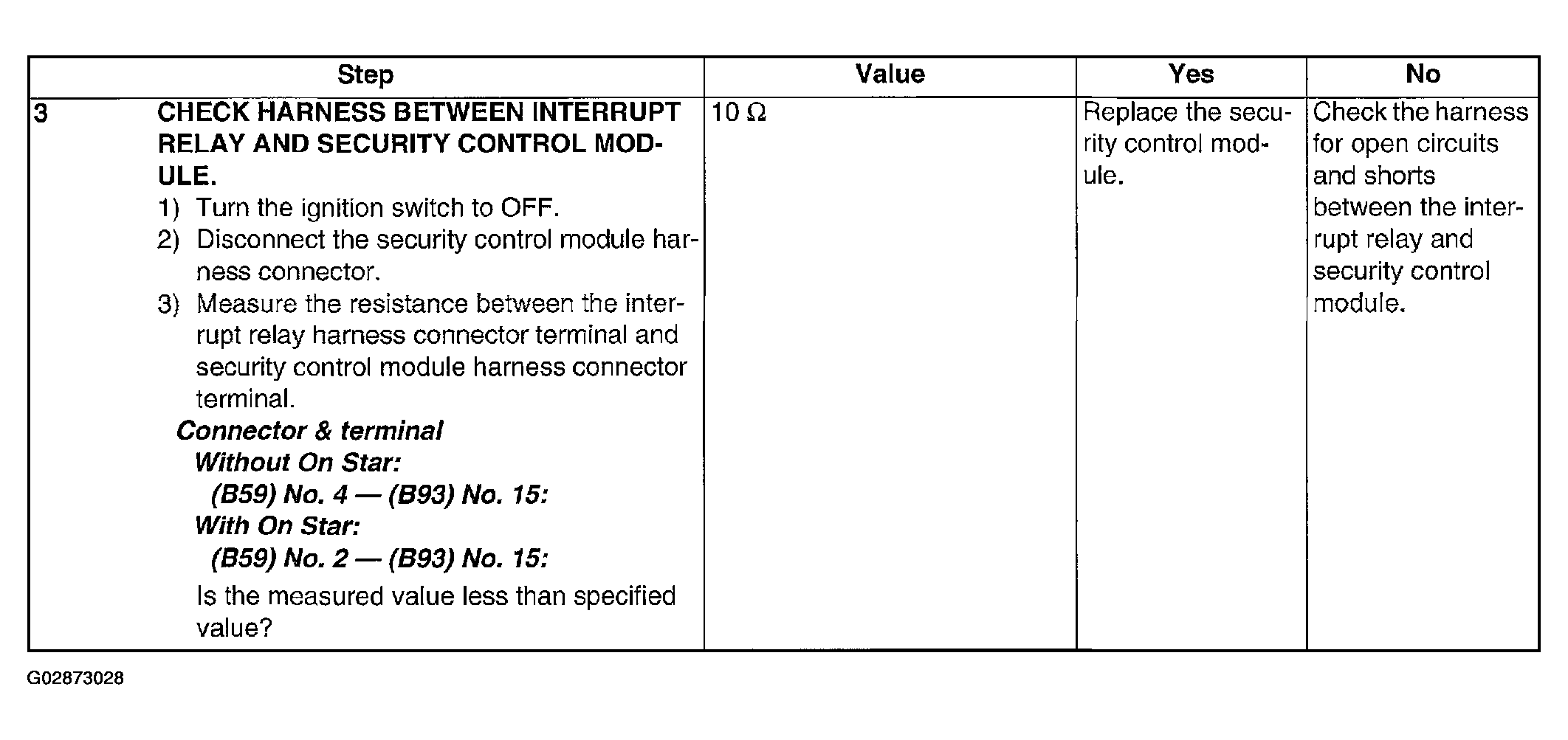

Fig 2: Checking Interrupt Relay Circuit Chart (2 Of 2)
G02873028Courtesy of SUBARU OF AMERICA, INC.
