Basic Diagnostic Procedure

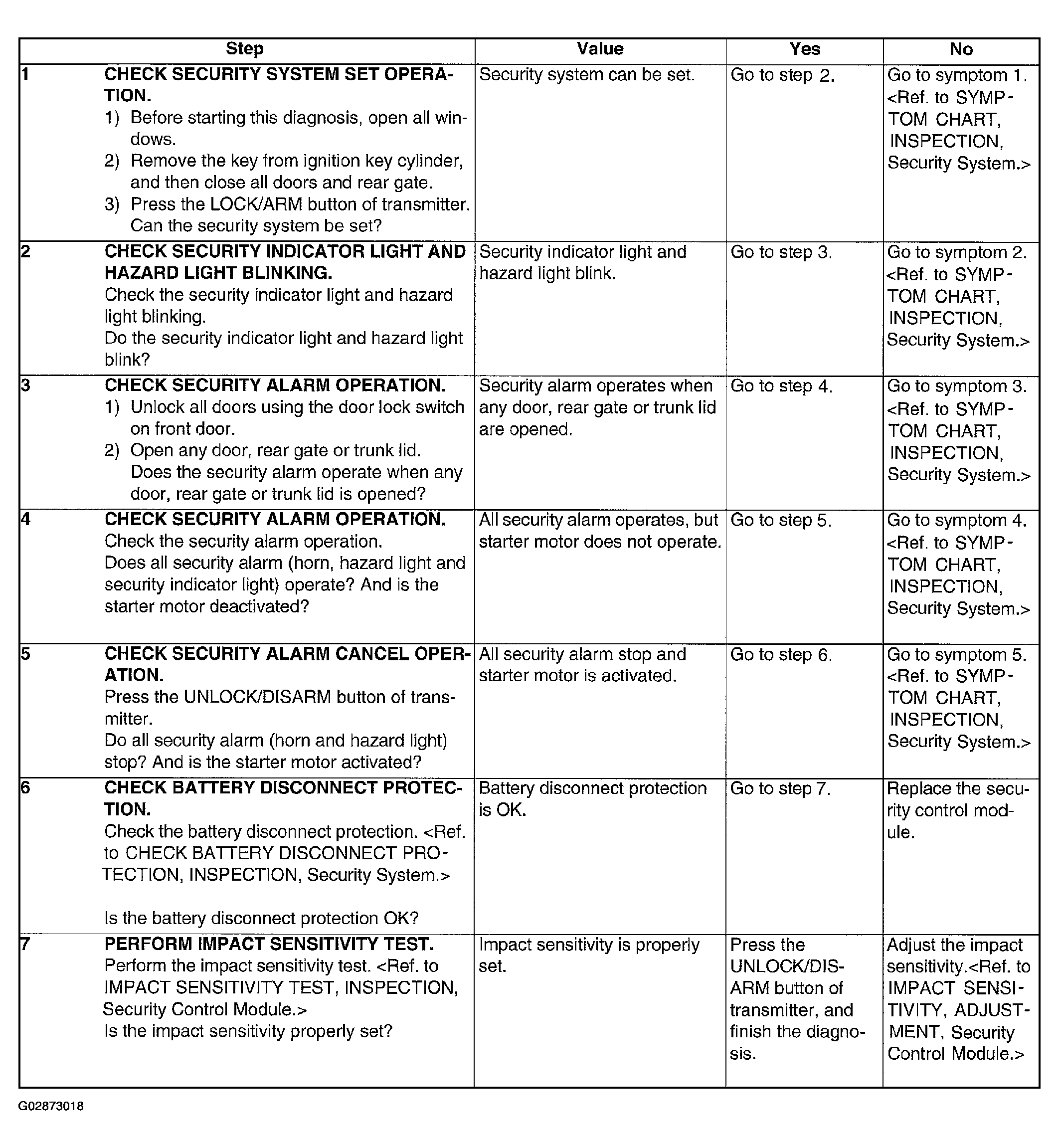

Fig 1: Security Basic Diagnostic Procedure Chart
G02873018Courtesy of SUBARU OF AMERICA, INC.
