Rear Inner Remote: Removal

  1. Remove the rear door trim. < Ref. to REMOVAL , Rear Door Trim.>
  2. Remove the sealing cover. < Ref. to REMOVAL , Rear Sealing Cover.>
  3. Remove the two rod joints.
  4. Remove the screw, and detach the inner remote.

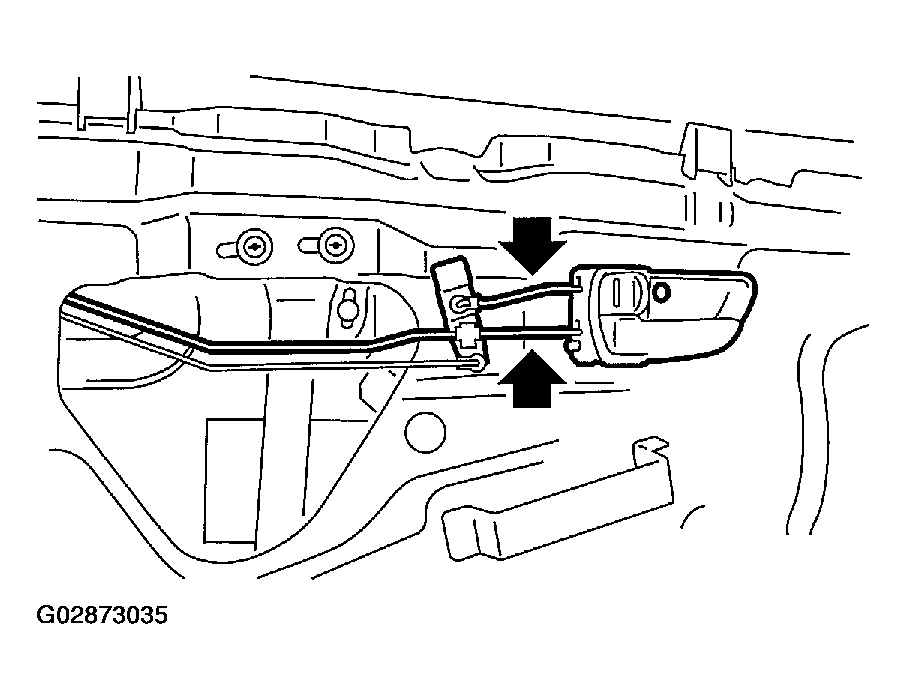

Fig 1: Detaching Inner Remote
G02873035Courtesy of SUBARU OF AMERICA, INC.
