Check Room Light Operation

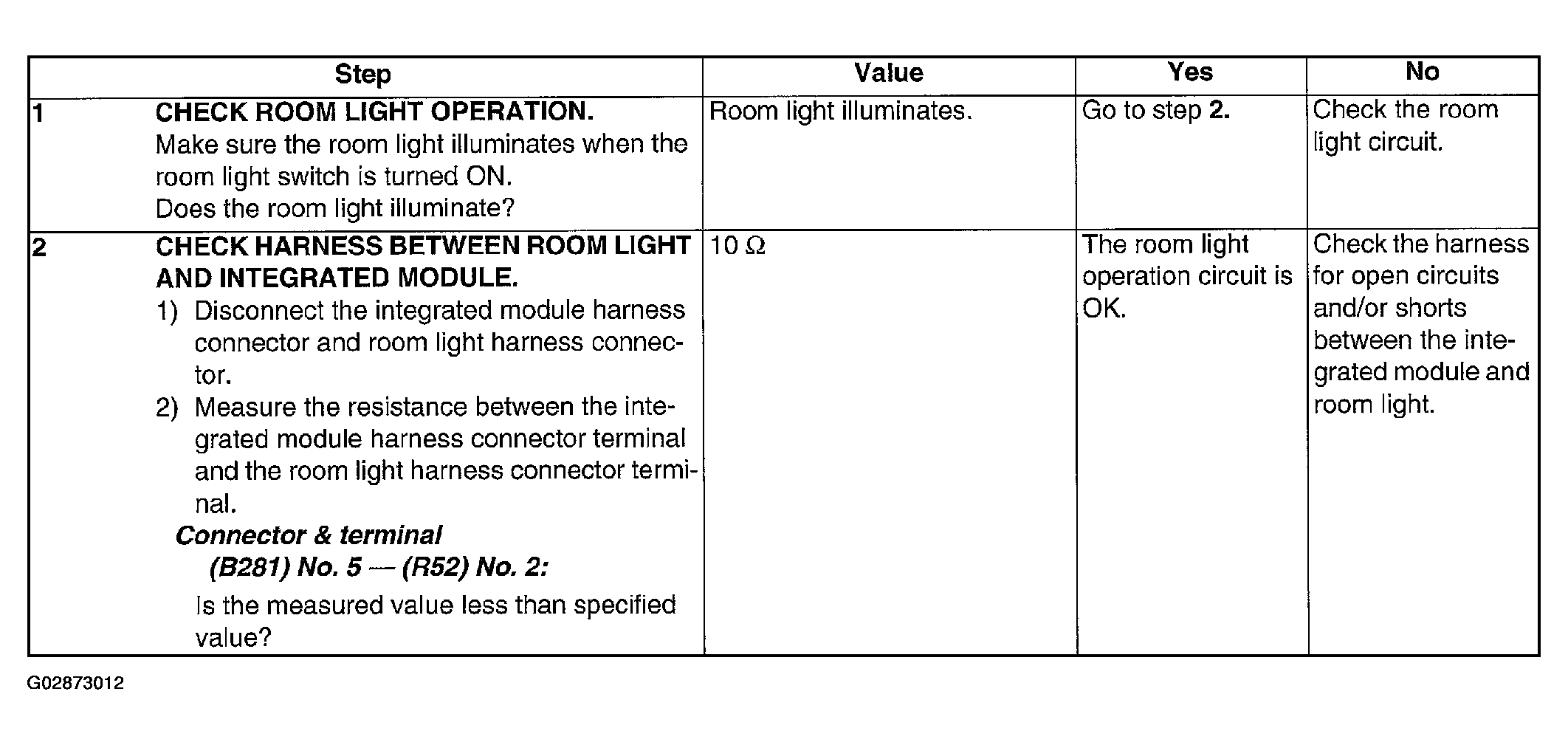

Fig 1: Checking Room Light Operation Chart
G02873012Courtesy of SUBARU OF AMERICA, INC.
