Home >> Subaru >> 2003 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security & Locks (All Models) >> Keyless Entry System >> Inspection >> Check Buzzer Chirp Setting

Check Buzzer Chirp Setting

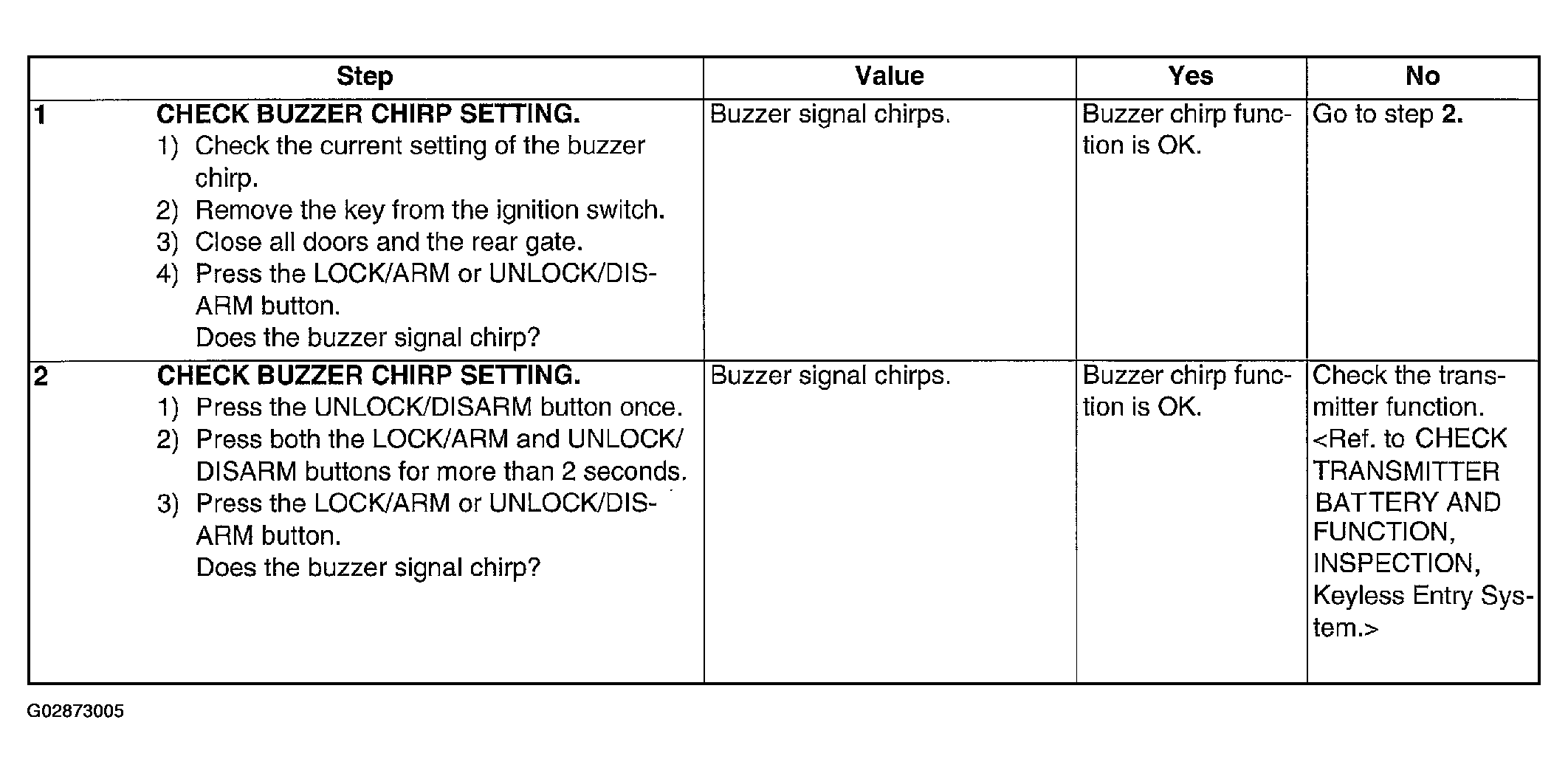

Fig 1: Checking Buzzer Chirp Setting Chart

G02873005

Courtesy of SUBARU OF AMERICA, INC.
