Keyless Entry System
>>
Inspection
>>
Symptom Chart
Symptom Chart

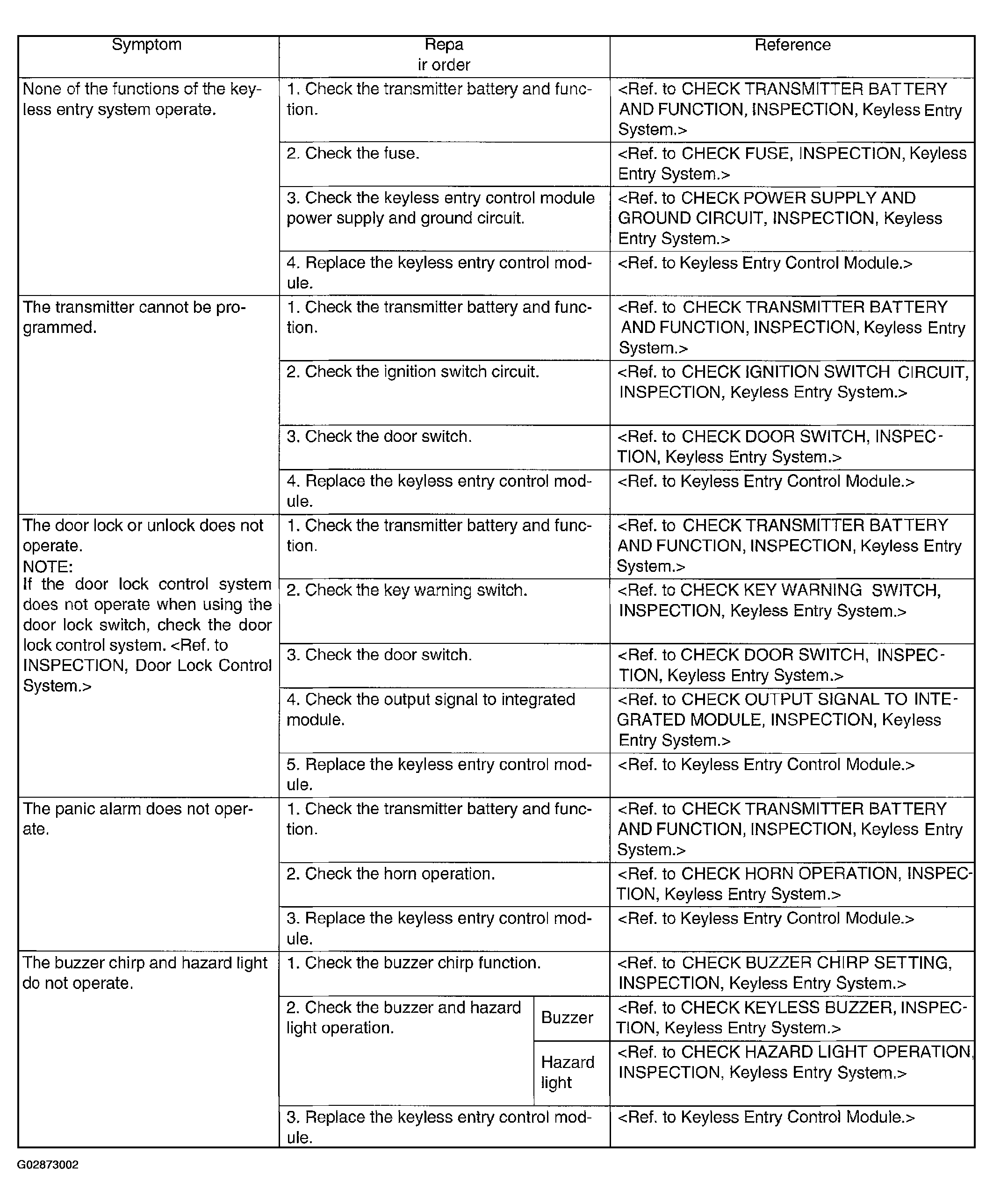

Fig 1: Keyless Entry Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

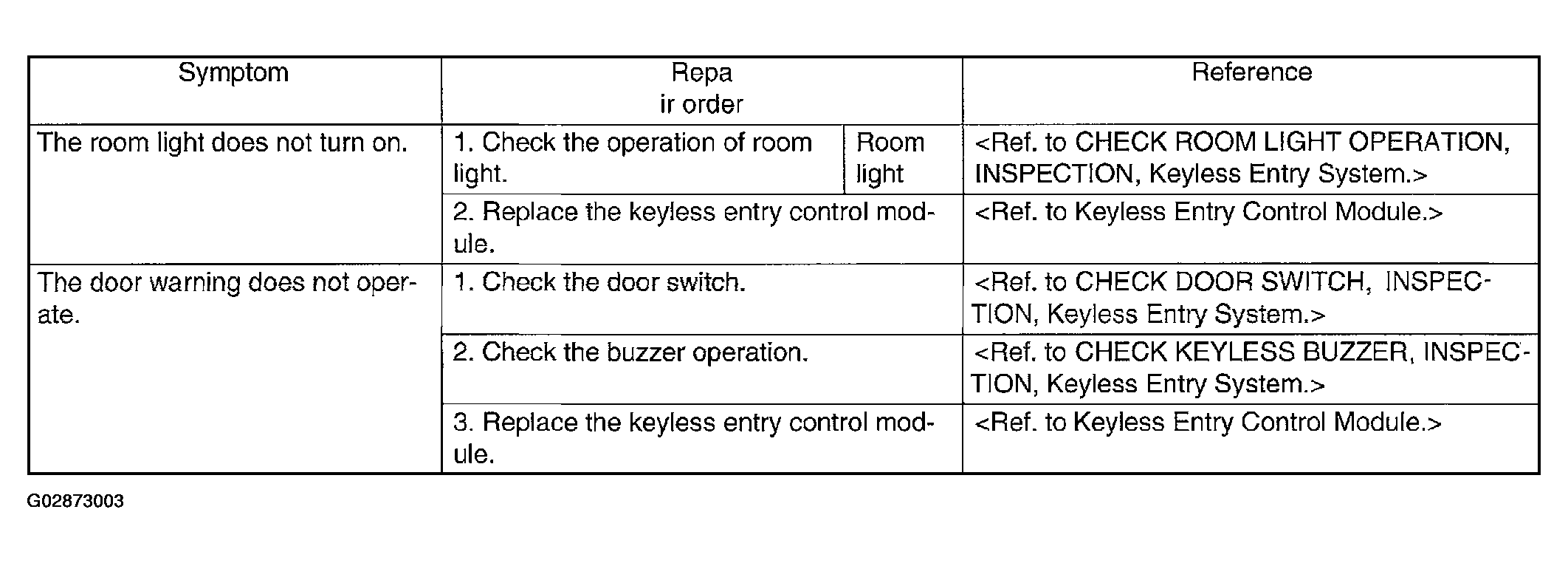

Fig 2: Keyless Entry Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
