Trunk Lid

  1. Remove the trunk trim. < Ref. to REMOVAL , Trunk Trim.>
  2. Remove the rod clamp. Remove the lock plate. Replace the key cylinder.

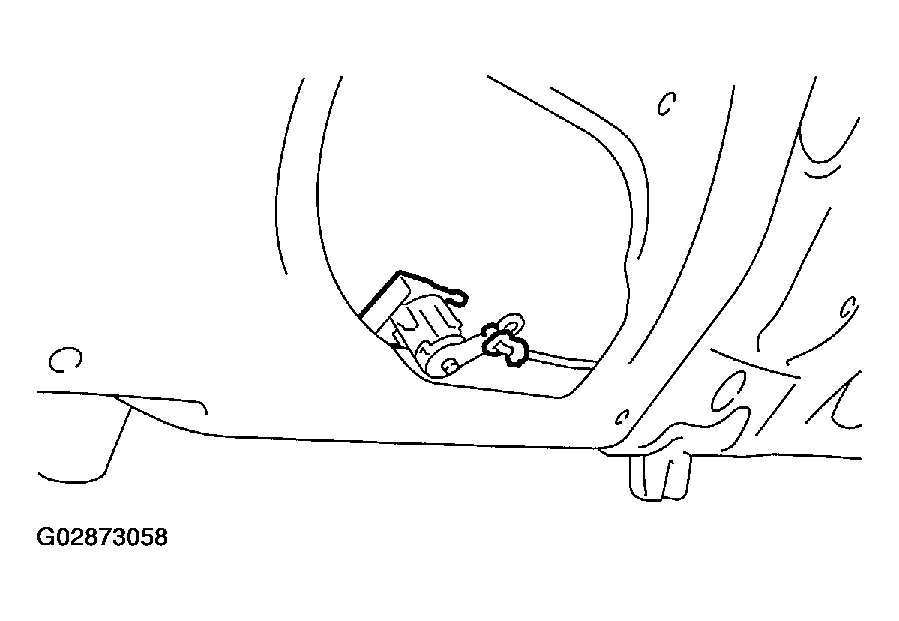

Fig 1: Removing Rod Clamp
G02873058Courtesy of SUBARU OF AMERICA, INC.
