Rear Gate

  1. Remove the rear gate lower trim. < Ref. to REMOVAL , Rear Gate Trim.>
  2. Remove the rod clamp. Remove the nut. Replace the key cylinder.

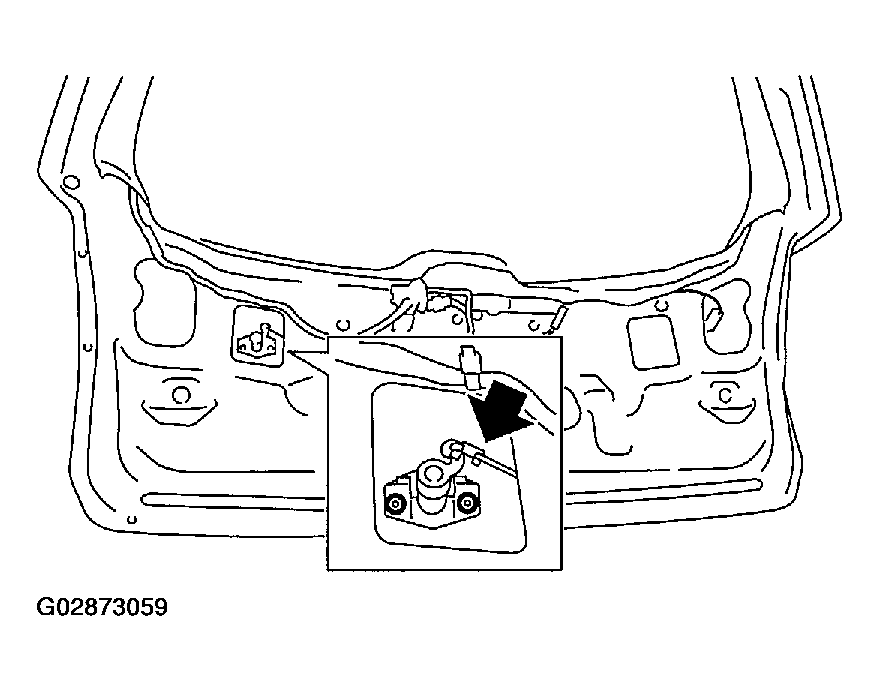

Fig 1: Removing Rod Clamp
G02873059Courtesy of SUBARU OF AMERICA, INC.
