Ignition Key Lock: Replacement

Disconnect ground cable from battery.
Remove the steering column. < Ref. to REMOVAL , Tilt Steering Column.>
Secure the steering column in a vise. Remove the bolt with a drill.

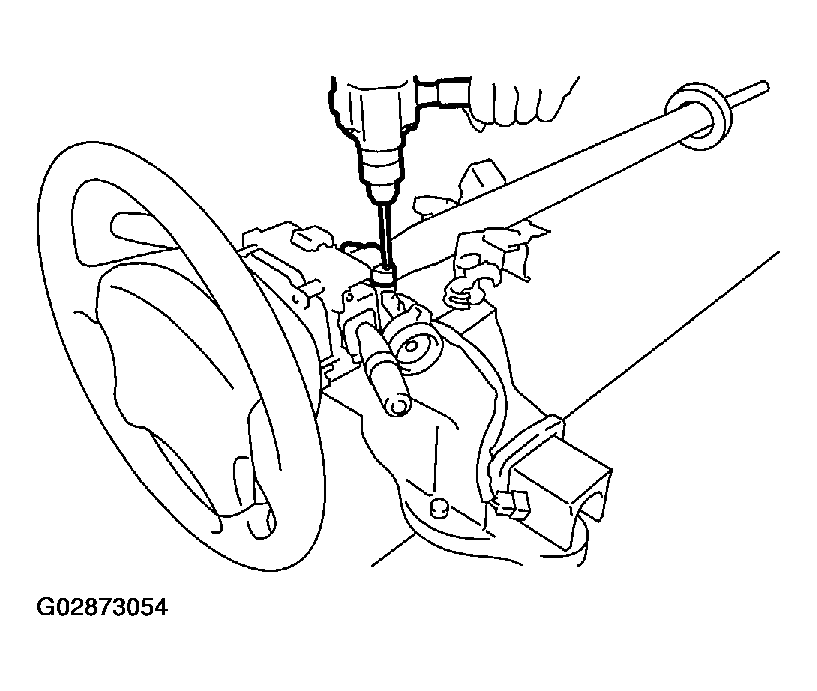

Fig 1: Removing Bolt With Drill
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition key lock.
Use a new torn bolt. Tighten the torn bolt to the end of the thread.

Fig 2: Tightening Torn Bolt To End Of Thread
Courtesy of SUBARU OF AMERICA, INC.
