Ignition Key Lock: Inspection

1. Remove the instrument panel lower cover.
2. Remove the lower column cover.
3. Unfasten the hold-down clip which secures the harness and disconnect the connector of the ignition switch from the body harness.
4. Turn the ignition key plate to each position and check the continuity between the terminals of the ignition connector.

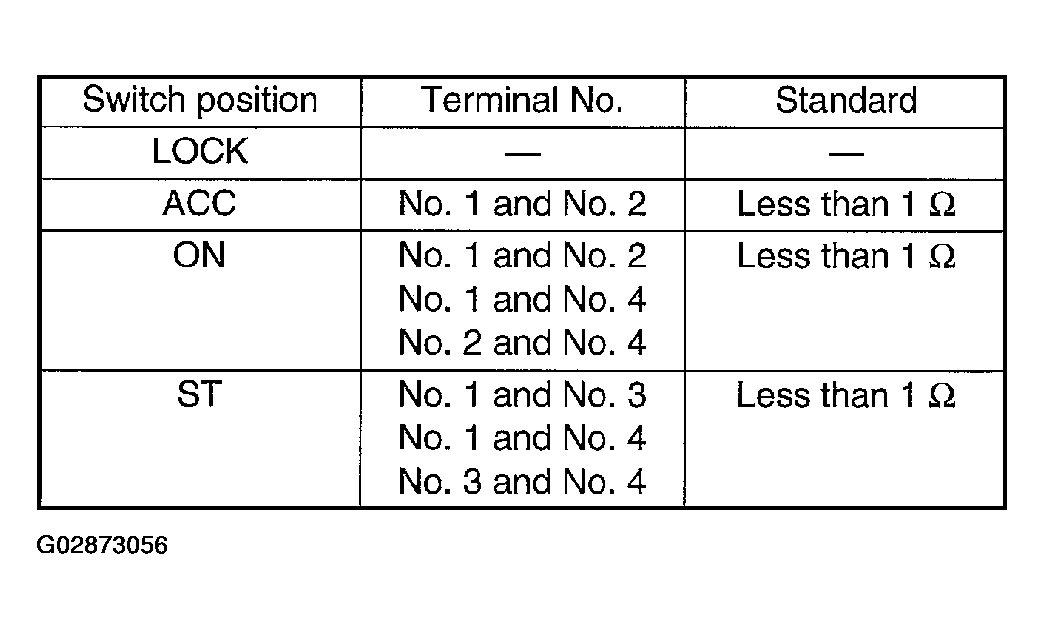

   Fig 1: Checking Continuity Between Terminals Of Ignition Connector

   Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the ignition switch.
