Front Hood Lock Assembly: Adjustment

Loosen the bolt. Adjust the lock assembly. While moving it up and down.

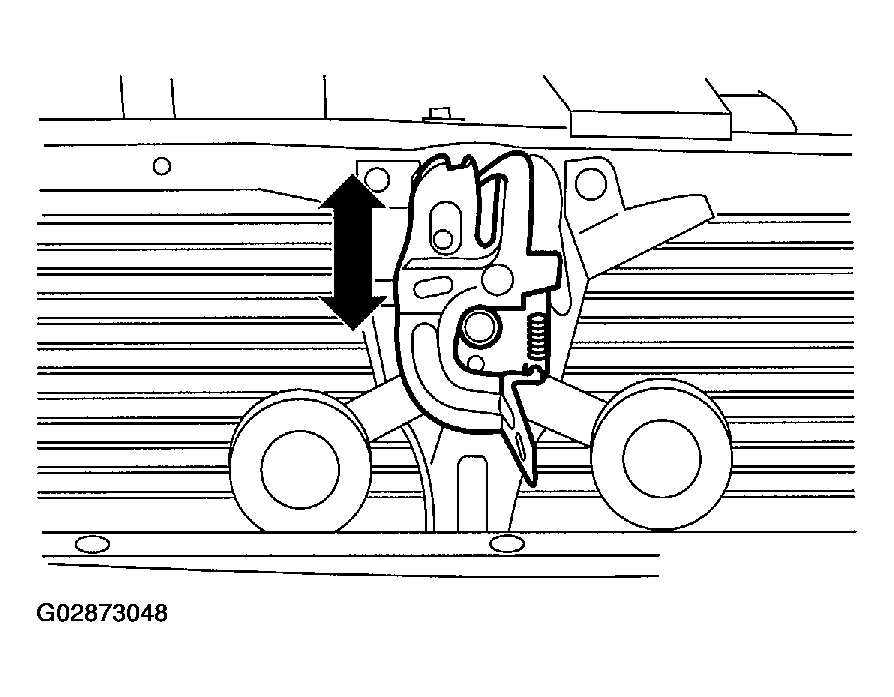

Fig 1: Adjusting Lock Assembly

G02873048

Courtesy of SUBARU OF AMERICA, INC.
