LH Side

Disconnect the battery terminals, and then remove the battery and battery carrier.

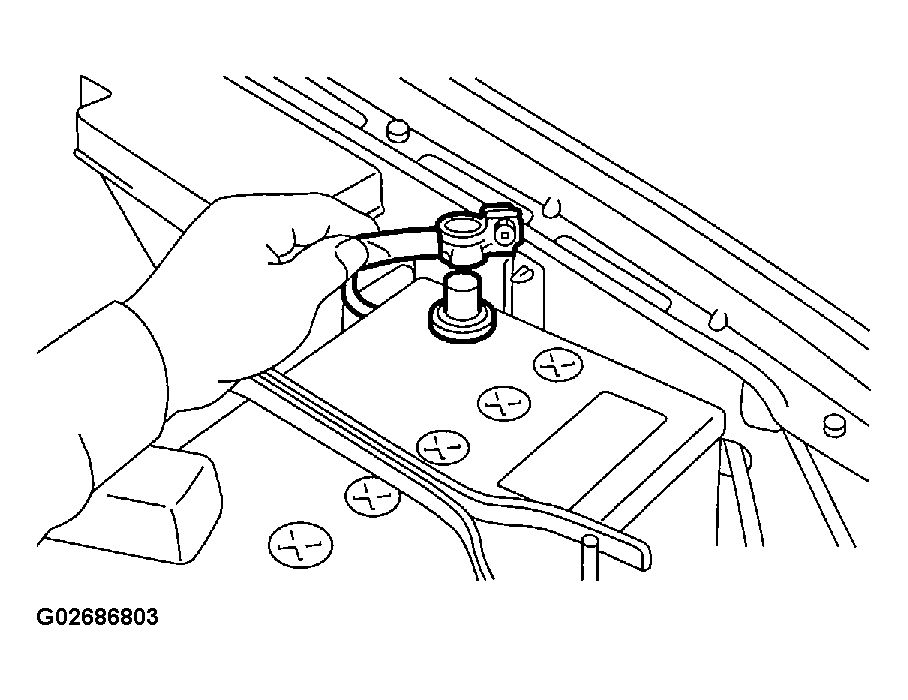

Fig 1: Disconnecting Battery Terminals
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the washer motor connector.

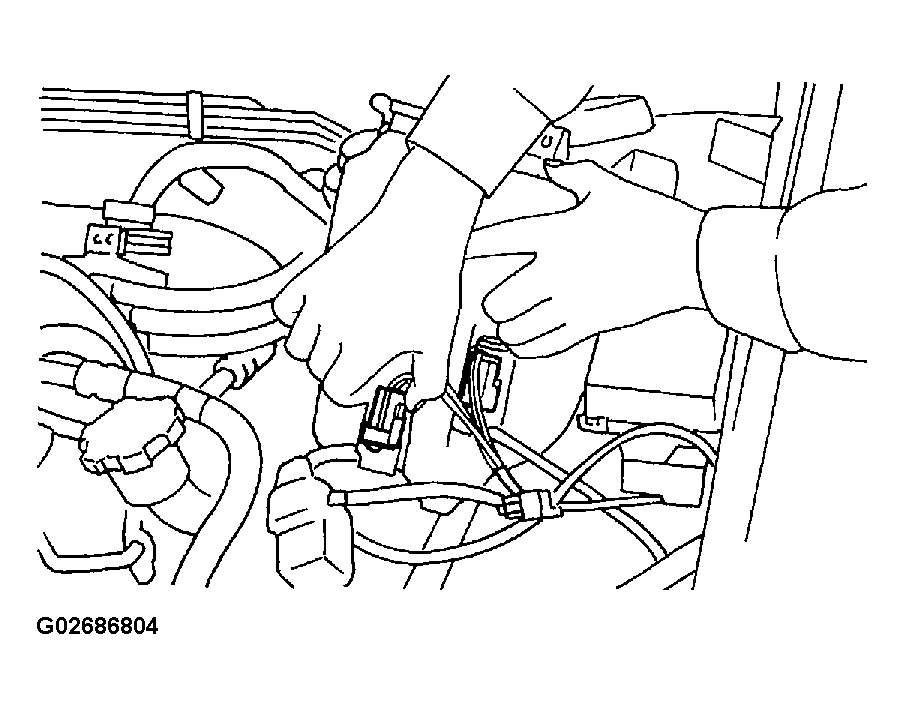

Fig 2: Disconnecting Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Remove the two bolts which hold the washer tank, then take the tank away from the working area.

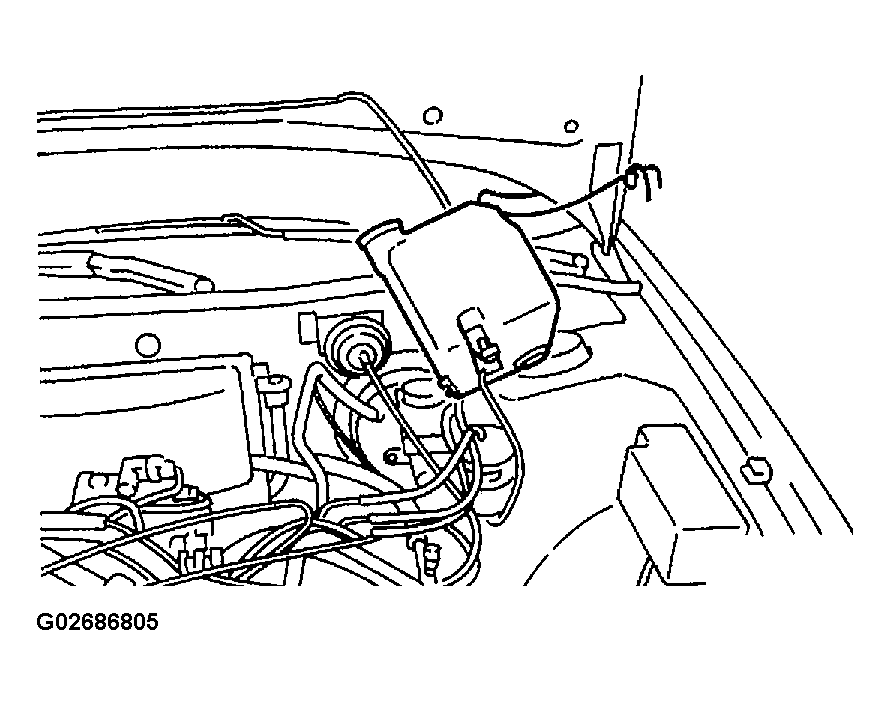

Fig 3: Placing Washer Tank Away From Working Area
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from ignition coil.

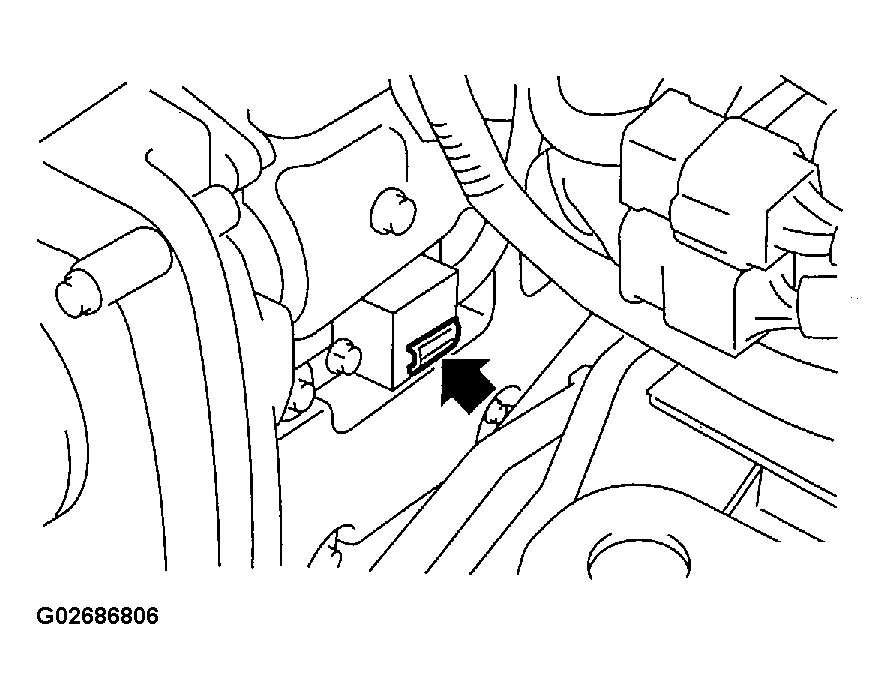

Fig 4: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition coil.

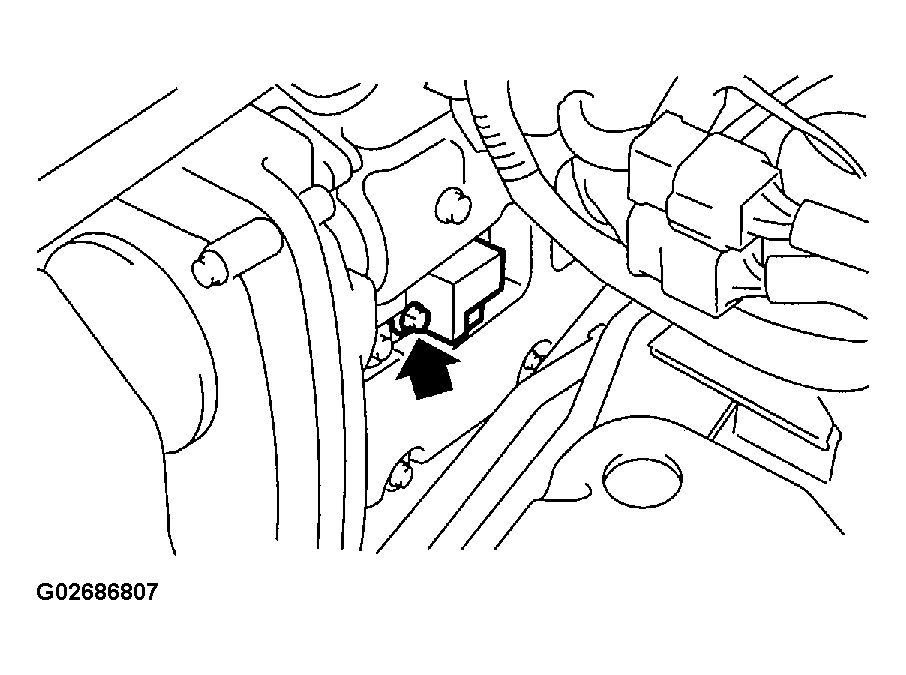

Fig 5: Removing Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plugs with the spark plug sockets.

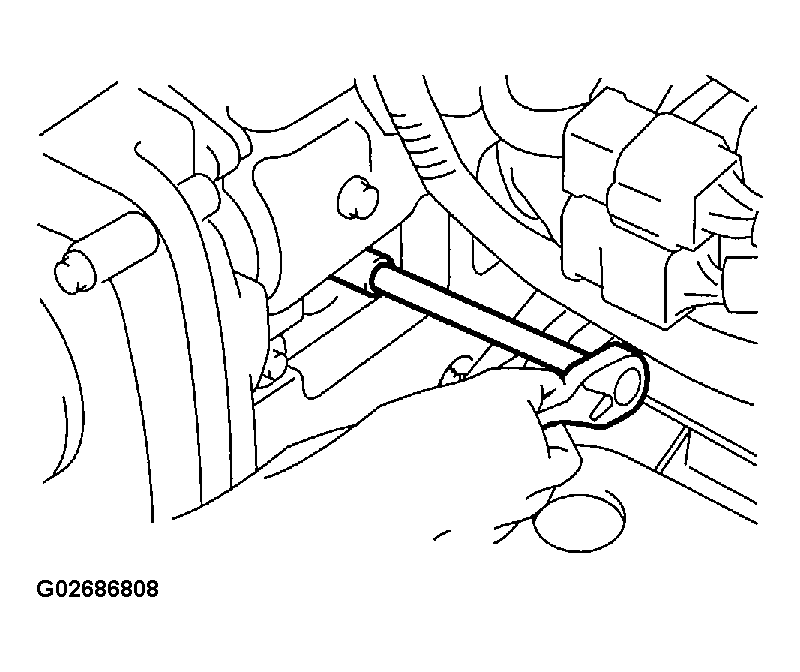

Fig 6: Removing Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
