Inhibitor Switch: Installation

  1. Connect the inhibitor switch harness connector to inhibitor switch.
  2. Install the inhibitor switch to transmission case.

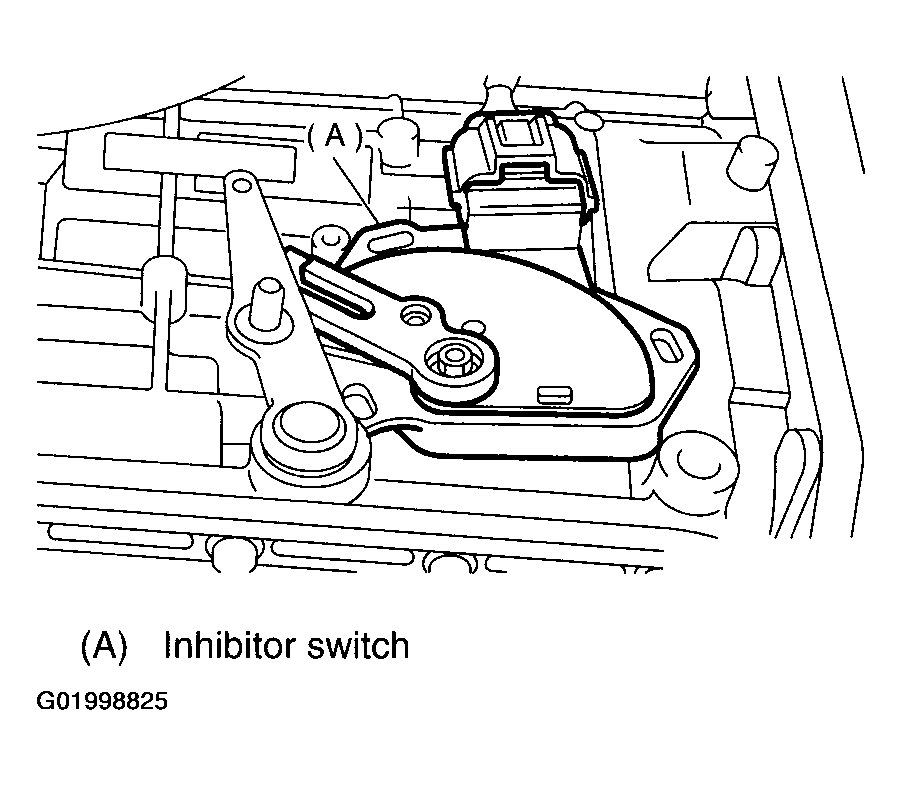

    Fig 1: Installing Inhibitor Switch To Transmission Case
    G01998825Courtesy of SUBARU OF AMERICA, INC.
  3. Move the range select lever to neutral position.
  4. Tighten inhibitor switch bolts using the ST.

    ST 499267300 STOPPER PIN

    1. Tightening torque:  3.4 N.m (0.35 kgf-m, 2.5 ft-lb)

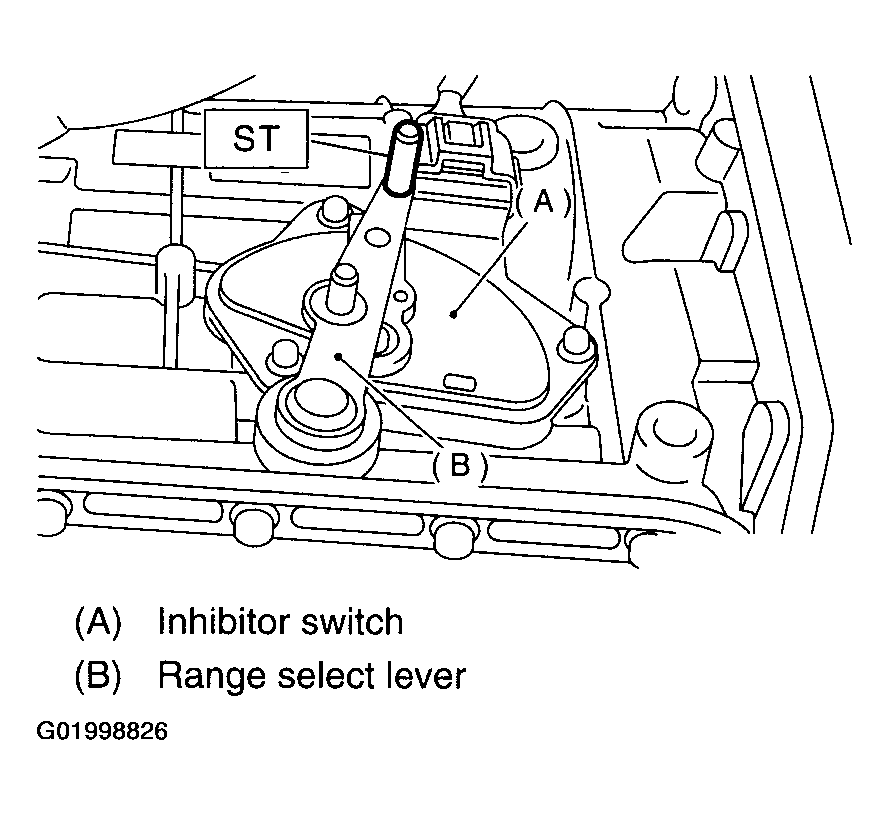

    Fig 2: Tightening Inhibitor Switch Bolts Using ST
    G01998826Courtesy of SUBARU OF AMERICA, INC.
  5. Install the select cable to range select lever.
  6. Install the plate assembly to transmission.

    Tightening torque:

    1. T:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

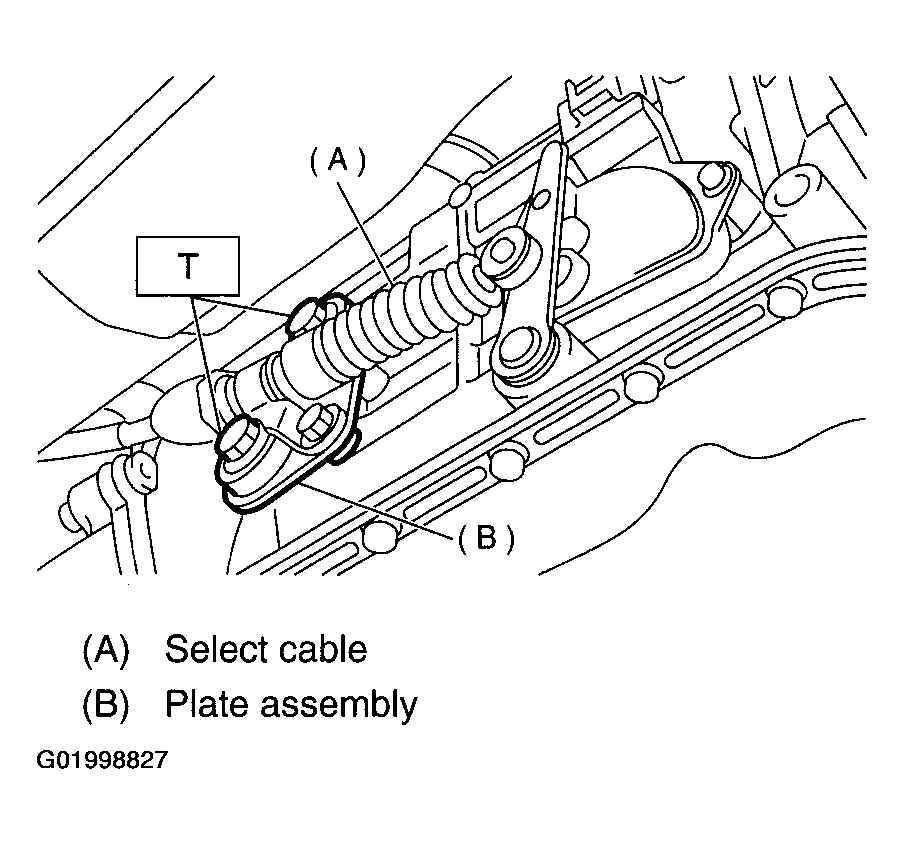

    Fig 3: Installing Plate Assembly To Transmission
    G01998827Courtesy of SUBARU OF AMERICA, INC.
  7. Install the snap pin to range select lever.

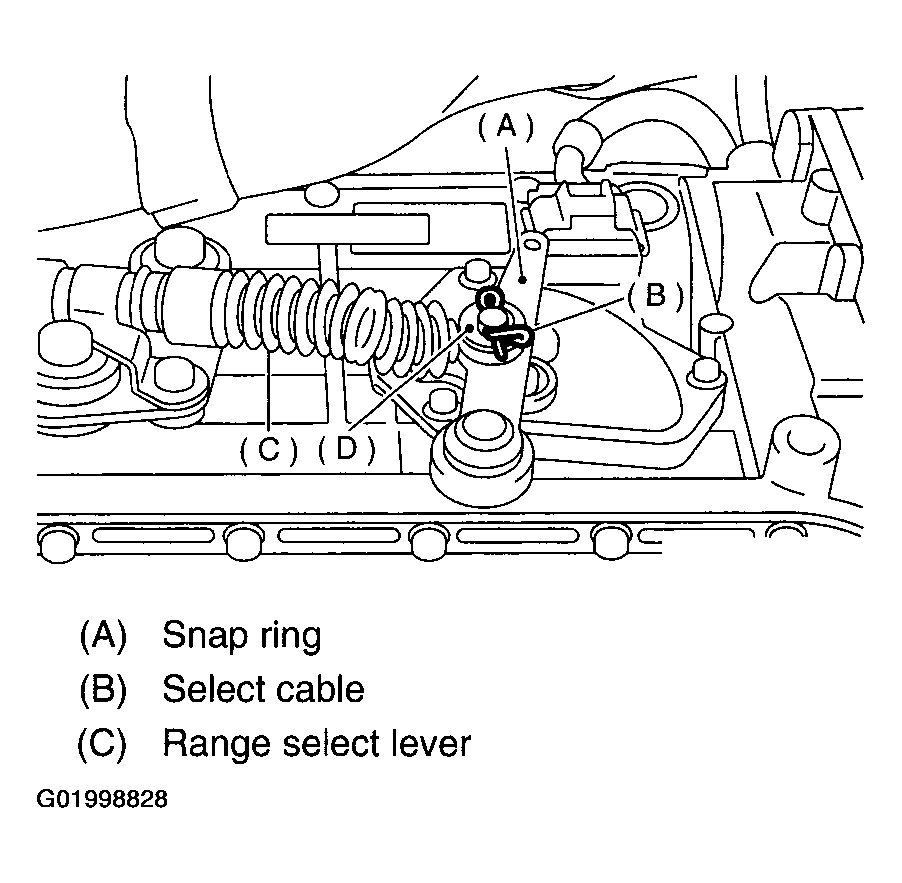

    Fig 4: Installing Snap Pin To Range Select Lever
    G01998828Courtesy of SUBARU OF AMERICA, INC.
  8. Install the front exhaust pipe together with the center exhaust pipe (Non-turbo model). See INSTALLATION , Front Exhaust Pipe.
  9. Install the center exhaust pipe (Turbo model). See INSTALLATION , Center Exhaust Pipe.
  10. Lower the vehicle.
  11. Install the inhibitor switch connector to stay.
  12. Connect the inhibitor switch connector.

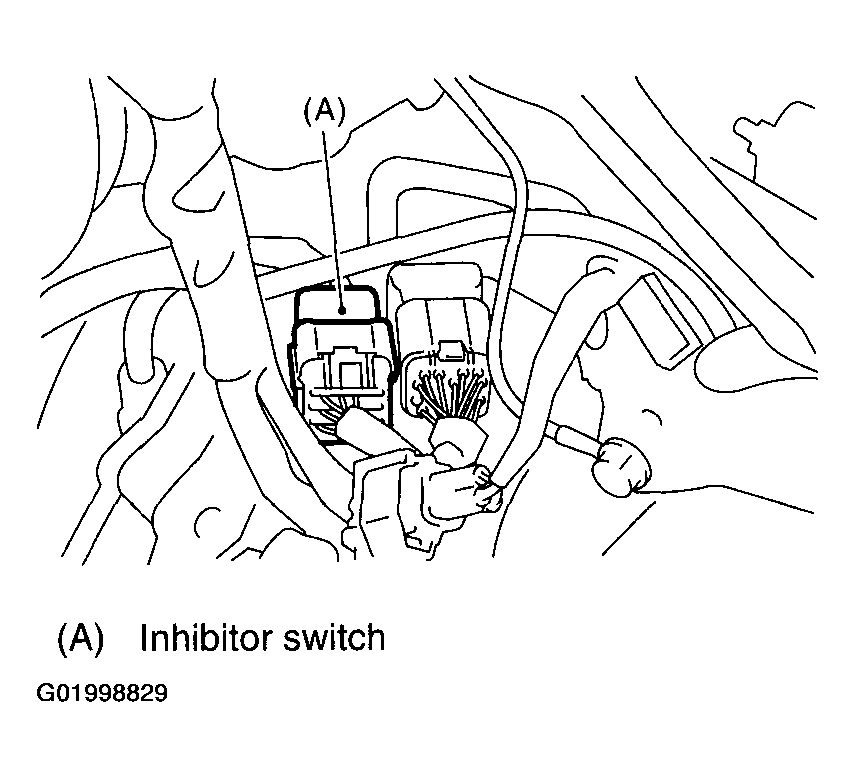

    Fig 5: Connecting Inhibitor Switch Connector
    G01998829Courtesy of SUBARU OF AMERICA, INC.
  13. Install the air cleaner case (Non-turbo model). See INSTALLATION , Air Cleaner Case.
  14. Install the intercooler (Turbo model). See INSTALLATION , Intercooler.
  15. Inspect the inhibitor switch. See INSPECTION , Inhibitor Switch.
