Transmission Case And Control Device

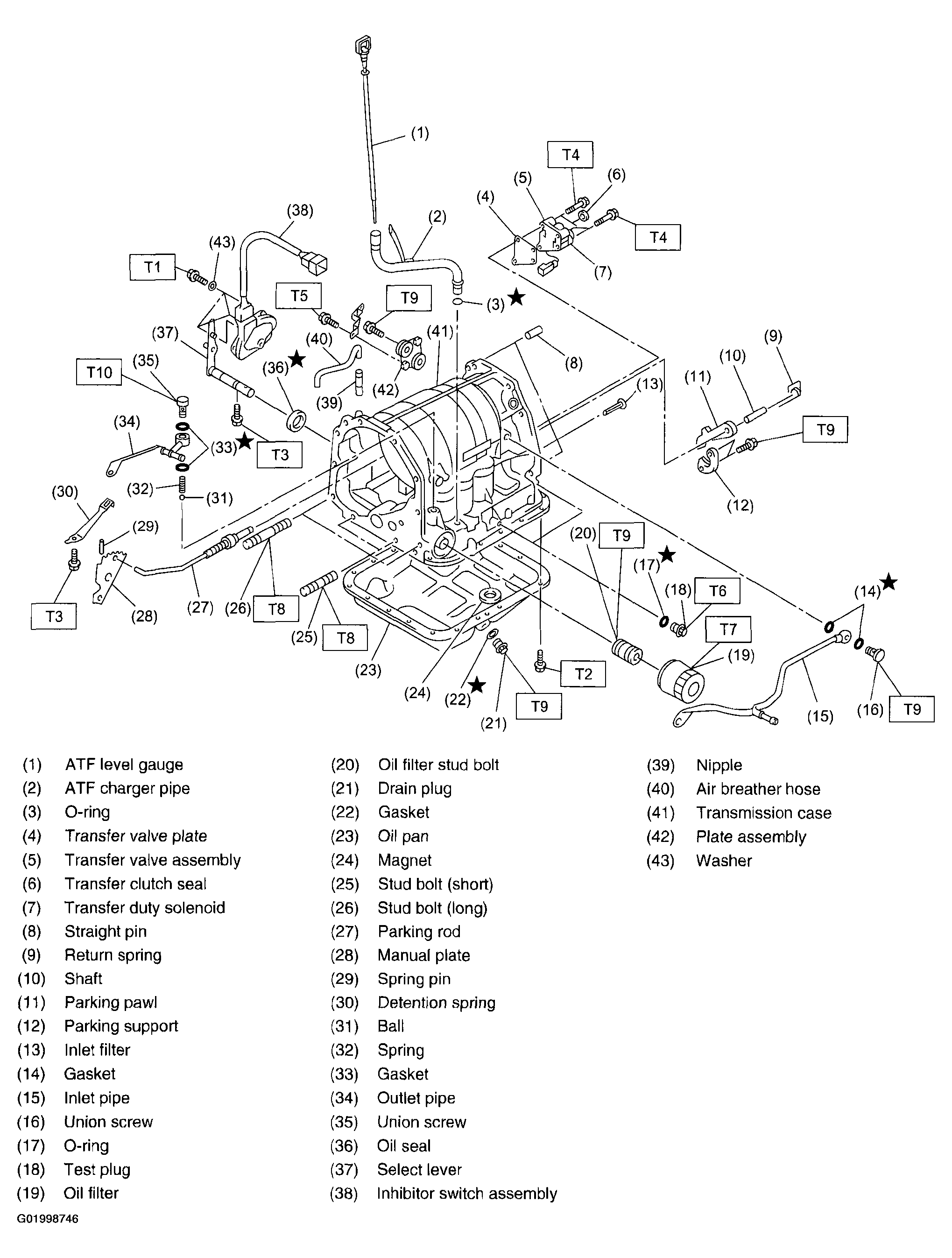

Fig 1: Identifying Transmission Case & Control Device Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

1. T1:  3.4 (0.35, 2.5)
2. T2:  5 (0.5, 3.6)
3. T3:  6 (0.6, 4)
4. T4:  8 (0.8, 6)
5. T5:  12 (1.2, 8.7)
6. T6:  13 (1.3, 10)
7. T7:  14 (1.4, 10)
8. T8:  18 (1.8, 13)
9. T9:  25 (2.6, 18)
10. T10:  44 (4.5, 32)
