Control Valve And Harness Routing

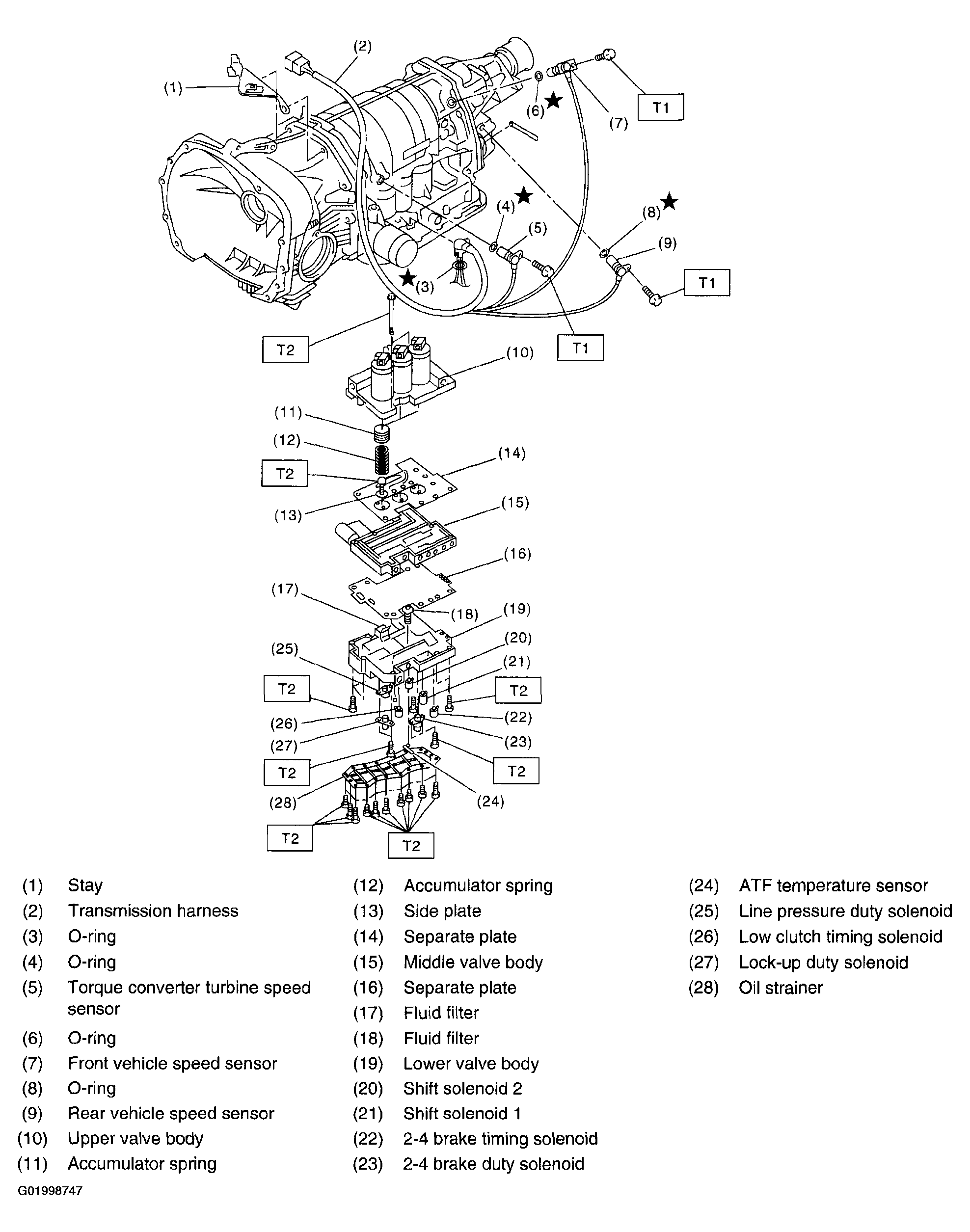

Fig 1: Identifying Control Valve & Harness Routing Components
G01998747Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

  1. T1:  7 (0.7, 5.1)
  2. T2:  8 (0.8, 5.8)
